Full Closed Type CNC Gantry Machining Center

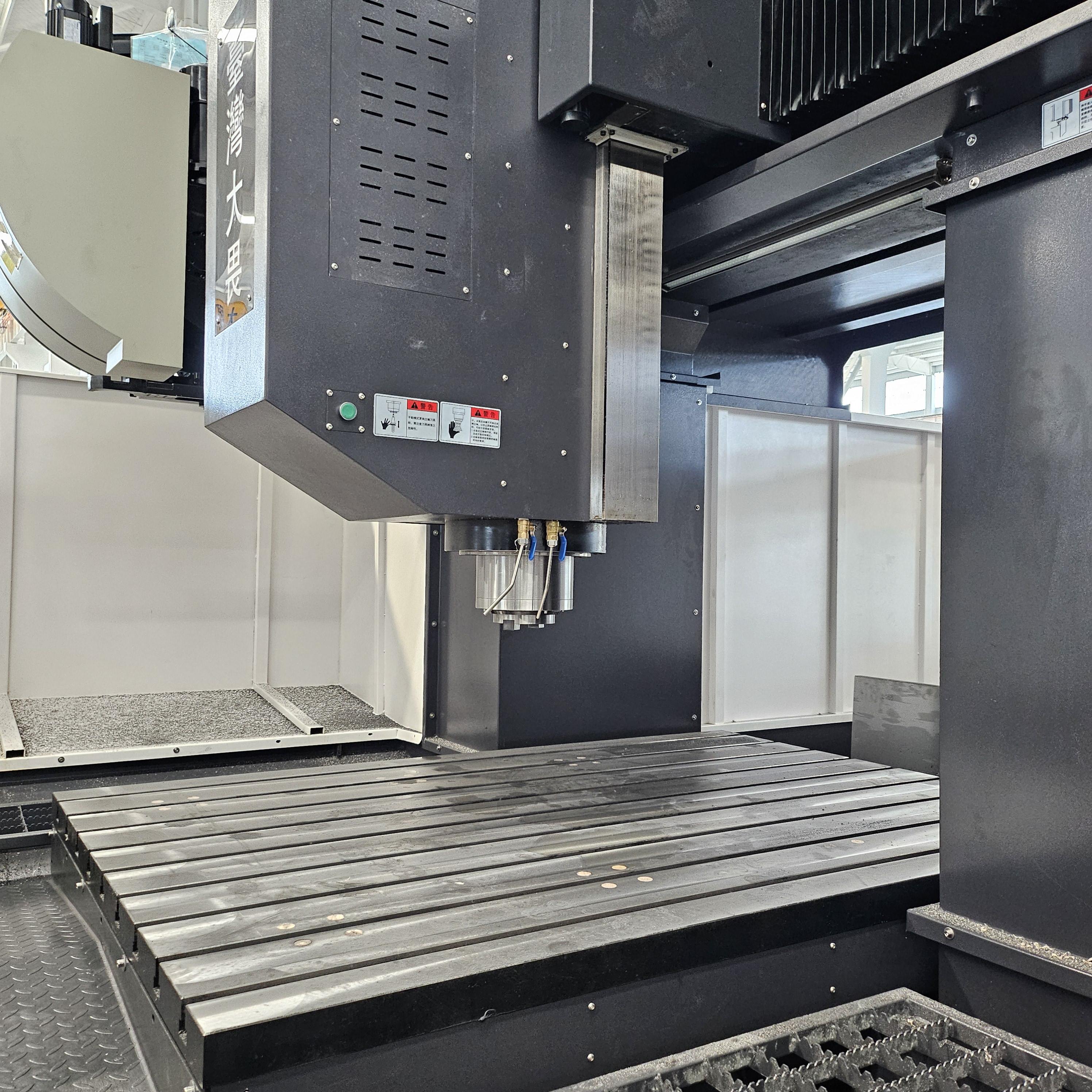

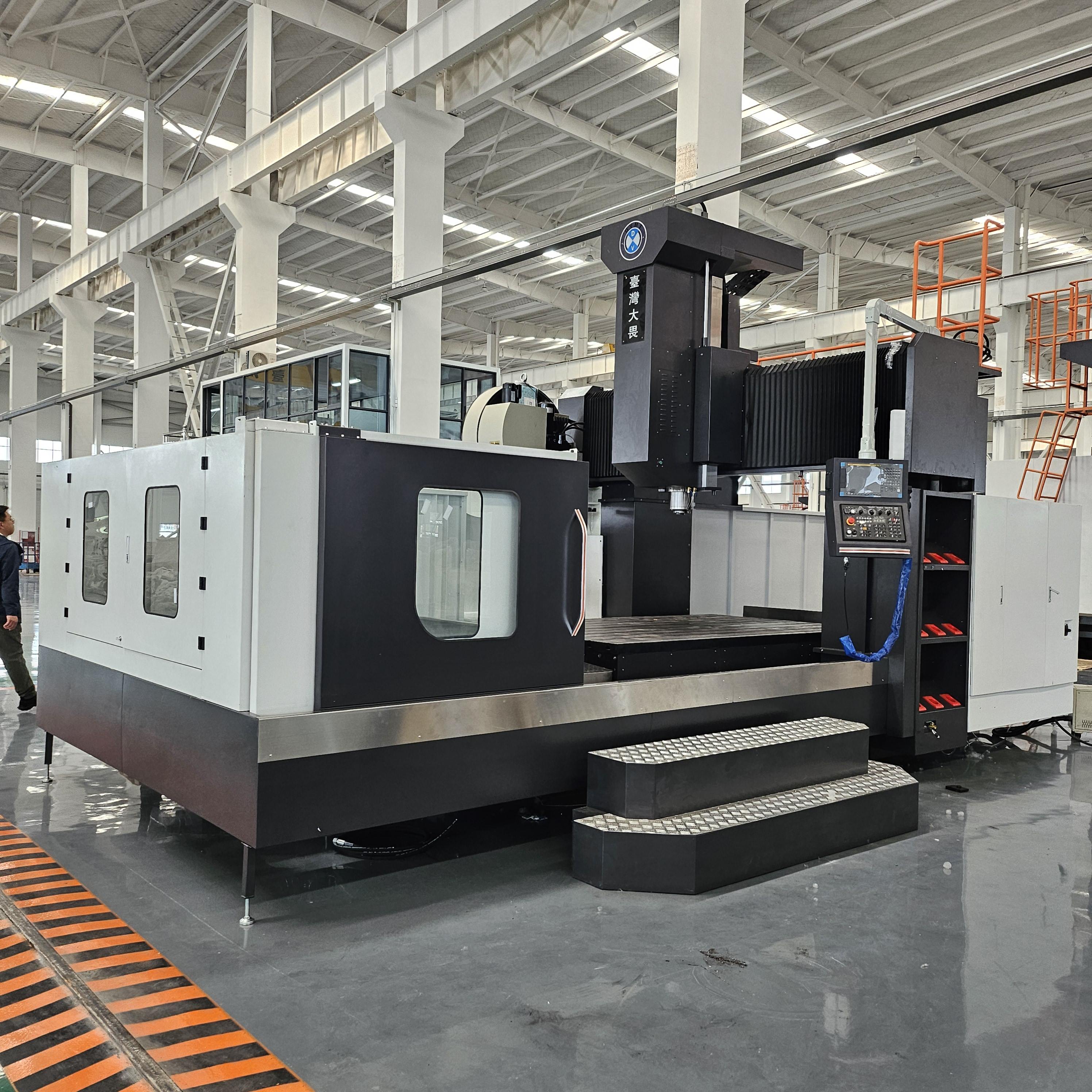

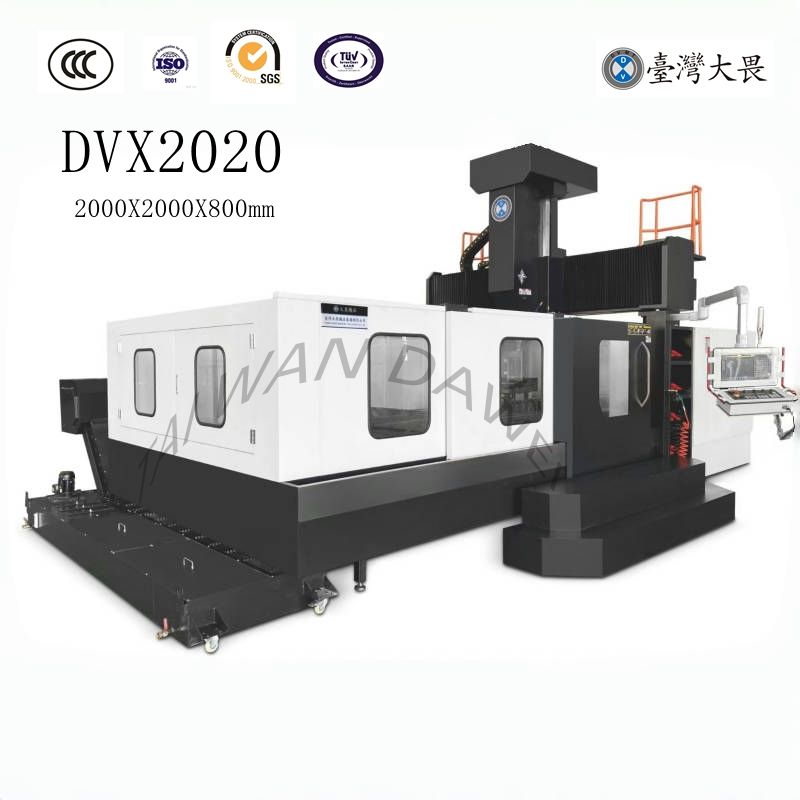

DVX2020 CNC Gantry Machining Center

Machine ModelDVX-2020
X/Y Axis Stroke (mm)2000 / 2000
Z Axis Stroke (mm)800
Distance between column (Longmen width) (mm)2000
SpindleBT50 / HSK63A (optional)
RPM6000 / 18000
Spindle Motor Power (kW)18.5
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE
Download Catalogue Contact Us

Efficient CNC gantry system for precision machining.

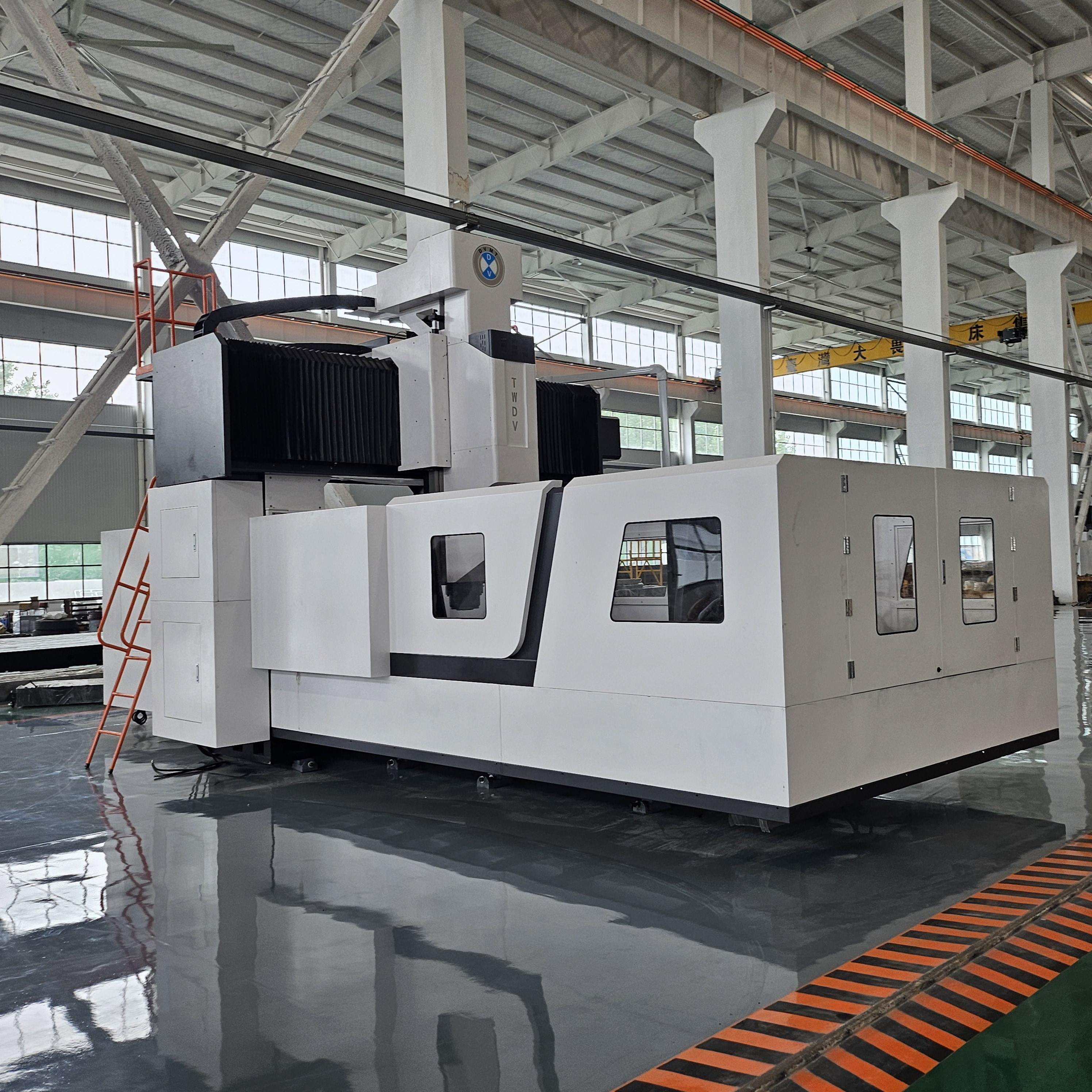

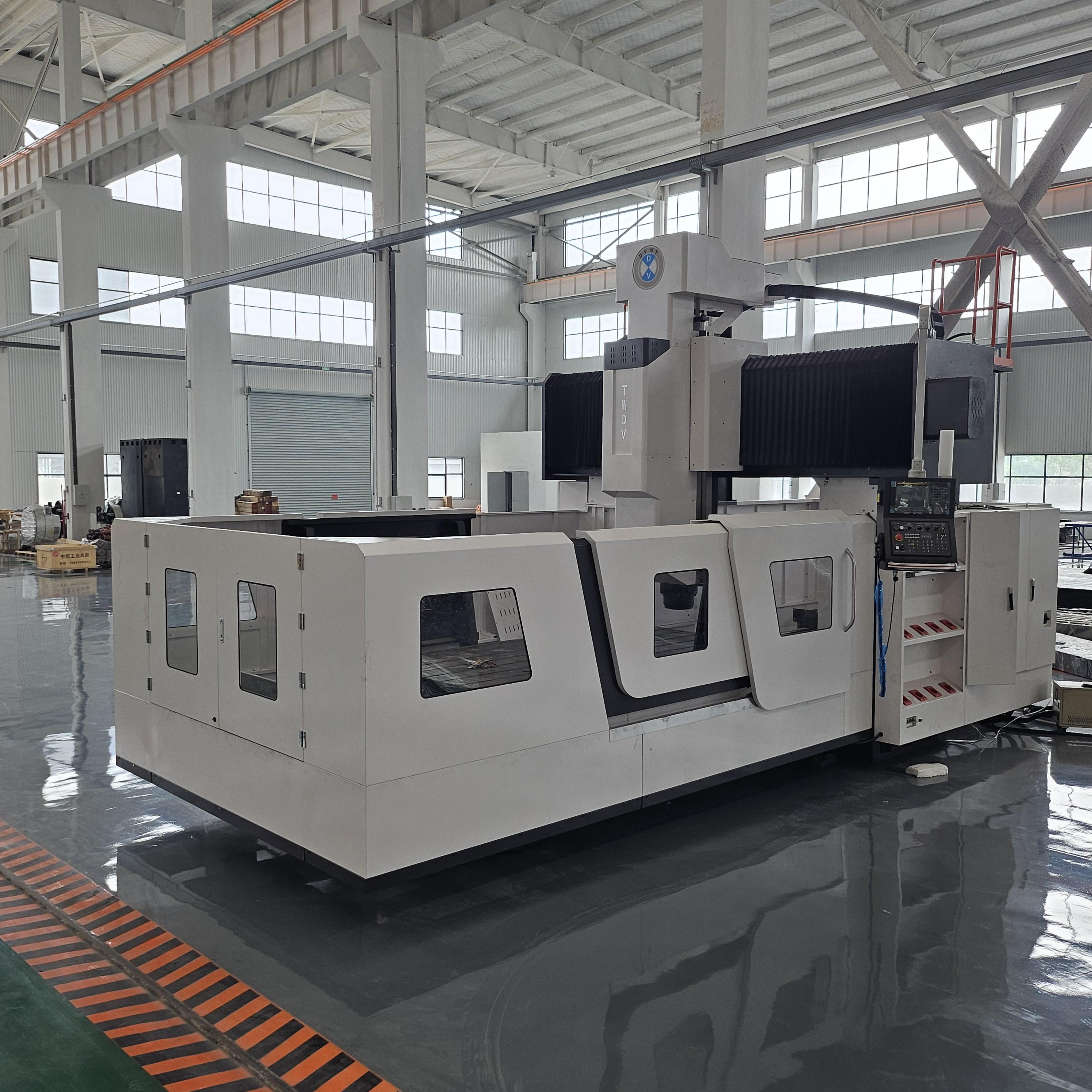

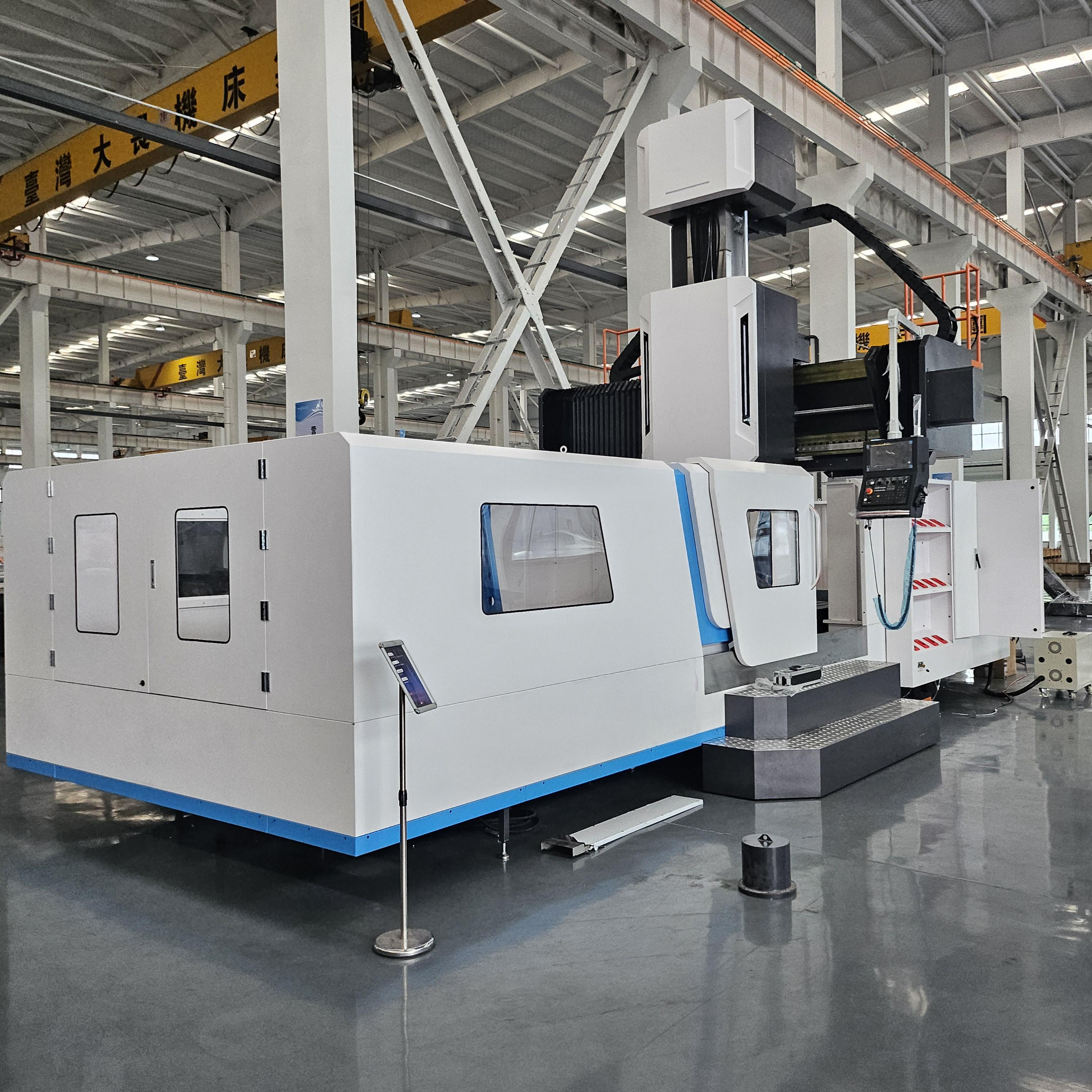

DVX2515 CNC Gantry Machining Center

Machine ModelDVX-2515
X/Y Axis Stroke (mm)2500 / 1500
Z Axis Stroke (mm)800
Distance between column (Longmen width) (mm)1500
SpindleBT50 / HSK63A (optional)
RPM6000 / 18000
Spindle Motor Power (kW)18.5
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE
Download Catalogue Contact Us

High precision CNC gantry machining center designed for industrial applications.

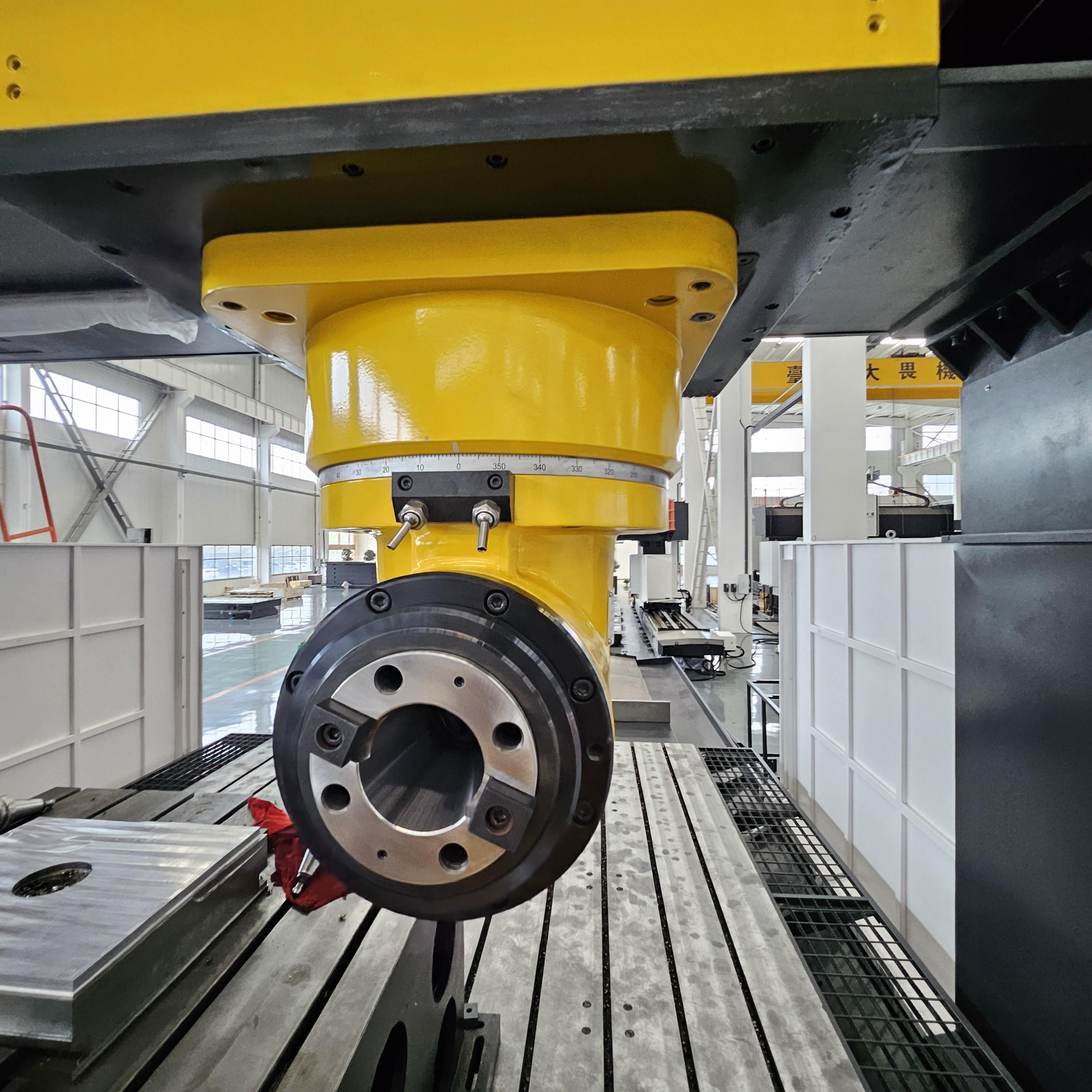

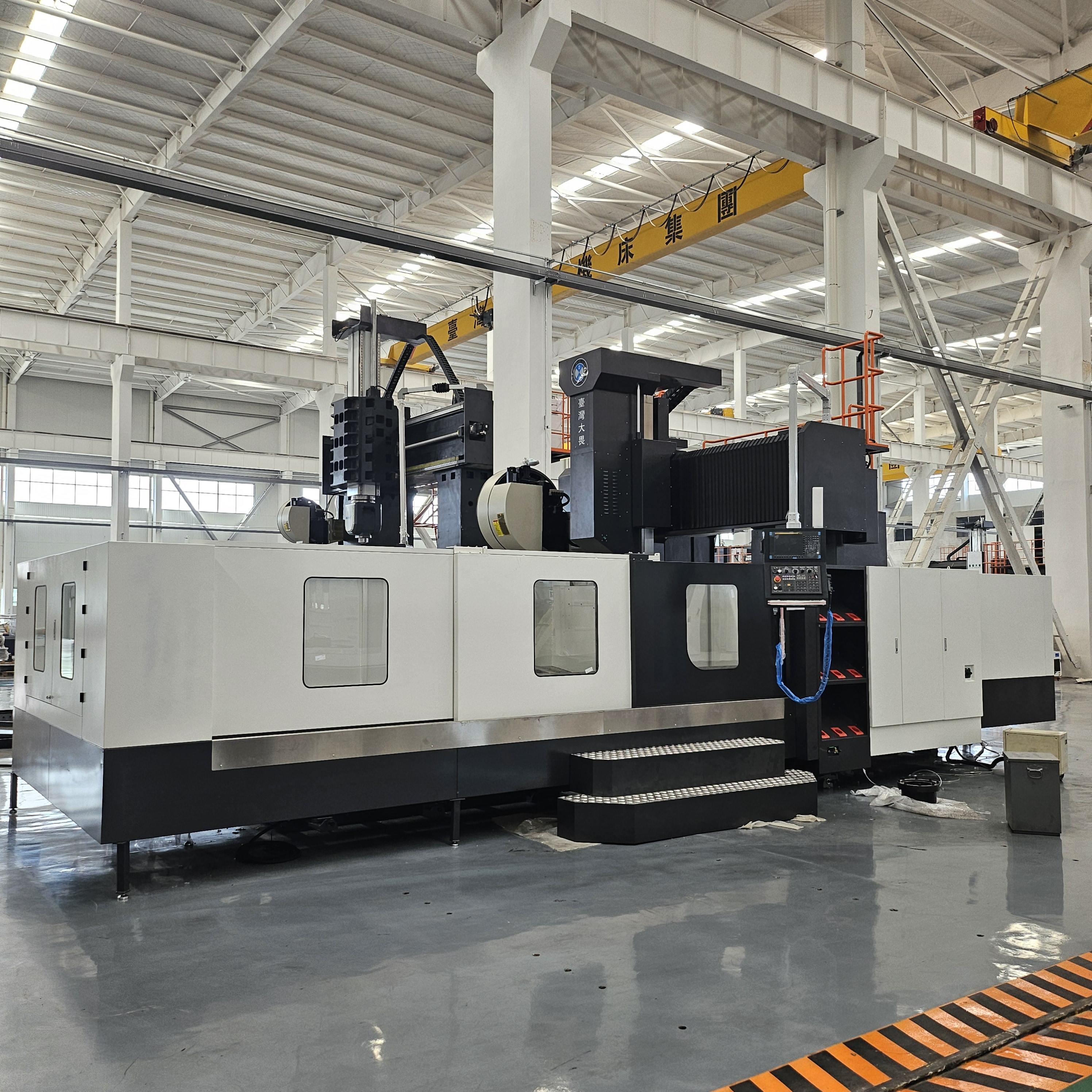

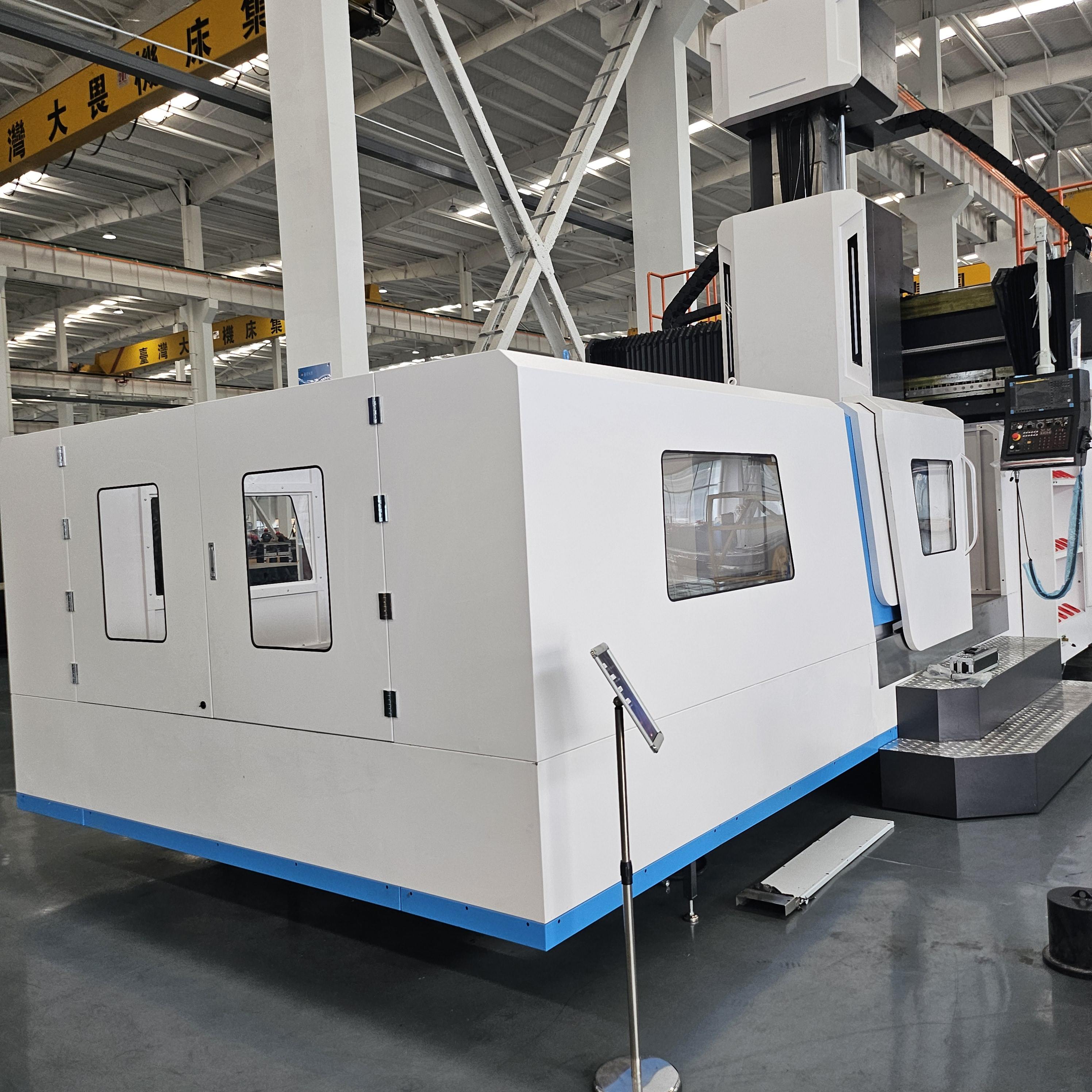

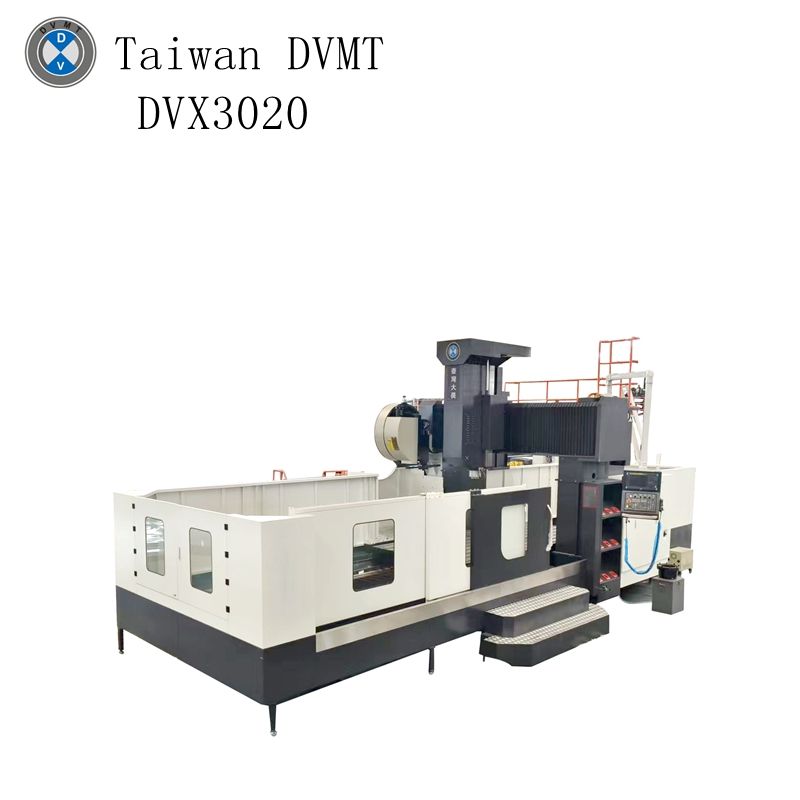

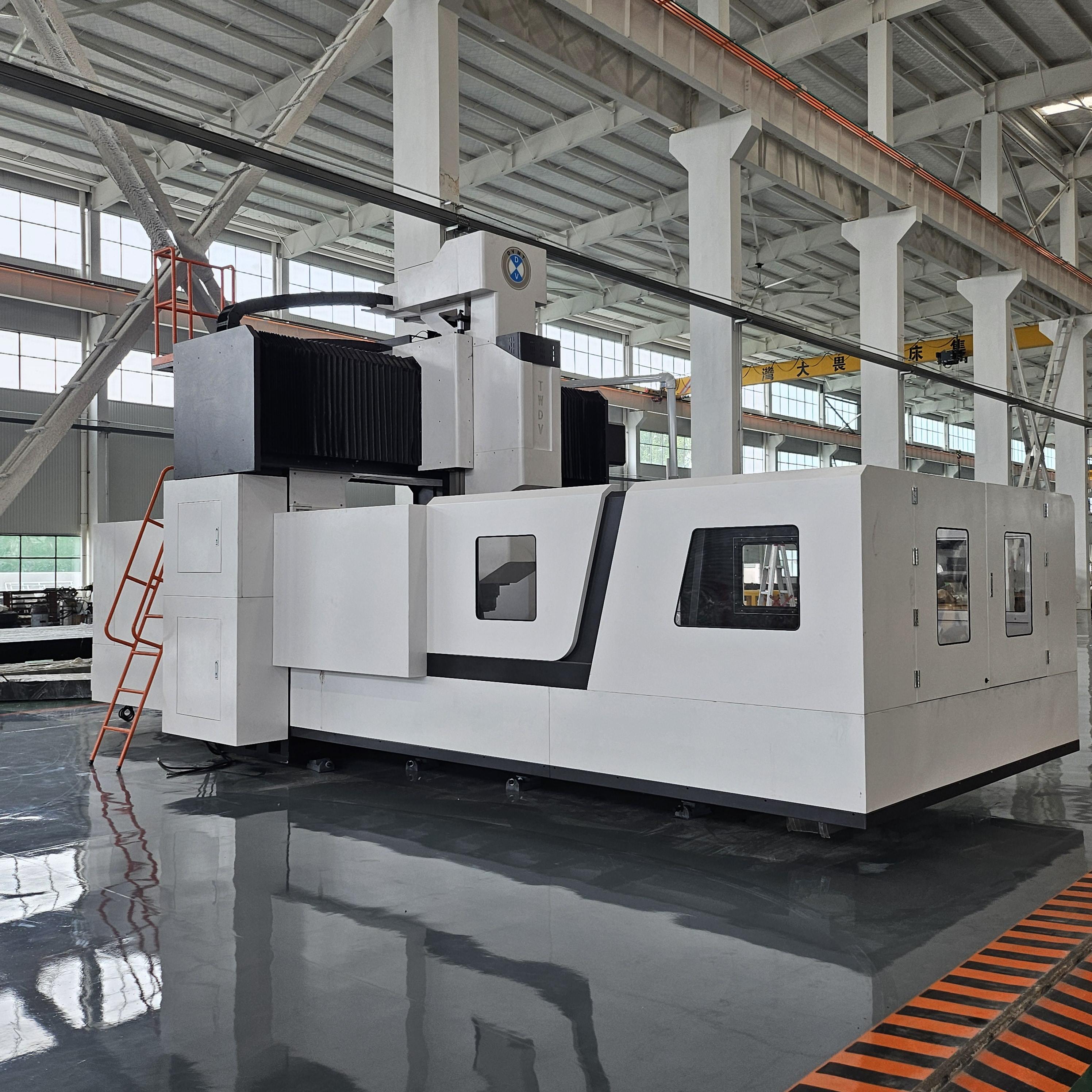

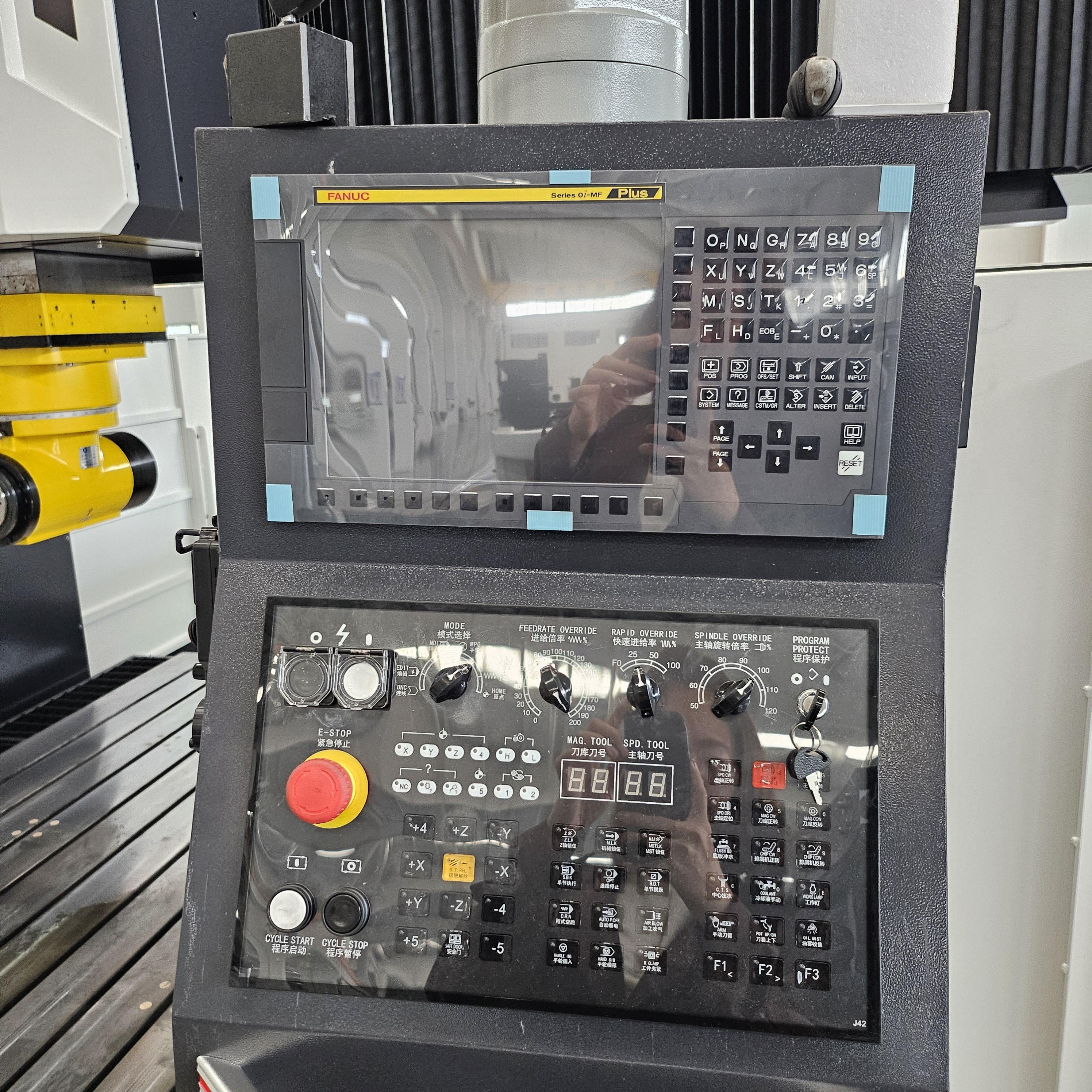

DVX3020 CNC Gantry Machining Center

Machine ModelDVX-3020
X/Y Axis Stroke (mm)3000 / 2000
Z Axis Stroke (mm)800
Distance between column (Longmen width) (mm)2000
SpindleBT50 / HSK63A (optional)
RPM6000 / 18000
Spindle Motor Power (kW)18.5
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE
Download Catalogue Contact Us

Heavy-duty gantry machining center with high stability.

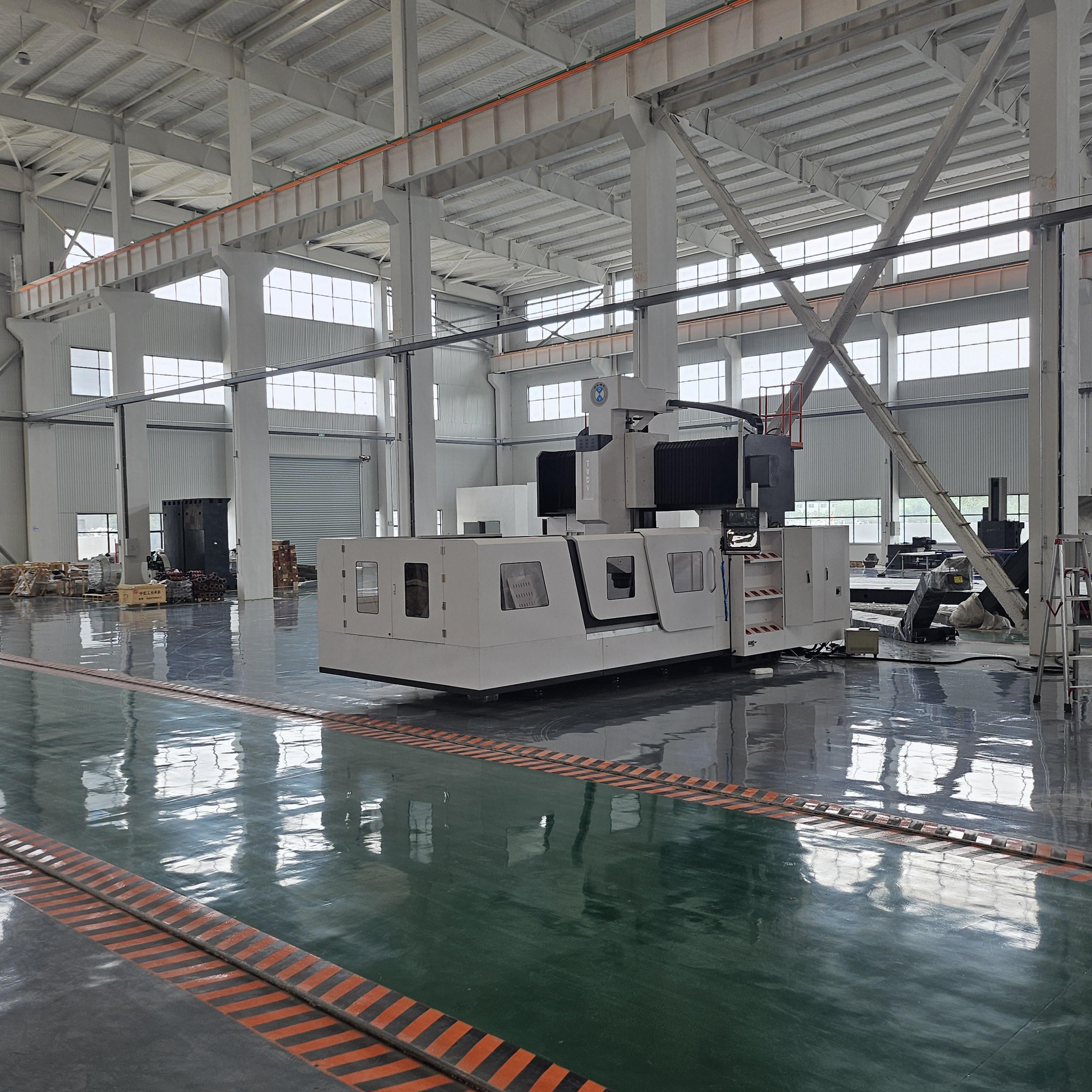

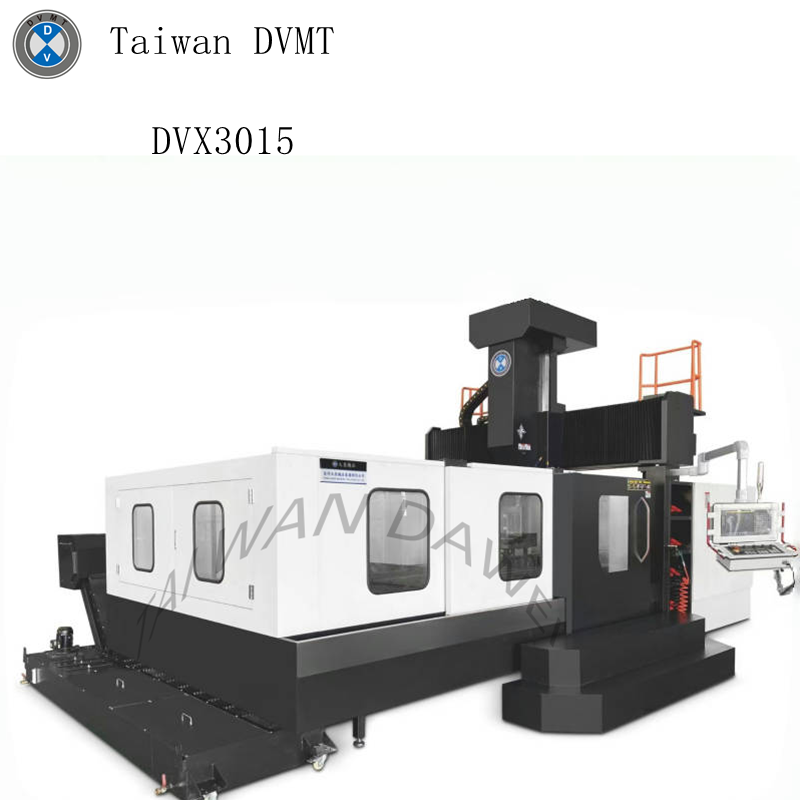

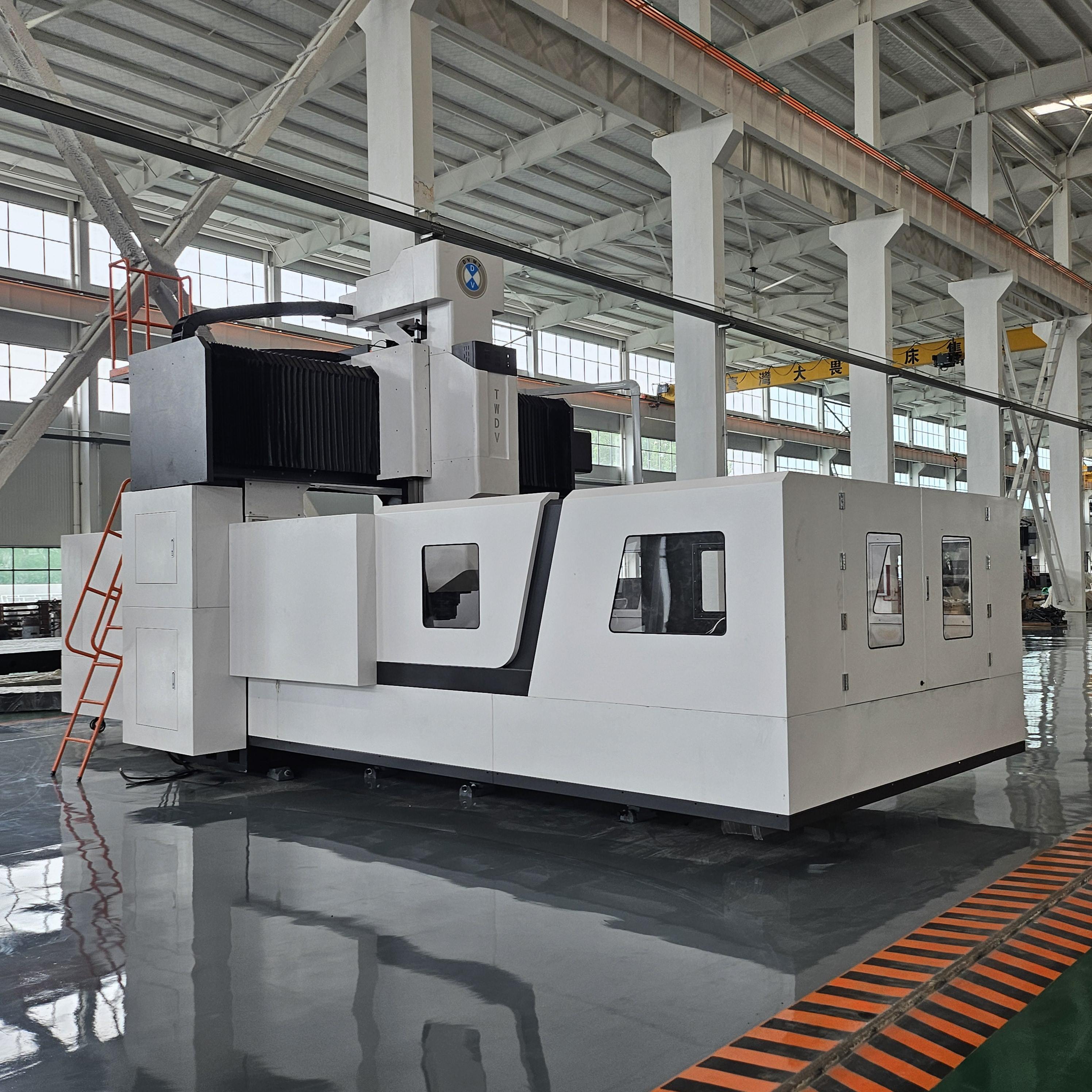

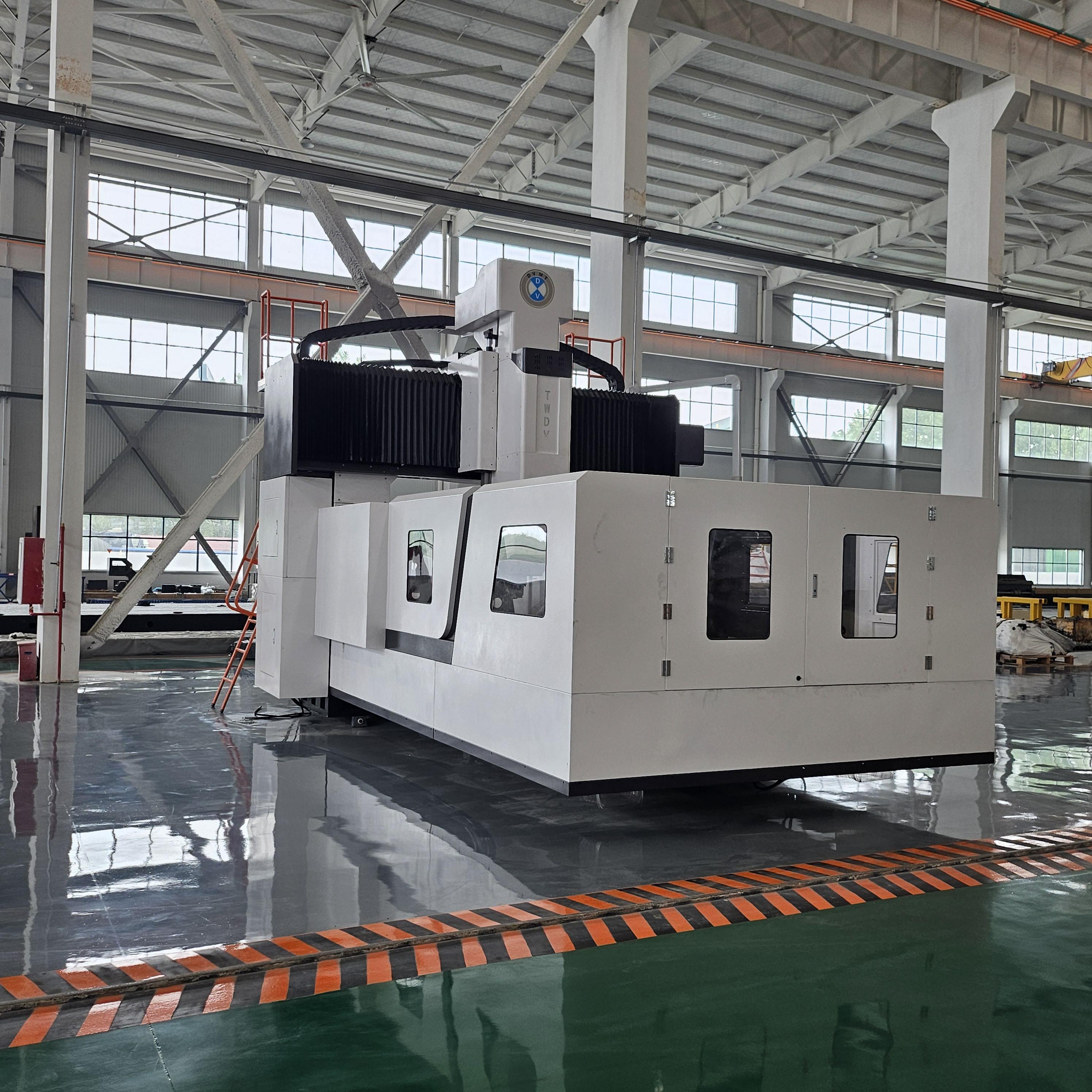

DVX3015 CNC Gantry Machining Center

Machine ModelDVX-3015
X/Y Axis Stroke (mm)3000 / 1500
Z Axis Stroke (mm)800
Distance between column (Longmen width) (mm)1500
SpindleBT50 / HSK63A (optional)
RPM6000 / 18000
Spindle Motor Power (kW)18.5
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE
Download Catalogue Contact Us

Reliable gantry machining center for industrial use.

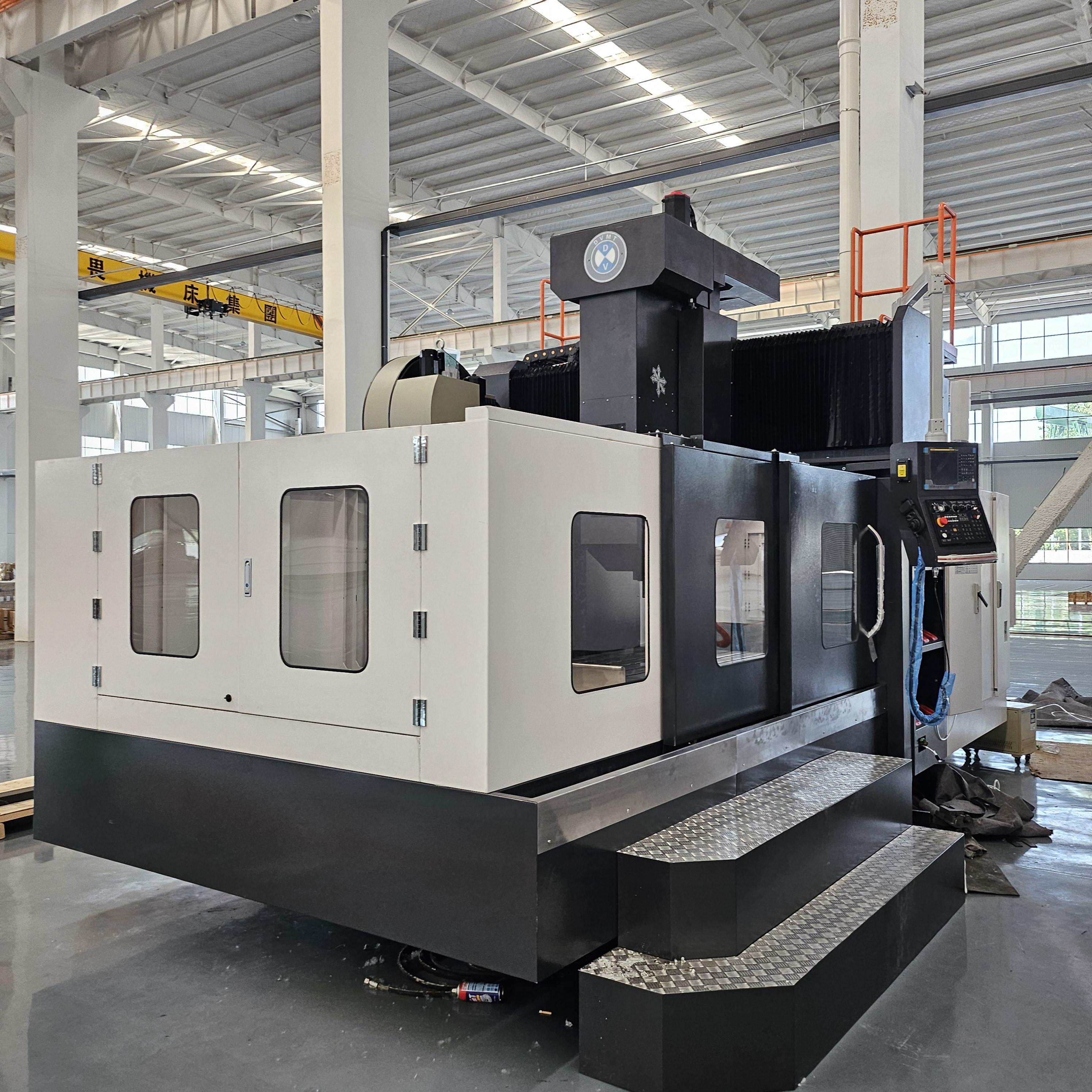

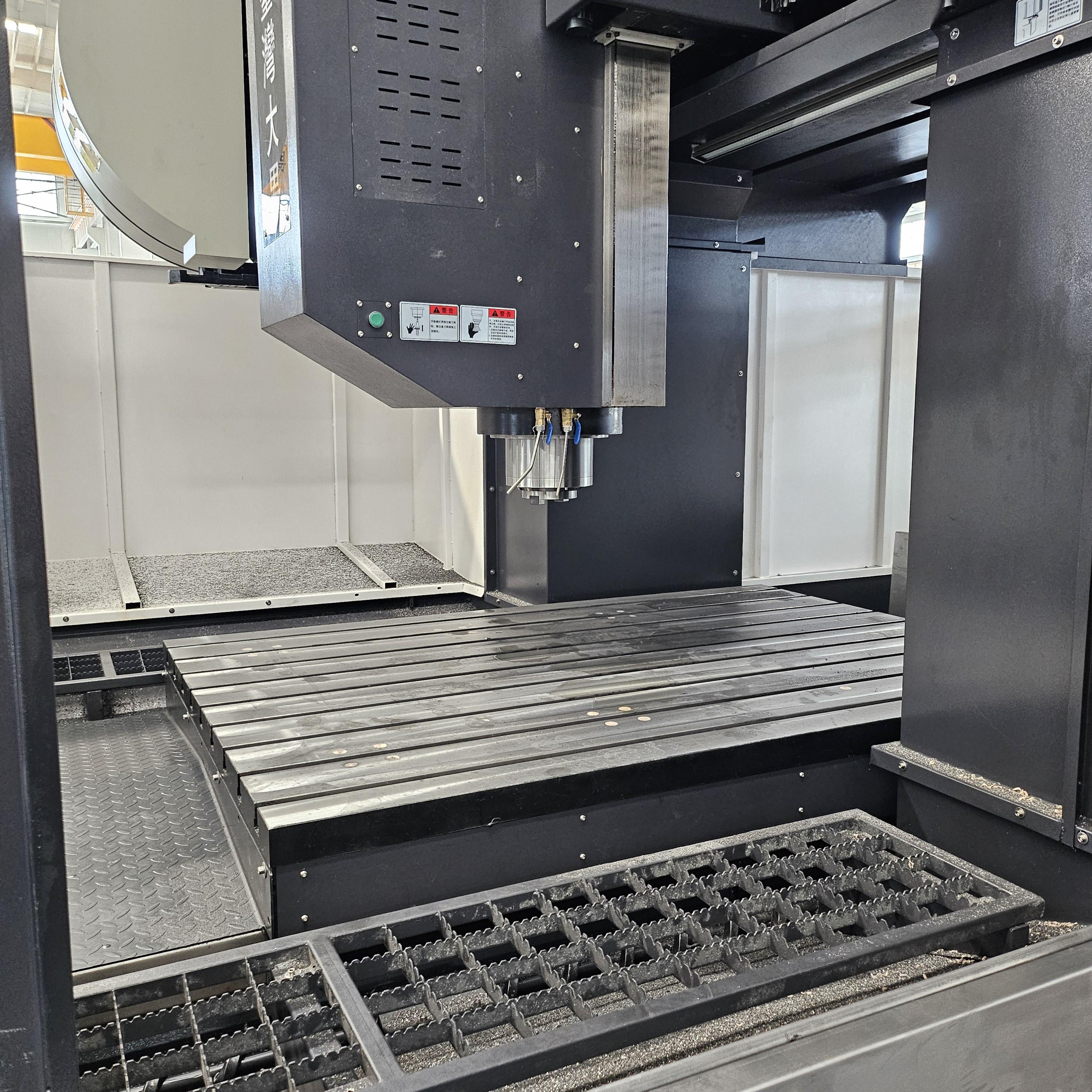

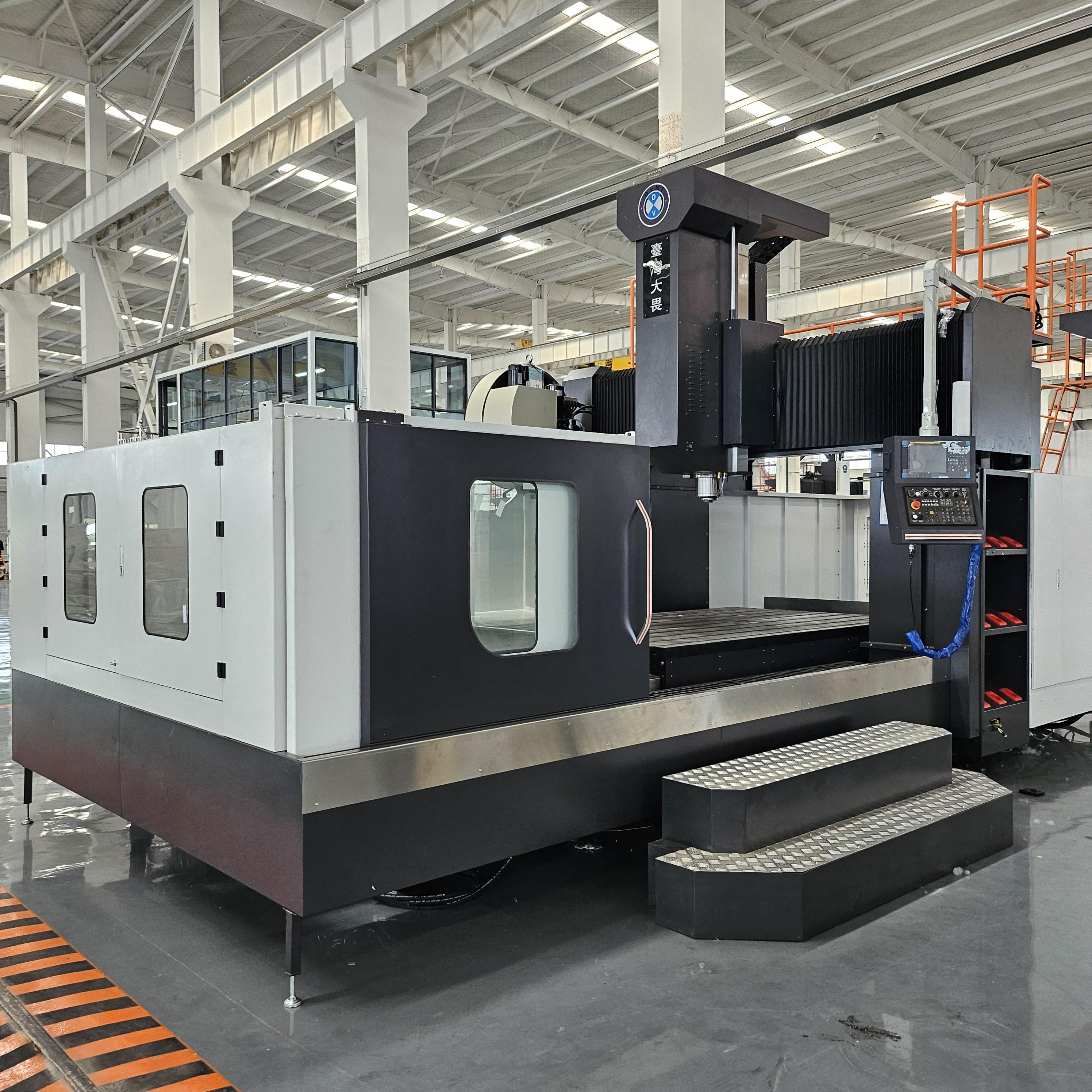

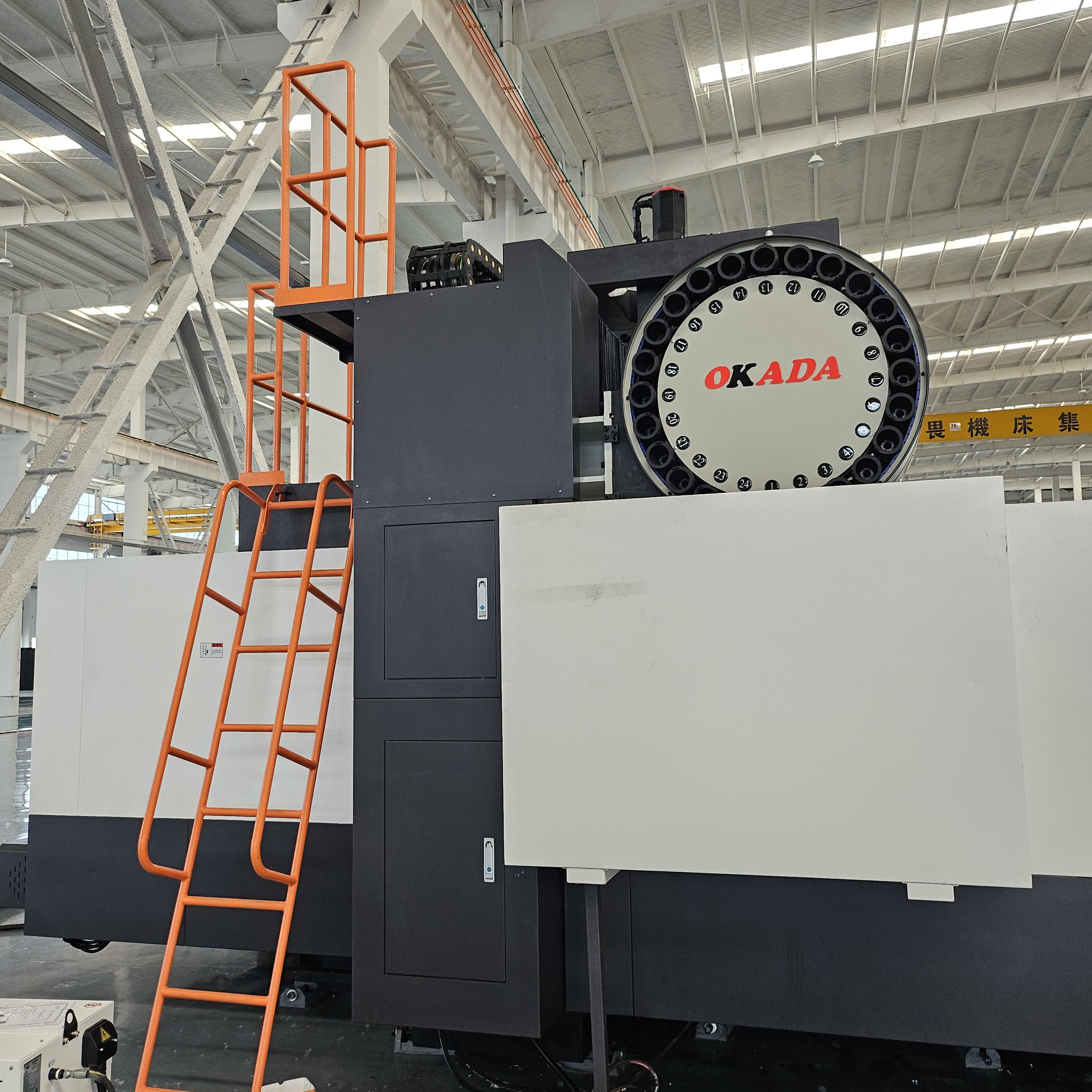

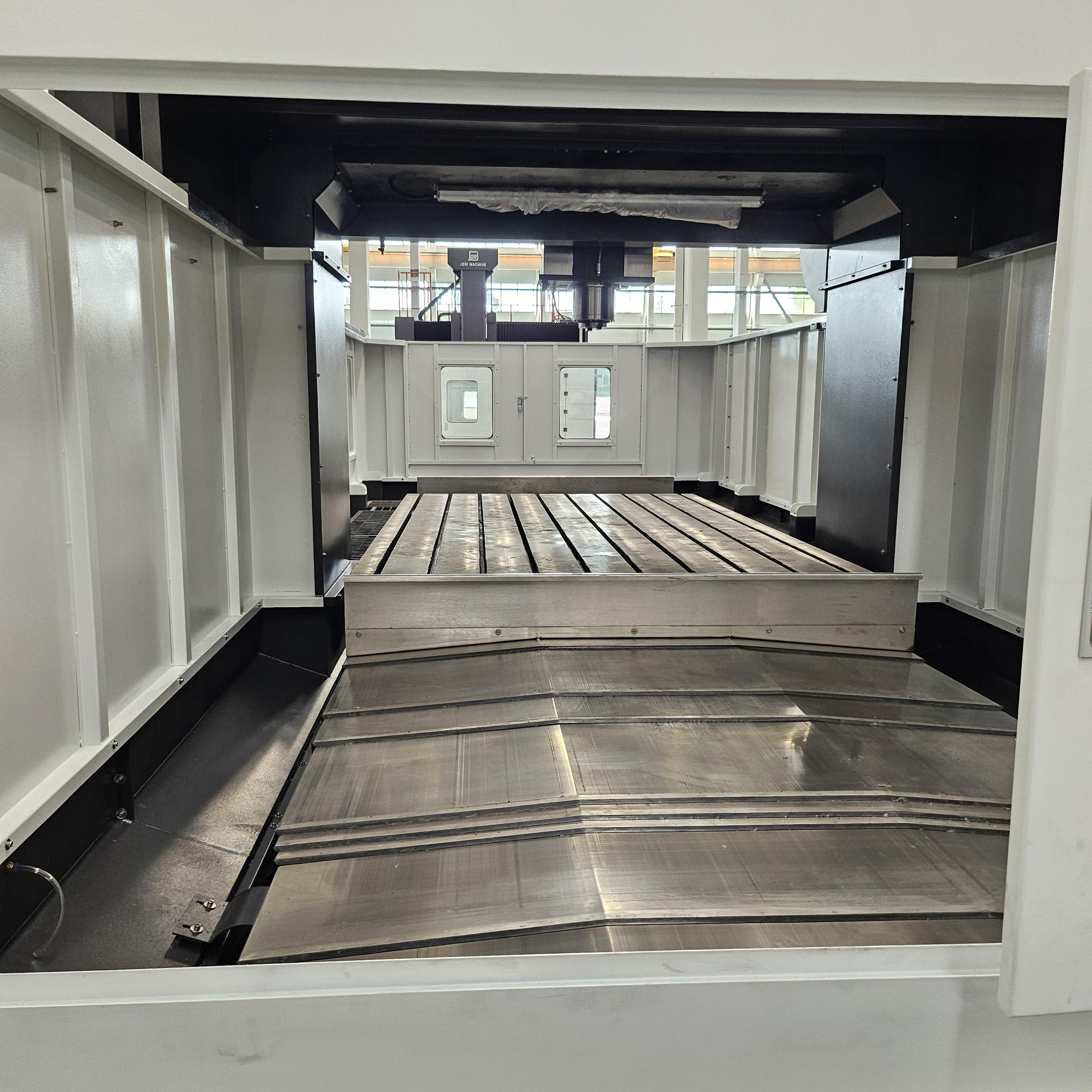

DVX2520 CNC Gantry Machining Center

Machine ModelDVX-2520
X/Y Axis Stroke (mm)2500 / 2000
Z Axis Stroke (mm)800
Distance between column (Longmen width) (mm)2000
SpindleBT50 / HSK63A (optional)
RPM6000 / 18000
Spindle Motor Power (kW)18.5
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE
Download Catalogue Contact Us

Advanced CNC solution for large-scale machining.

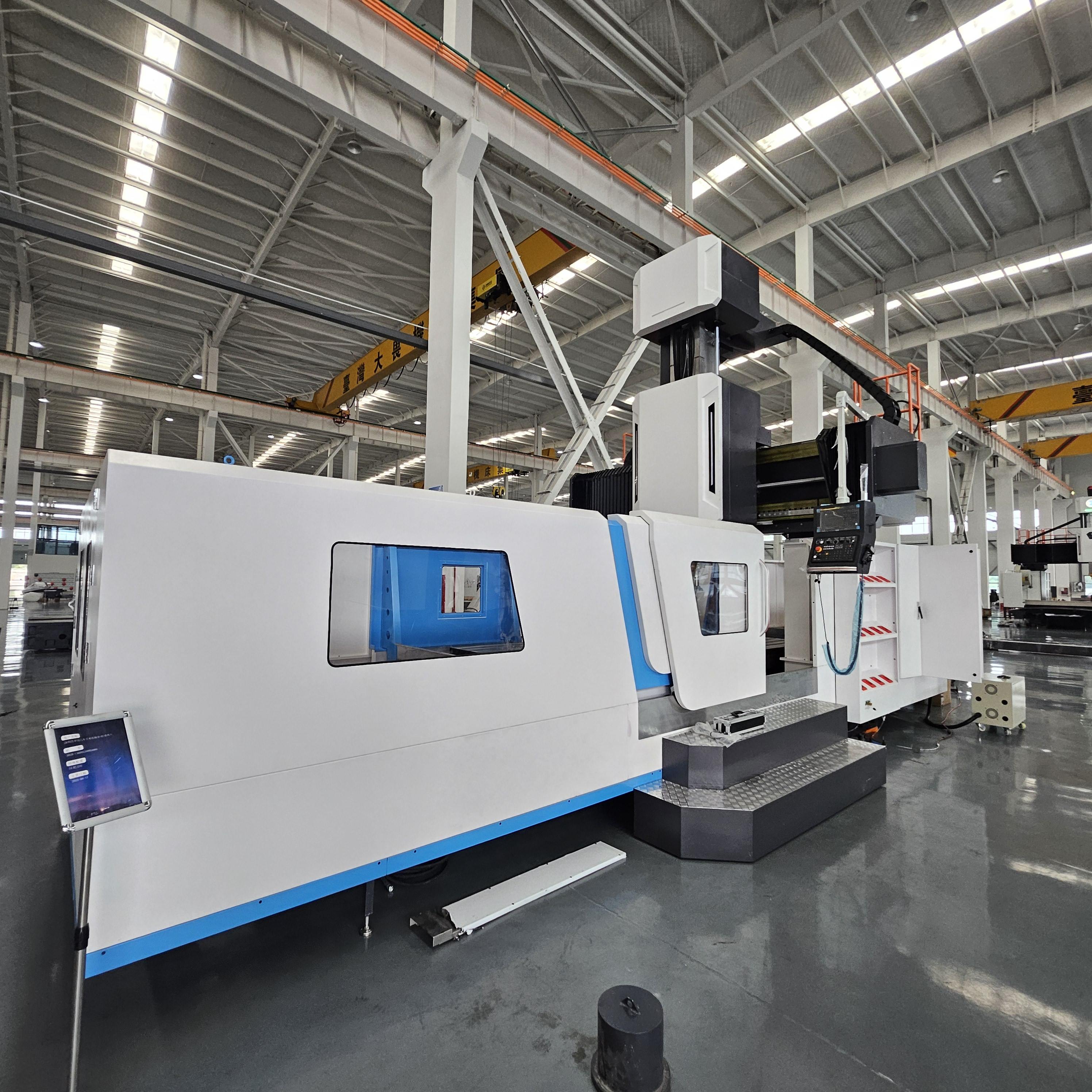

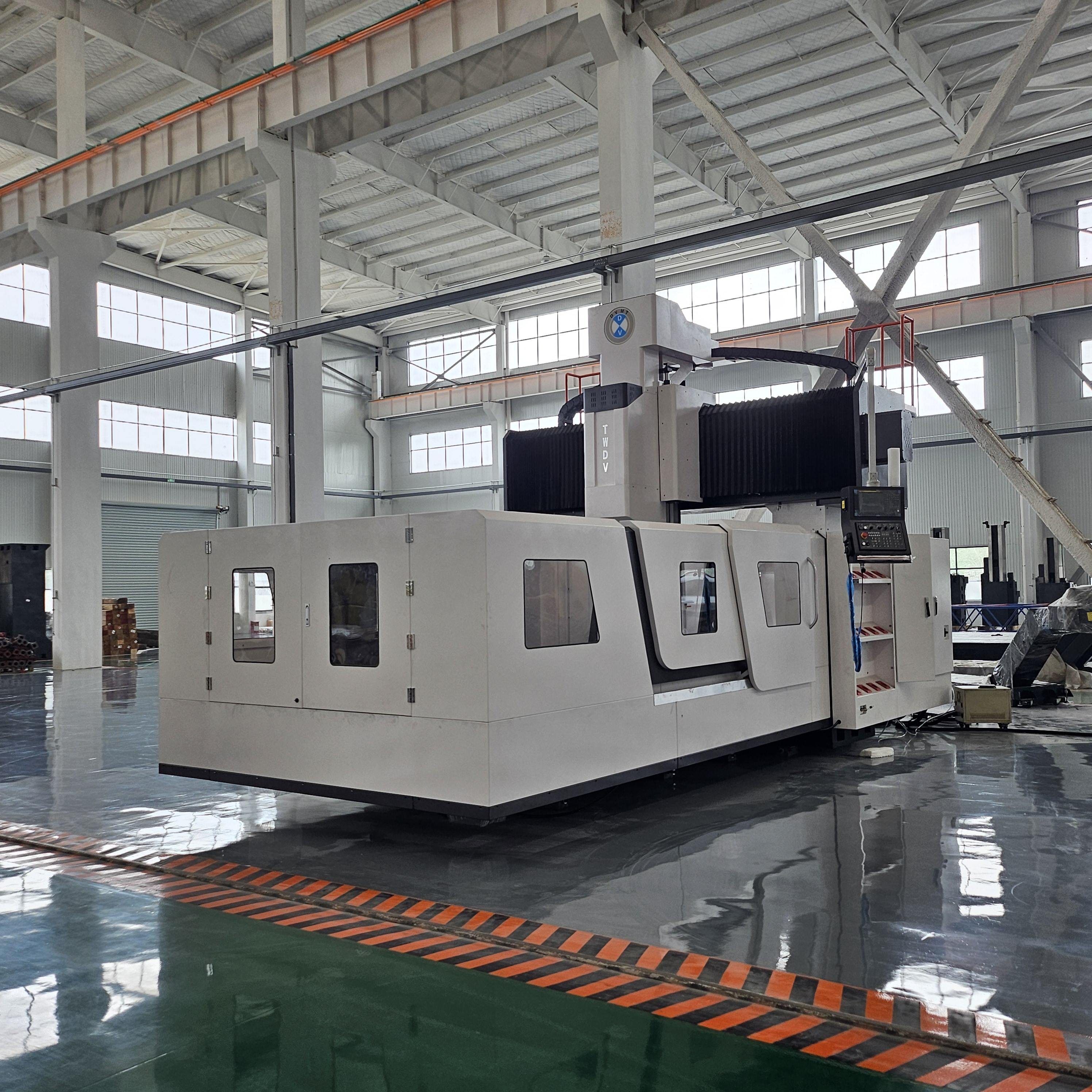

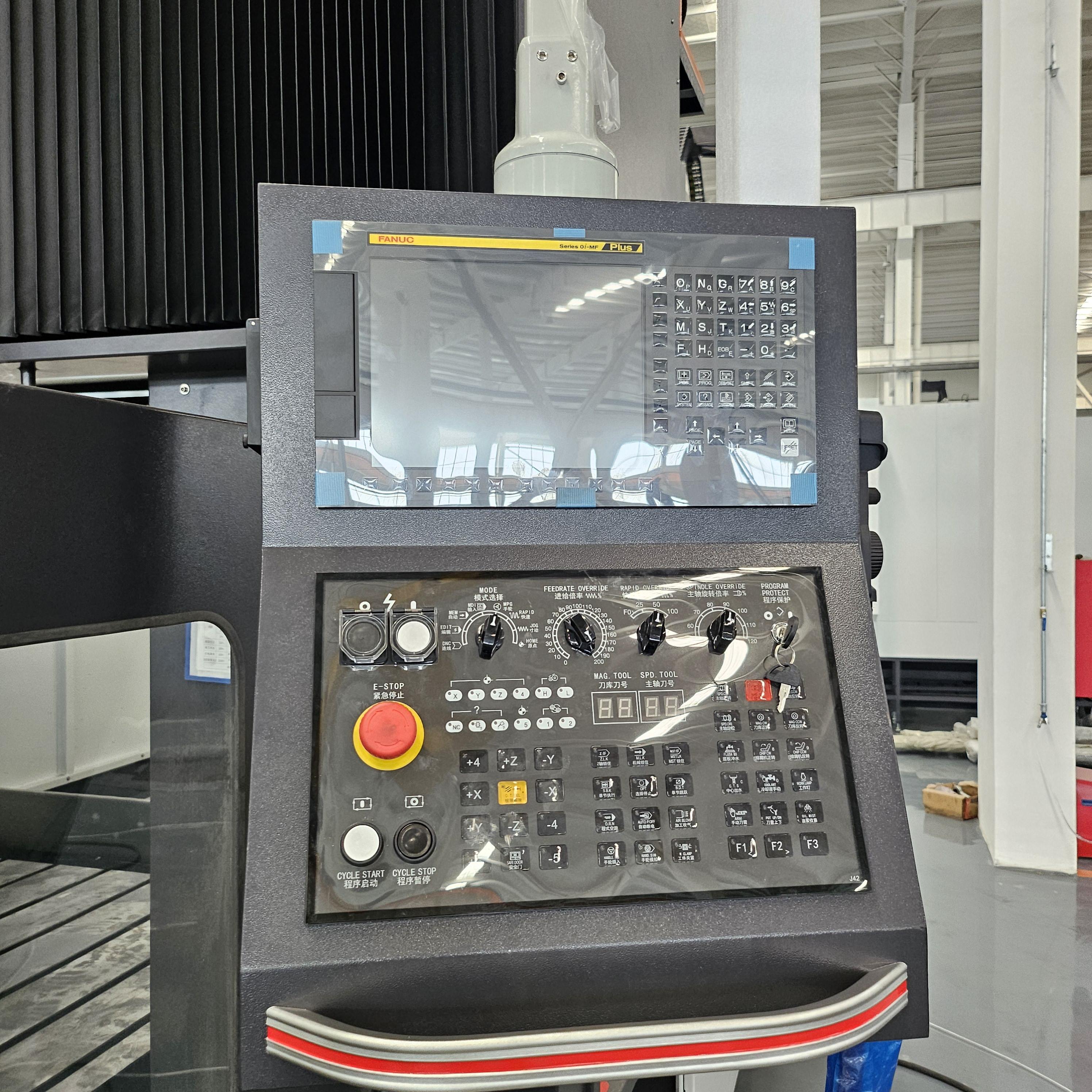

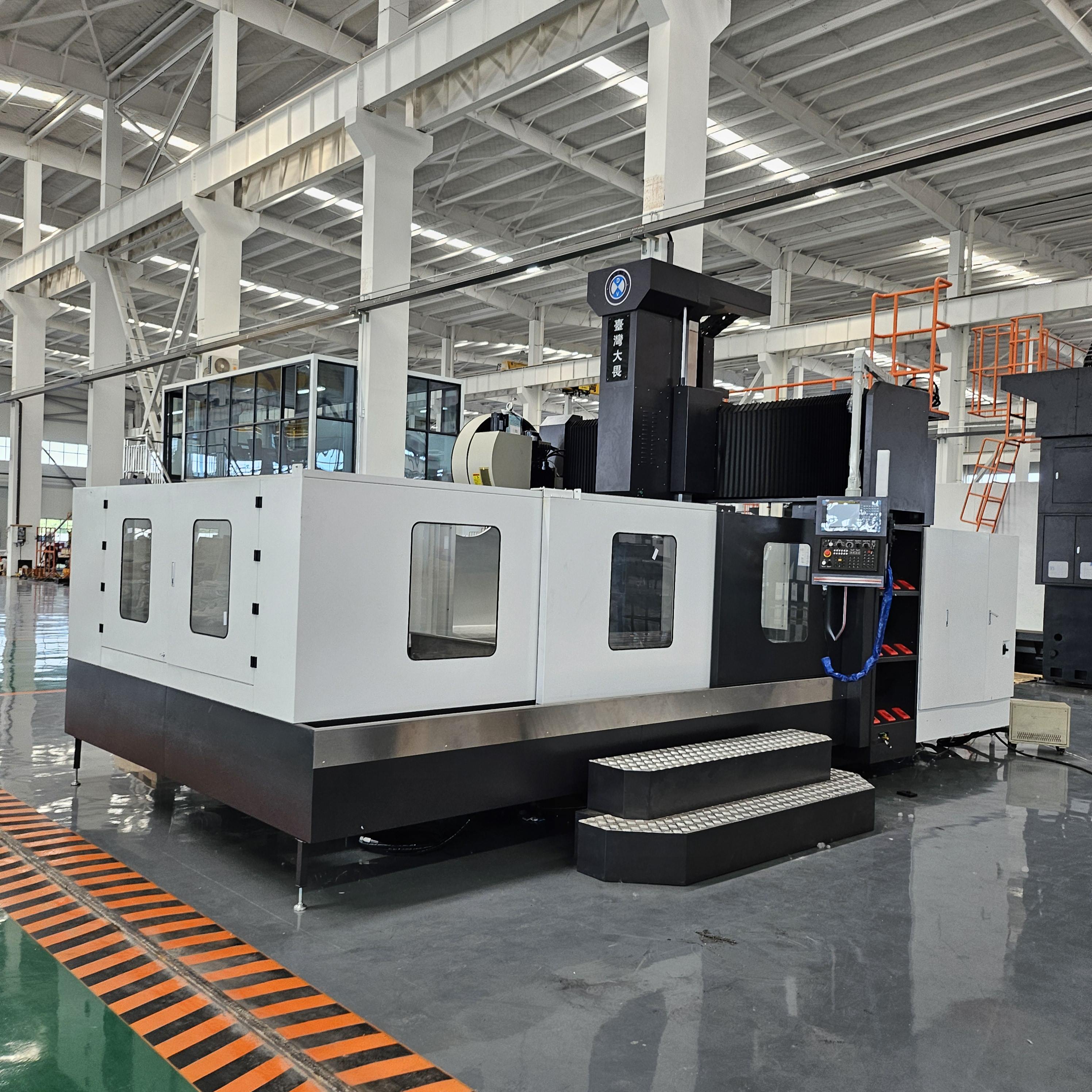

DVX4020 CNC Gantry Machining Center

Machine ModelDVX-4020
X/Y Axis Stroke (mm)4000 / 2000
Z Axis Stroke (mm)800
Distance between column (Longmen width) (mm)2000
SpindleBT50 / HSK63A (optional)
RPM6000 / 18000
Spindle Motor Power (kW)18.5
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE
Download Catalogue Contact Us

Heavy-duty machining center built for large components.

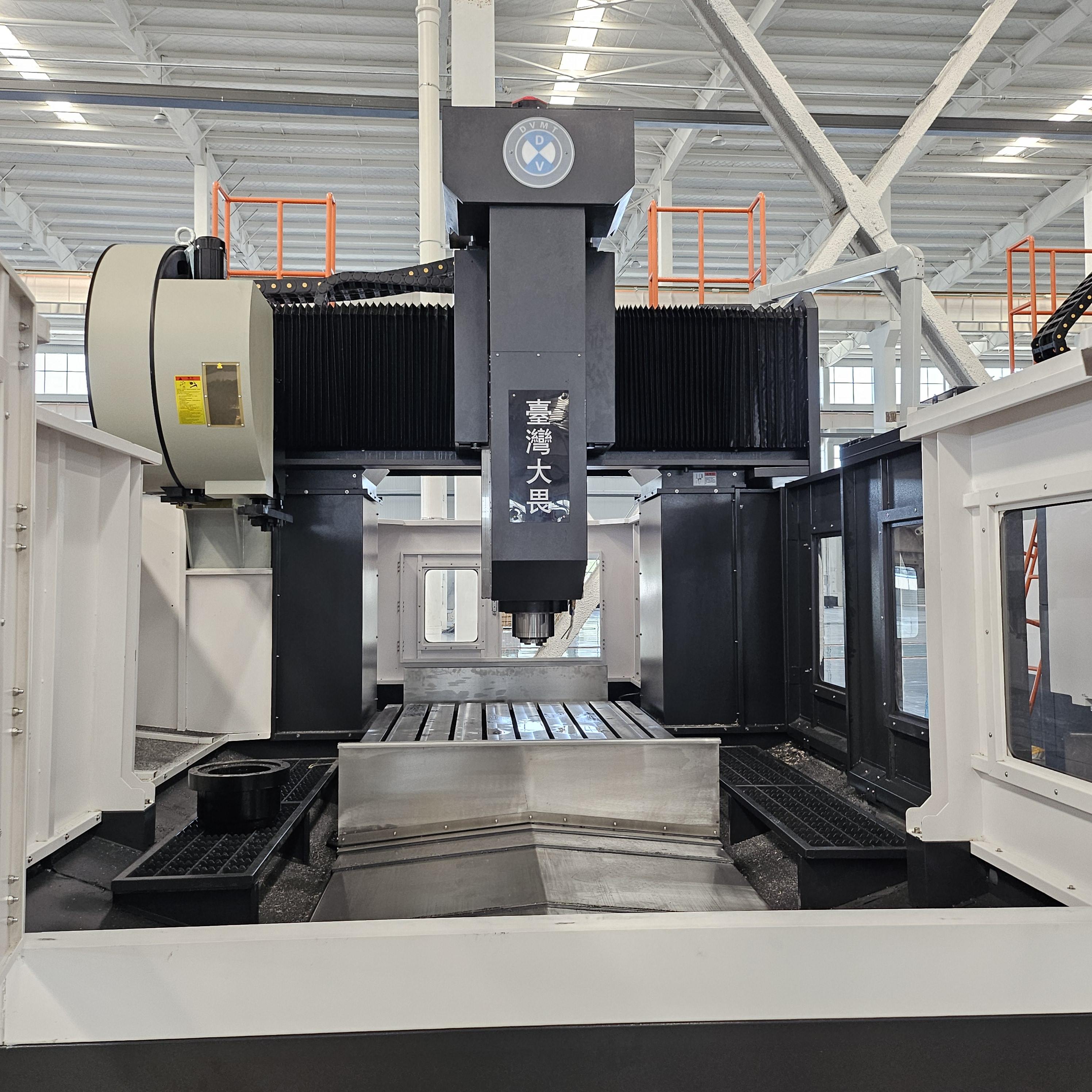

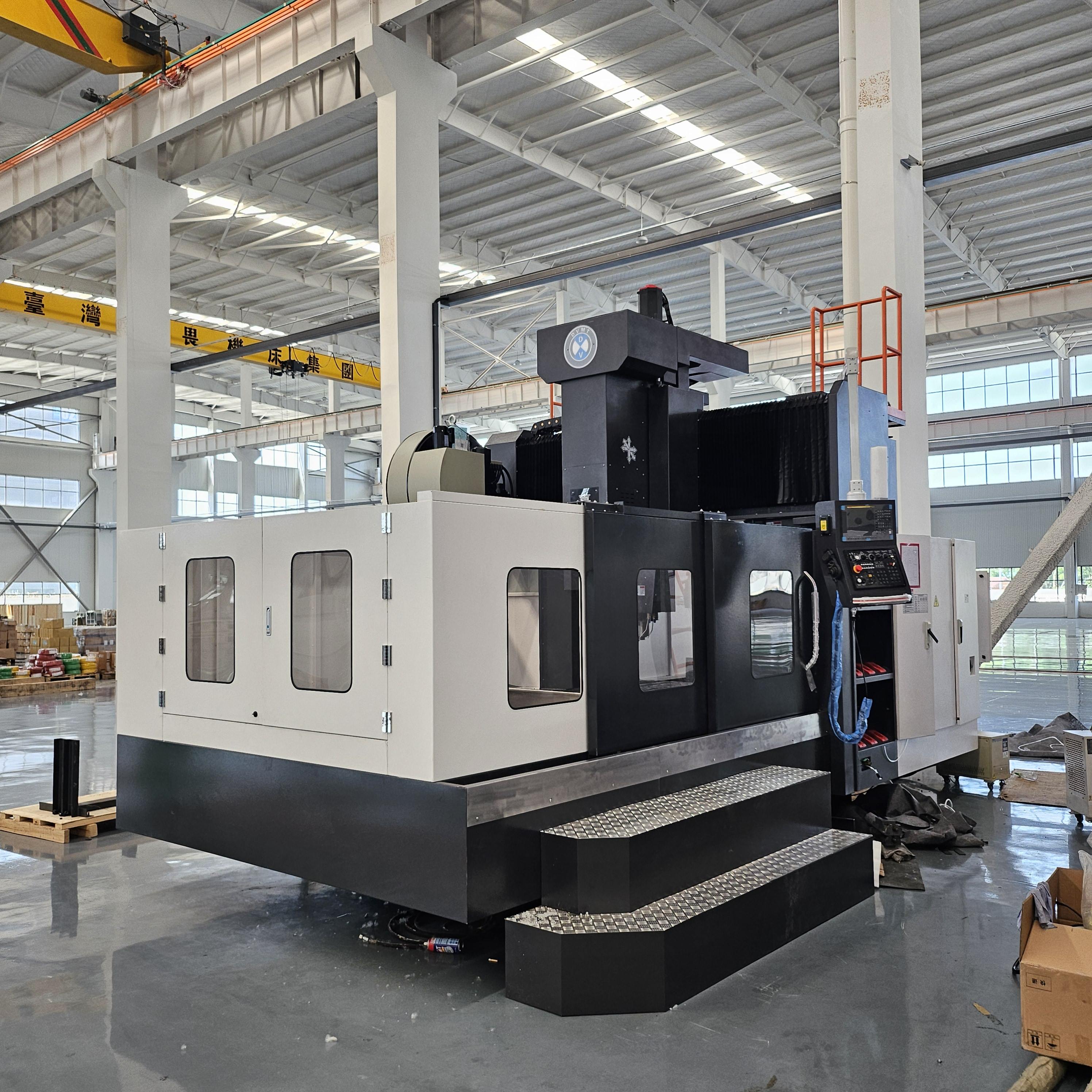

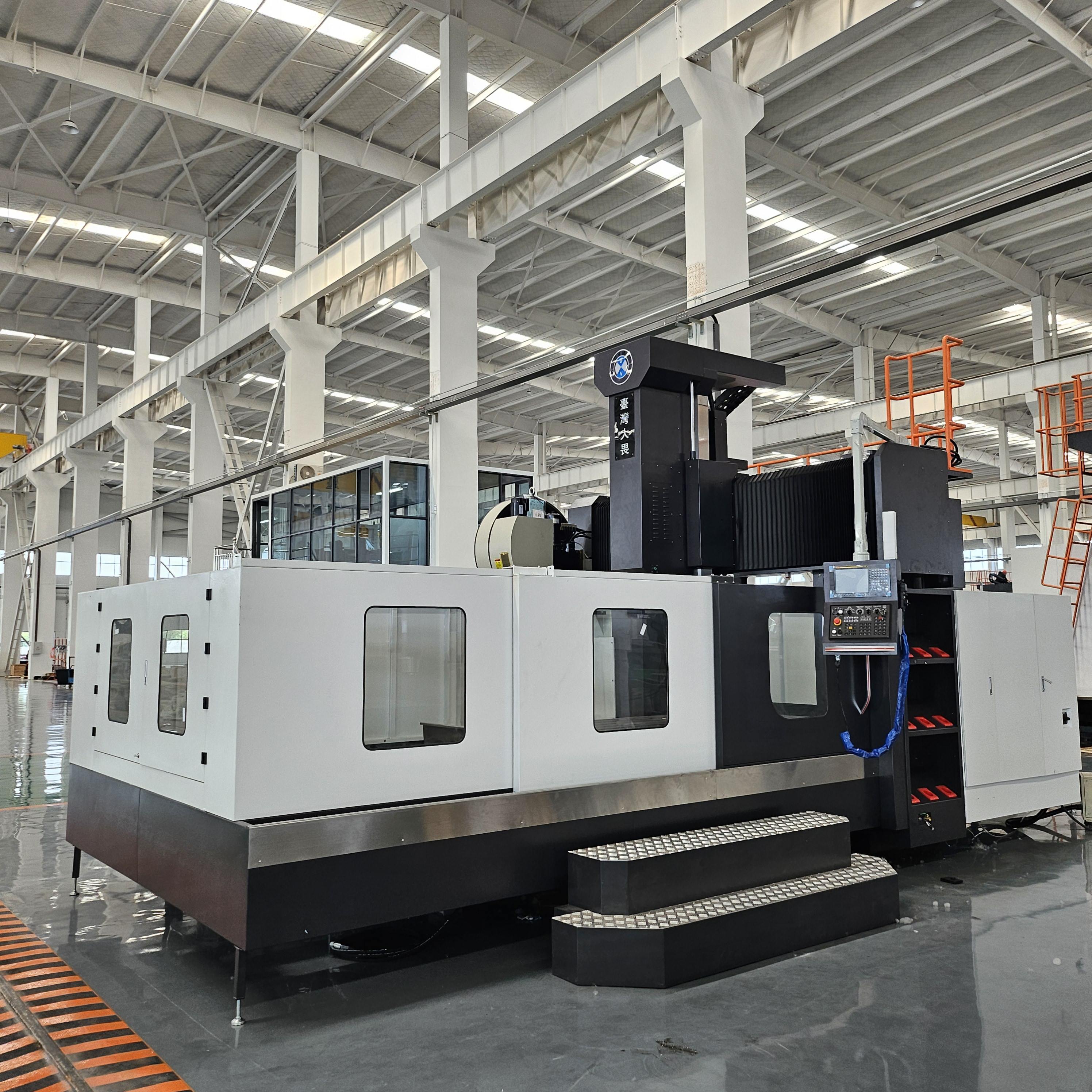

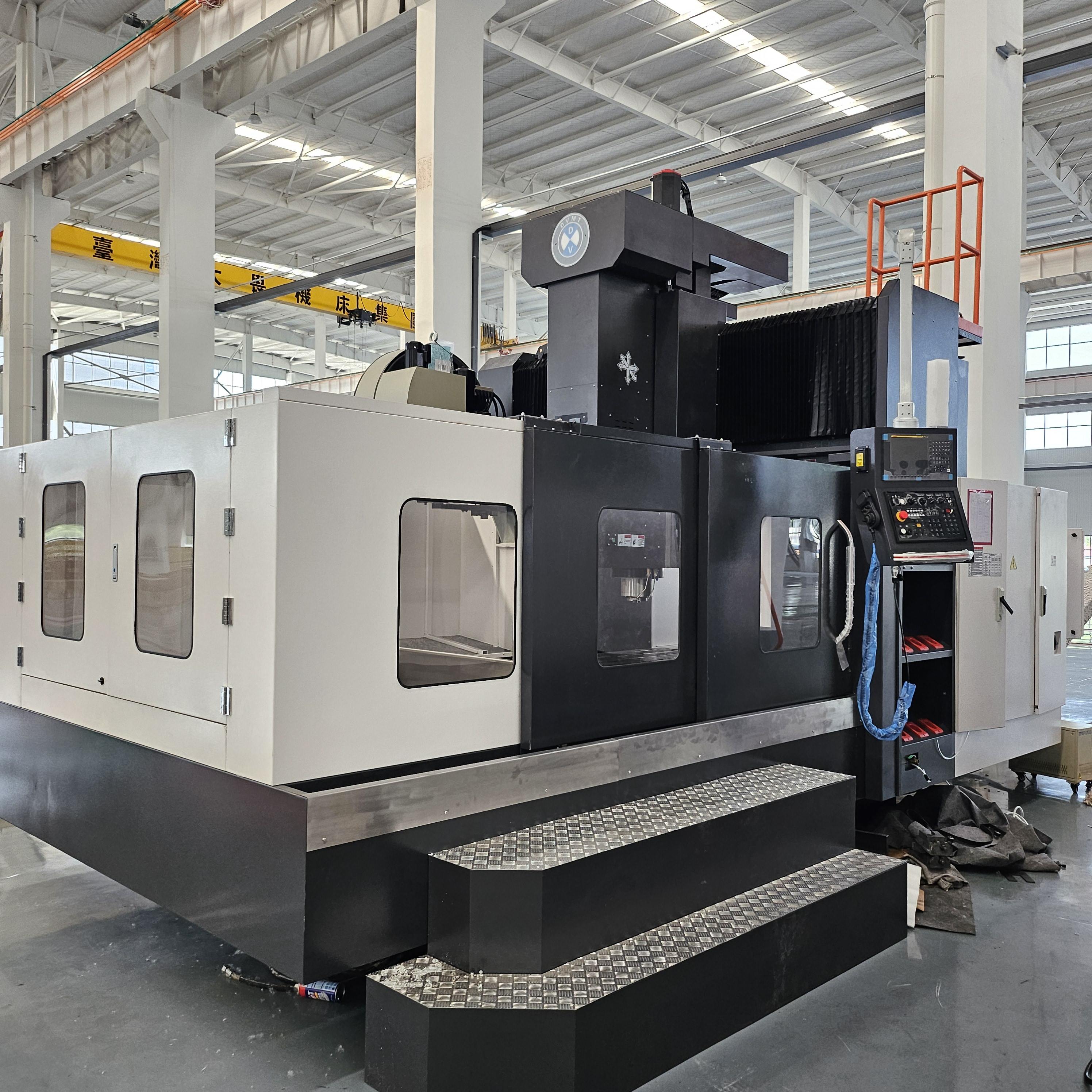

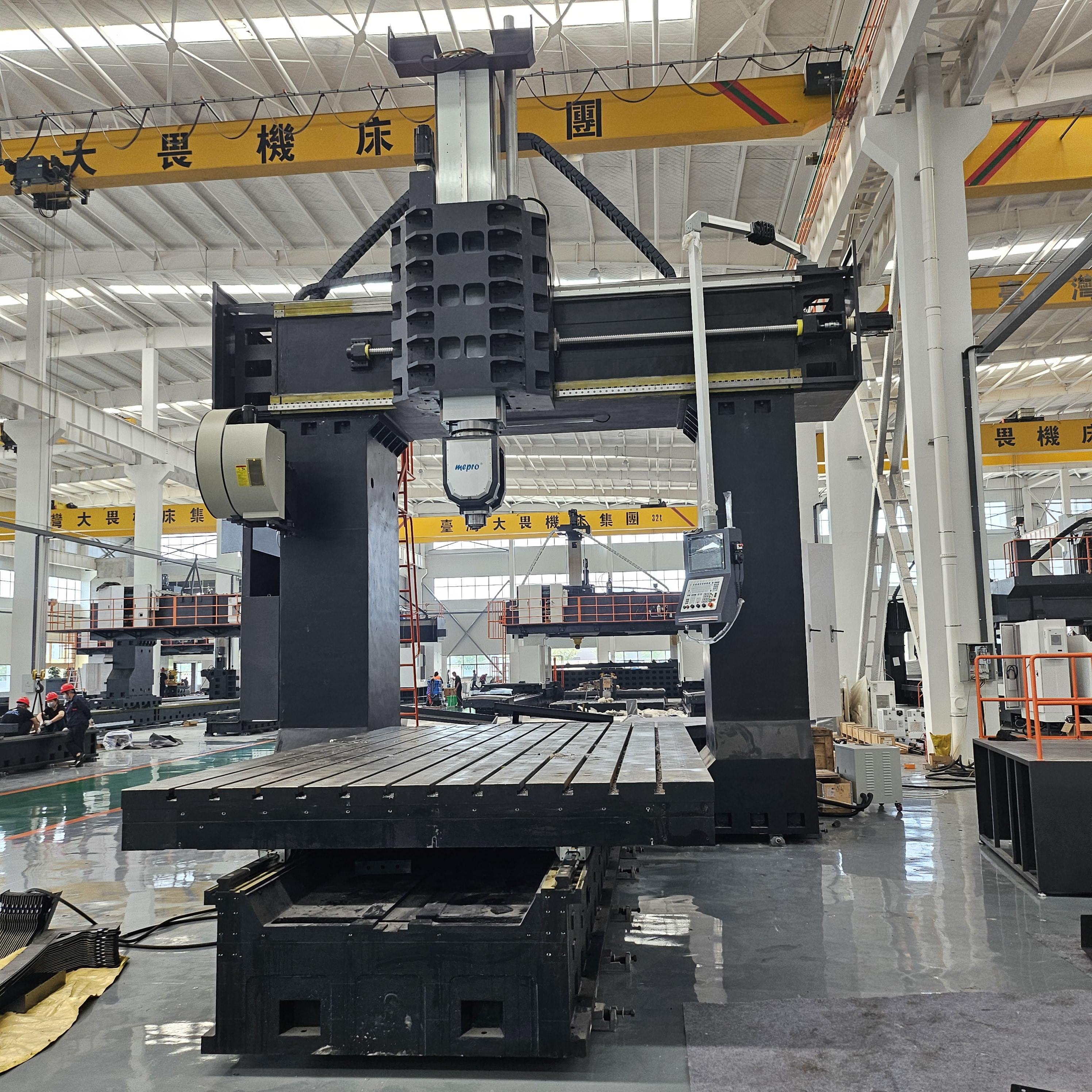

DVX2720 CNC Gantry Machining Center

Machine ModelDVX2720
X/Y axis stroke2700 × 2000
Z axis stroke800
Distance between column2000
RPM6000 / 18000
Spindle motor power18.5
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

Heavy-duty machining center built for large components.

Download Catalogue Contact Us
