Table Moving Type CNC Gantry Machining Center

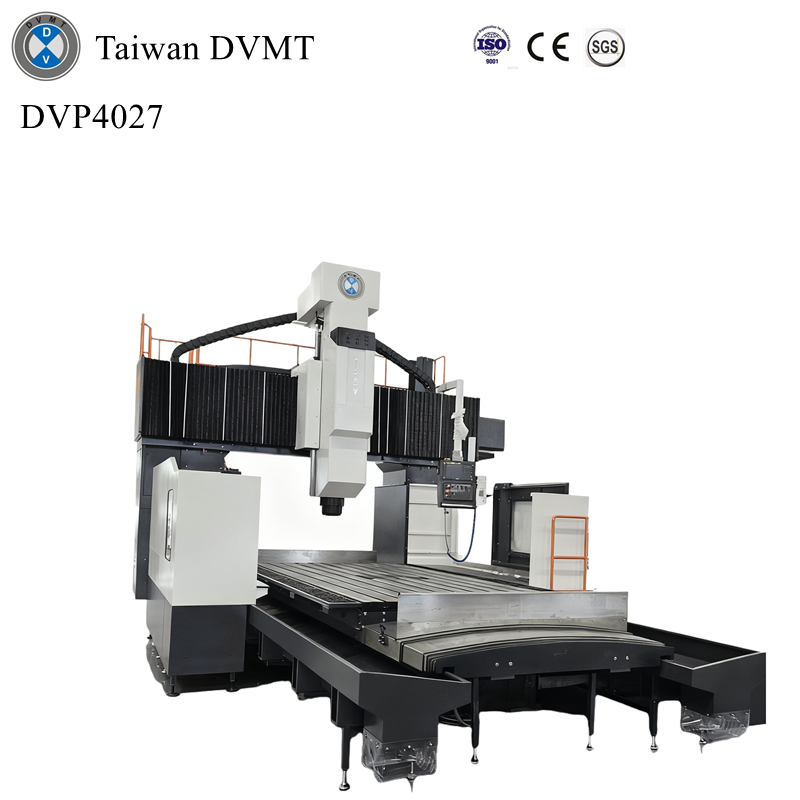

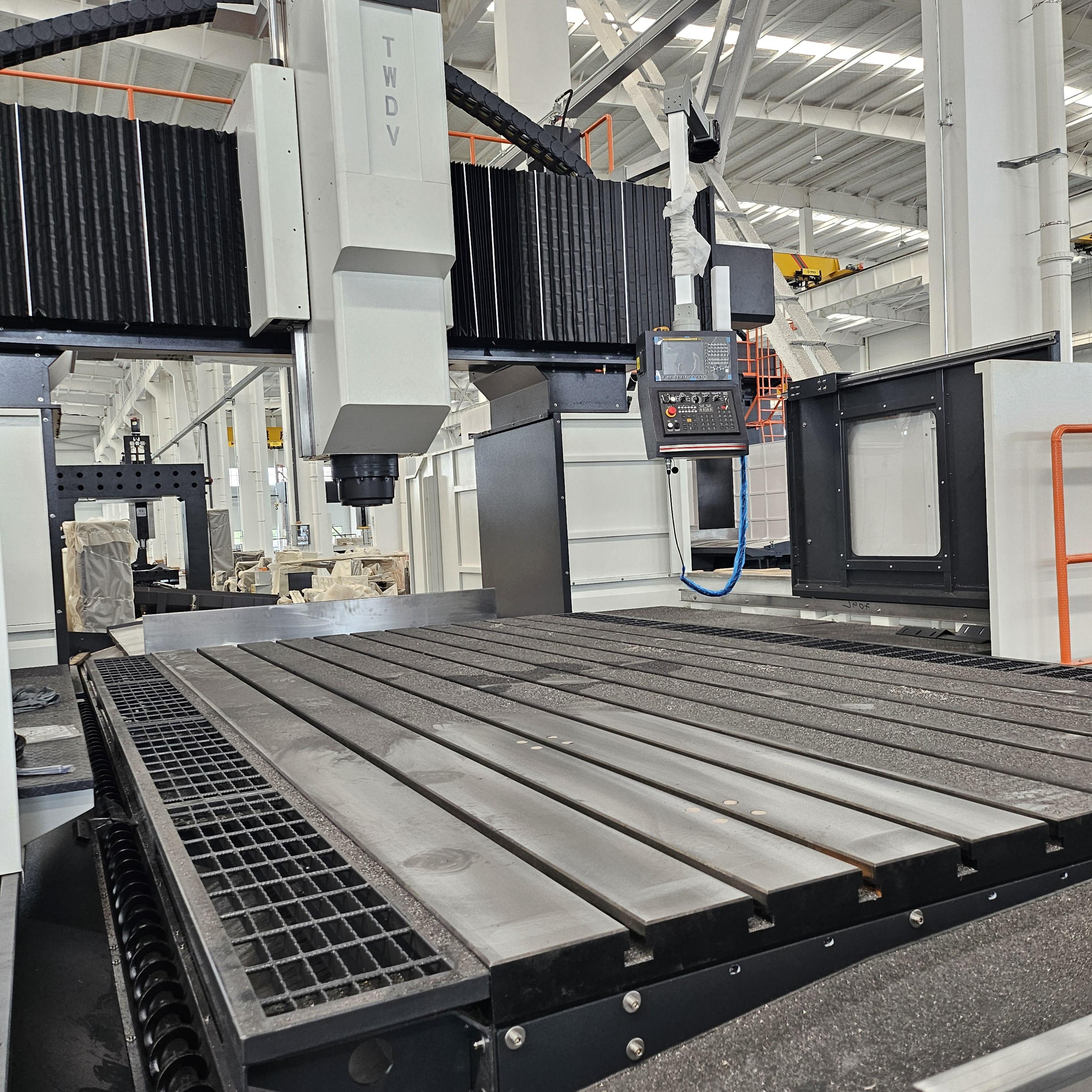

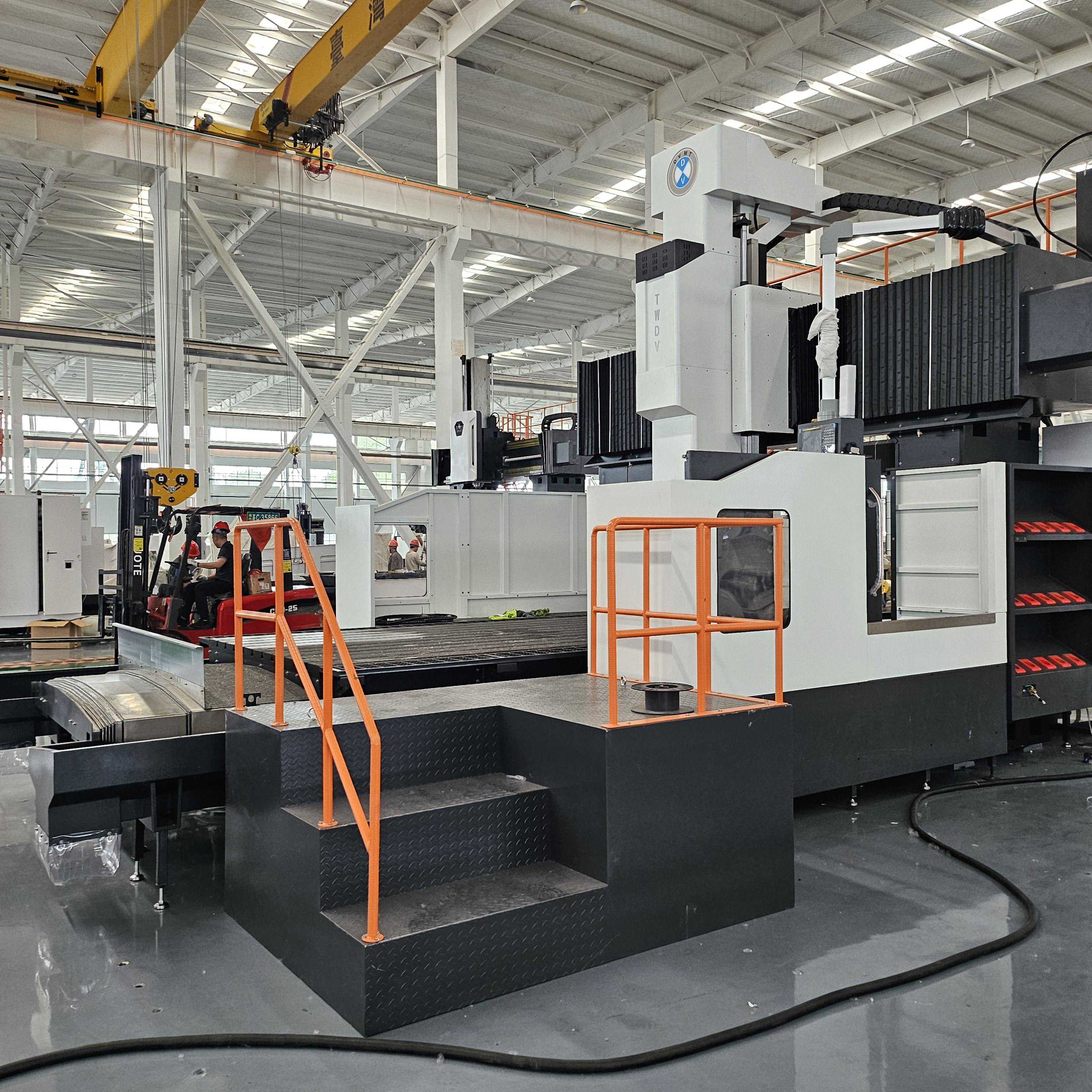

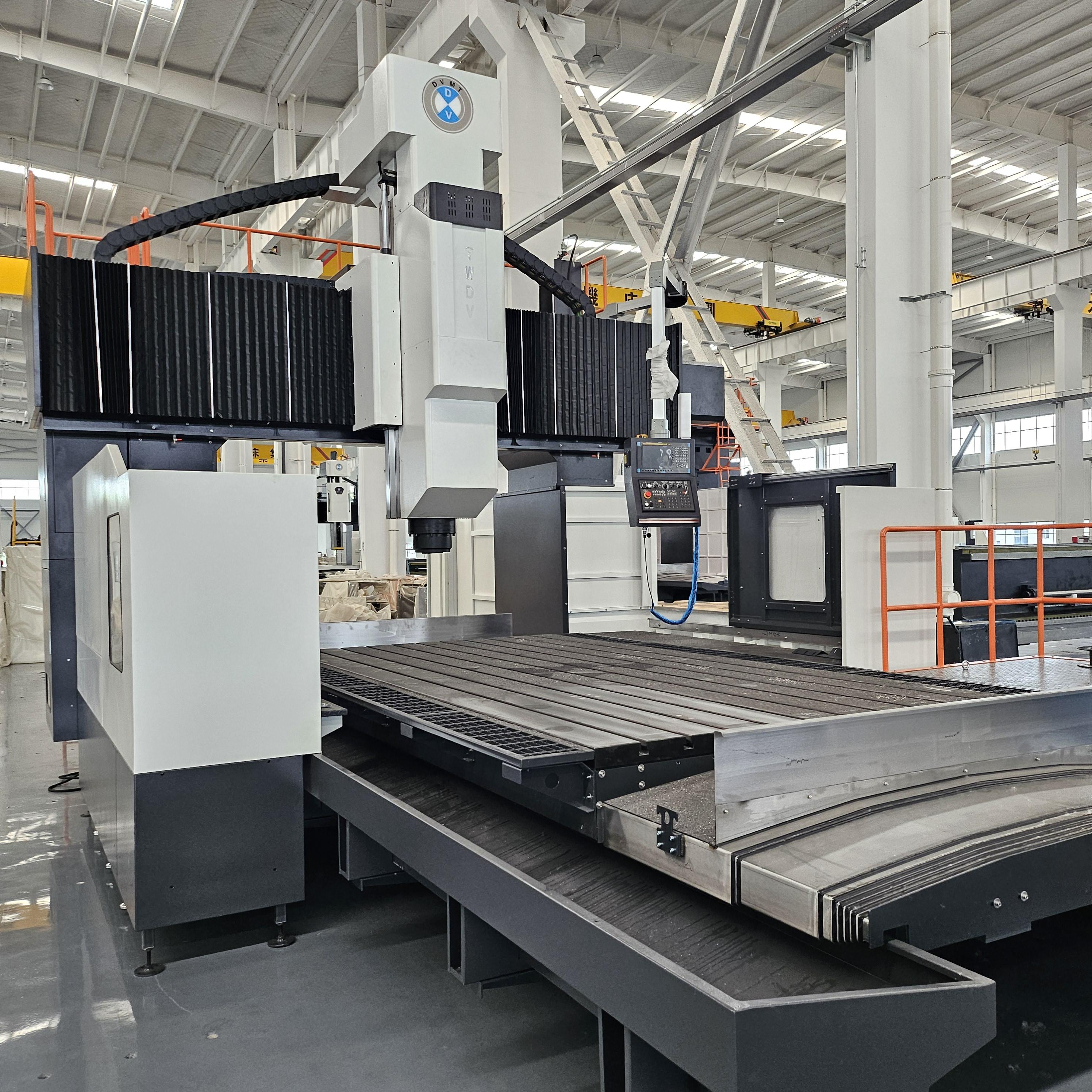

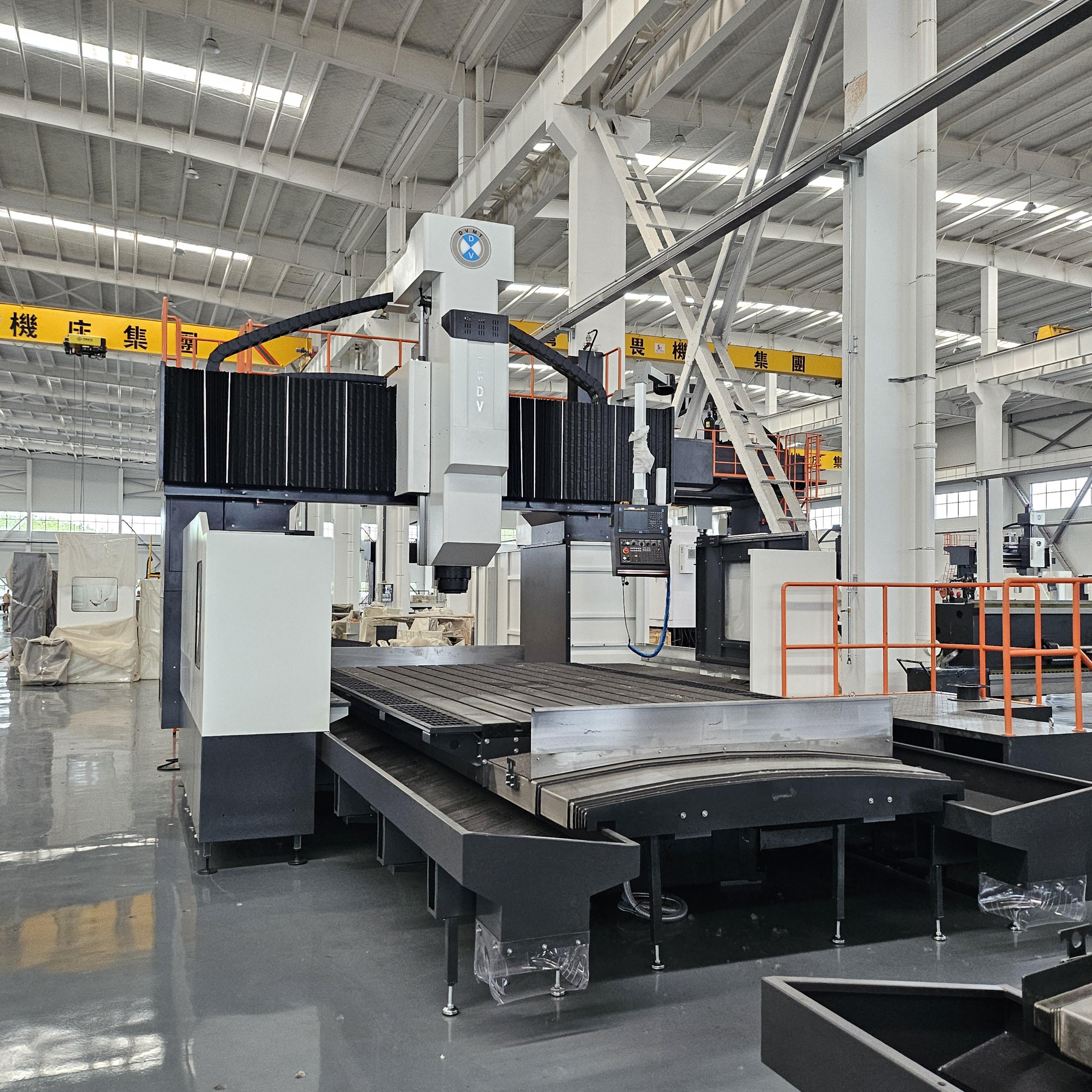

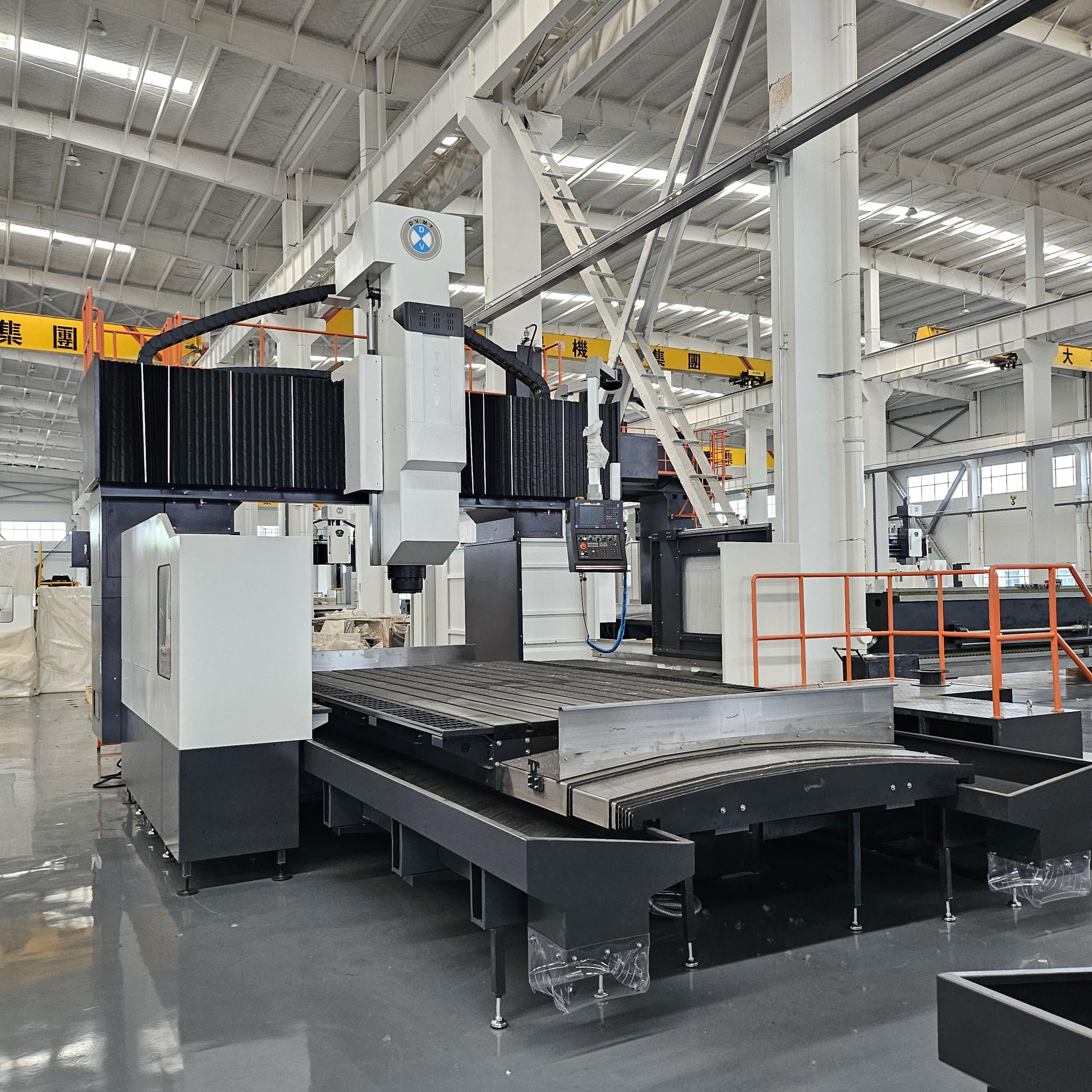

DVF4027 CNC Gantry Machining Center

Machine ModelDVP-4027
X/Y axis stroke4200 × 2700
Z axis stroke1000 / 1250
Distance between column2600
RPM3500 / 300
Spindle motor power22 - 26
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

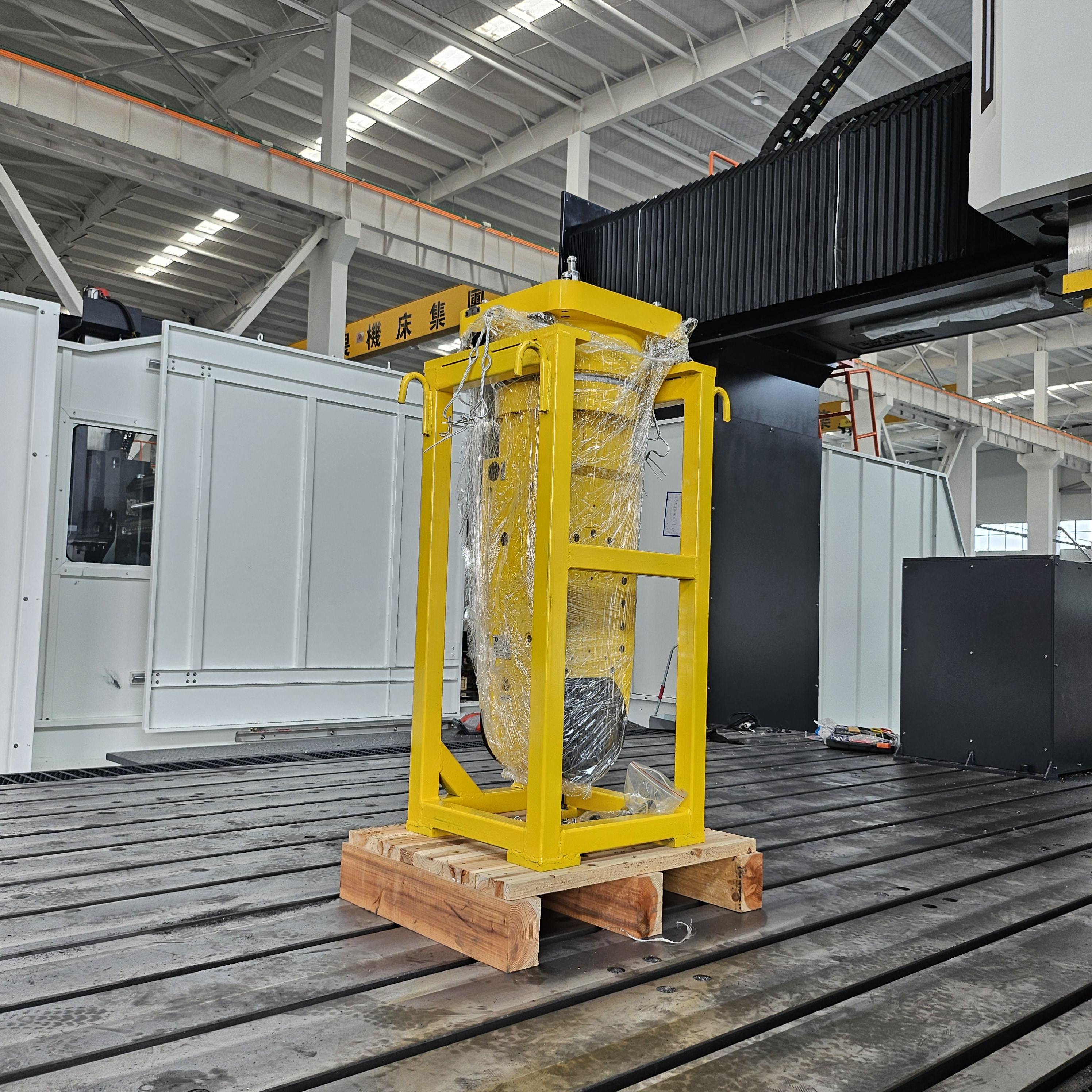

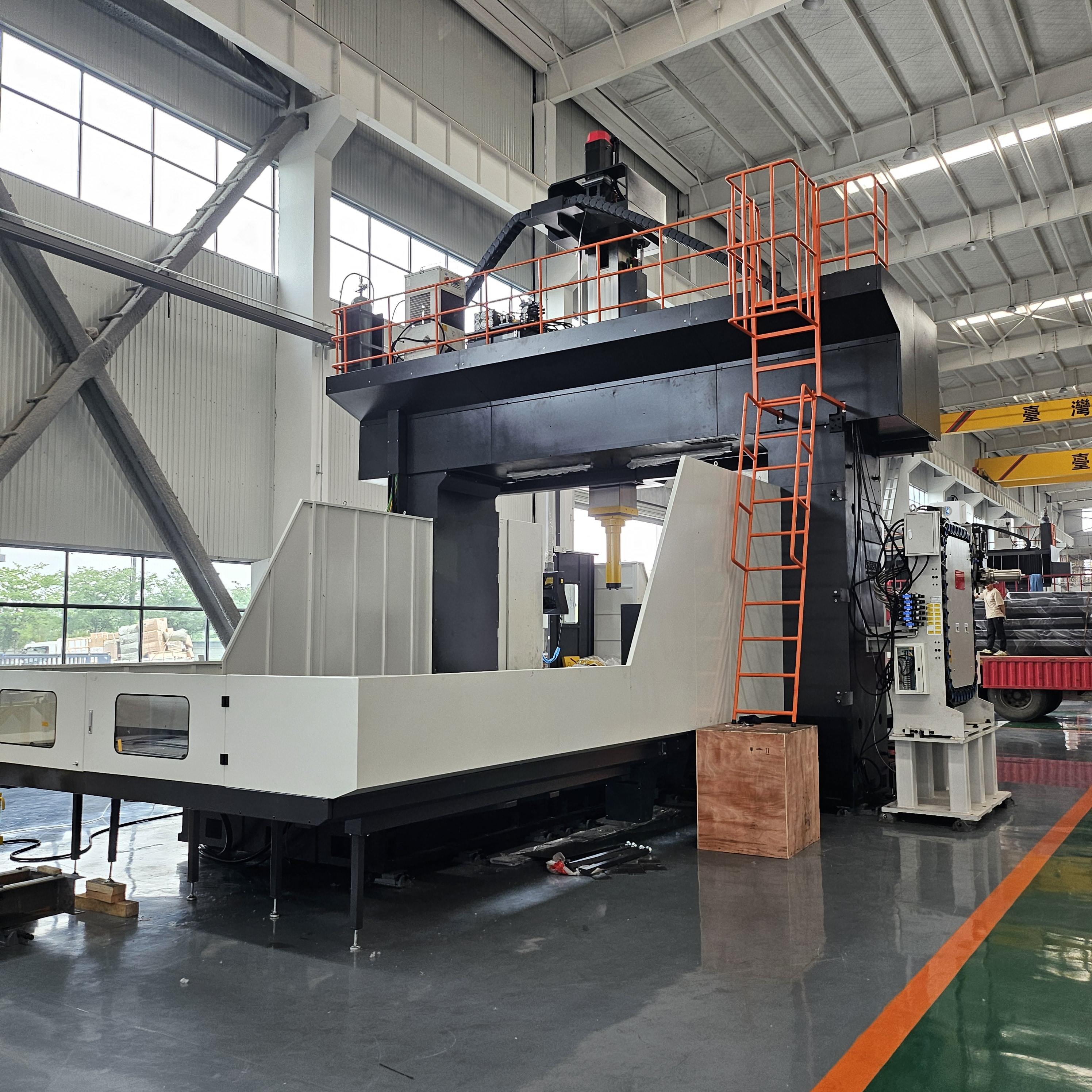

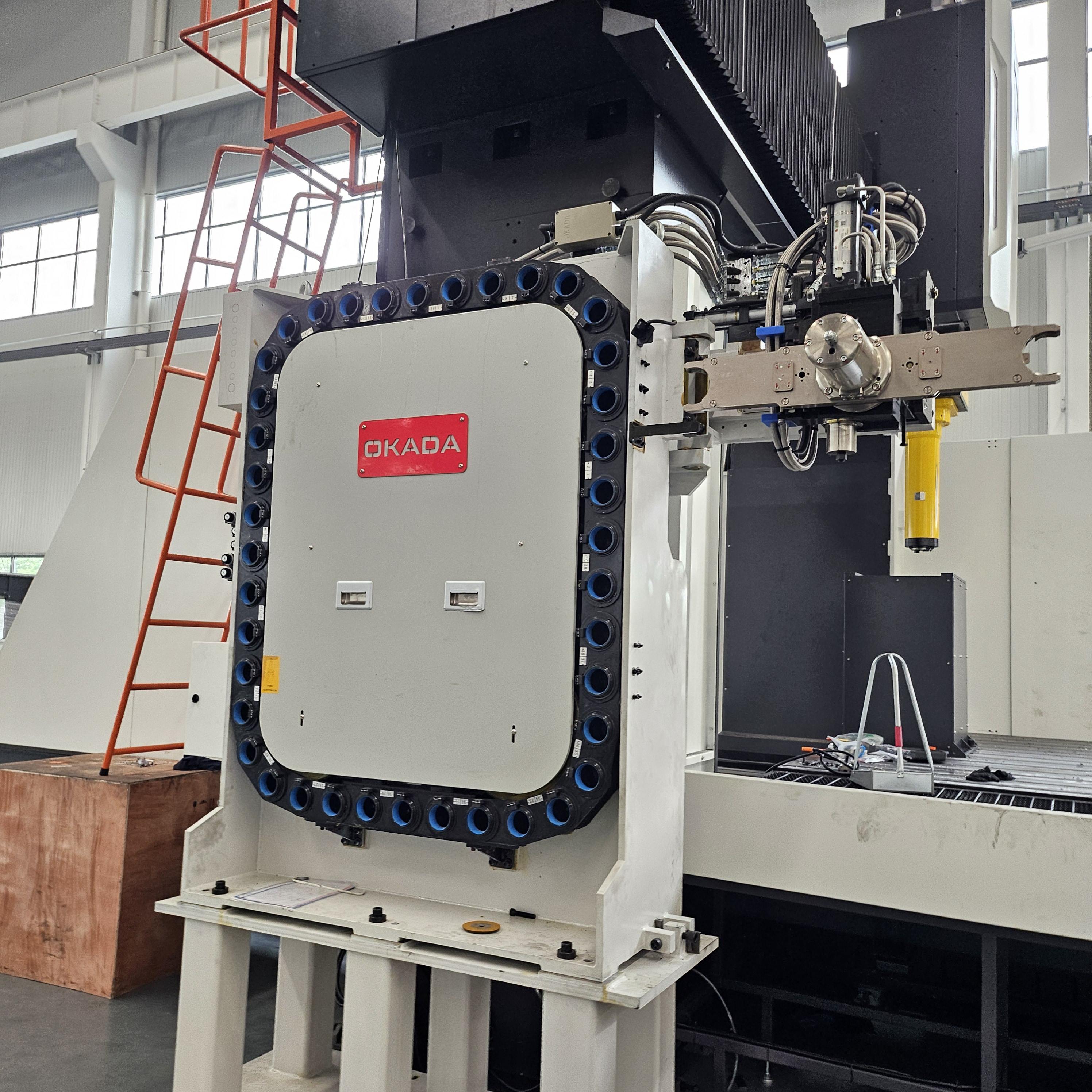

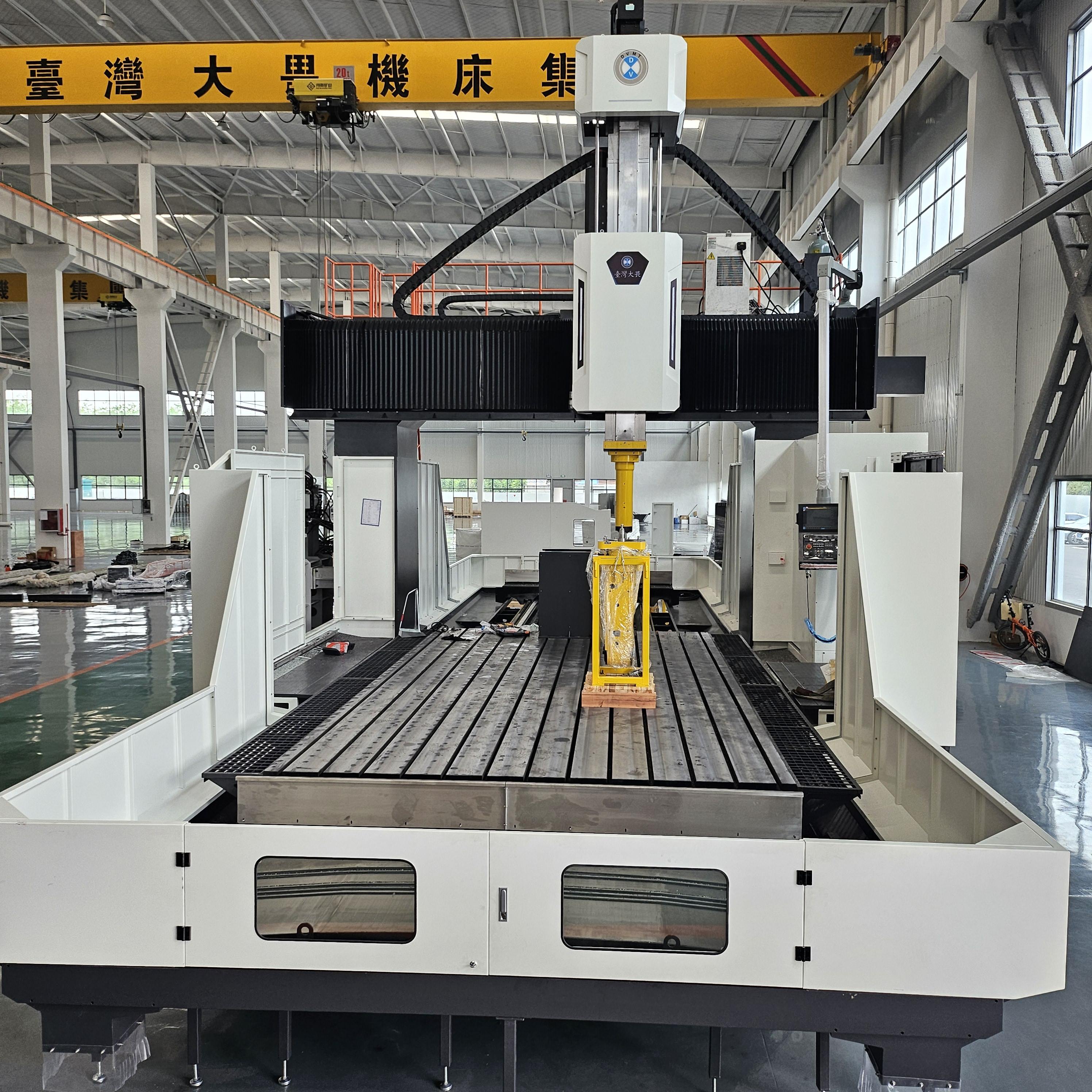

DVF5033 CNC Gantry Machining Center

Machine Model DVF-5033
X/Y Axis Stroke (mm)5200 / 3300
Z Axis Stroke (mm)1250 [1500]
Distance between column (Longmen width) (mm)3200
SpindleBT-50
RPM3500 / 3000
Spindle Motor Power (kW)22 / 26
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

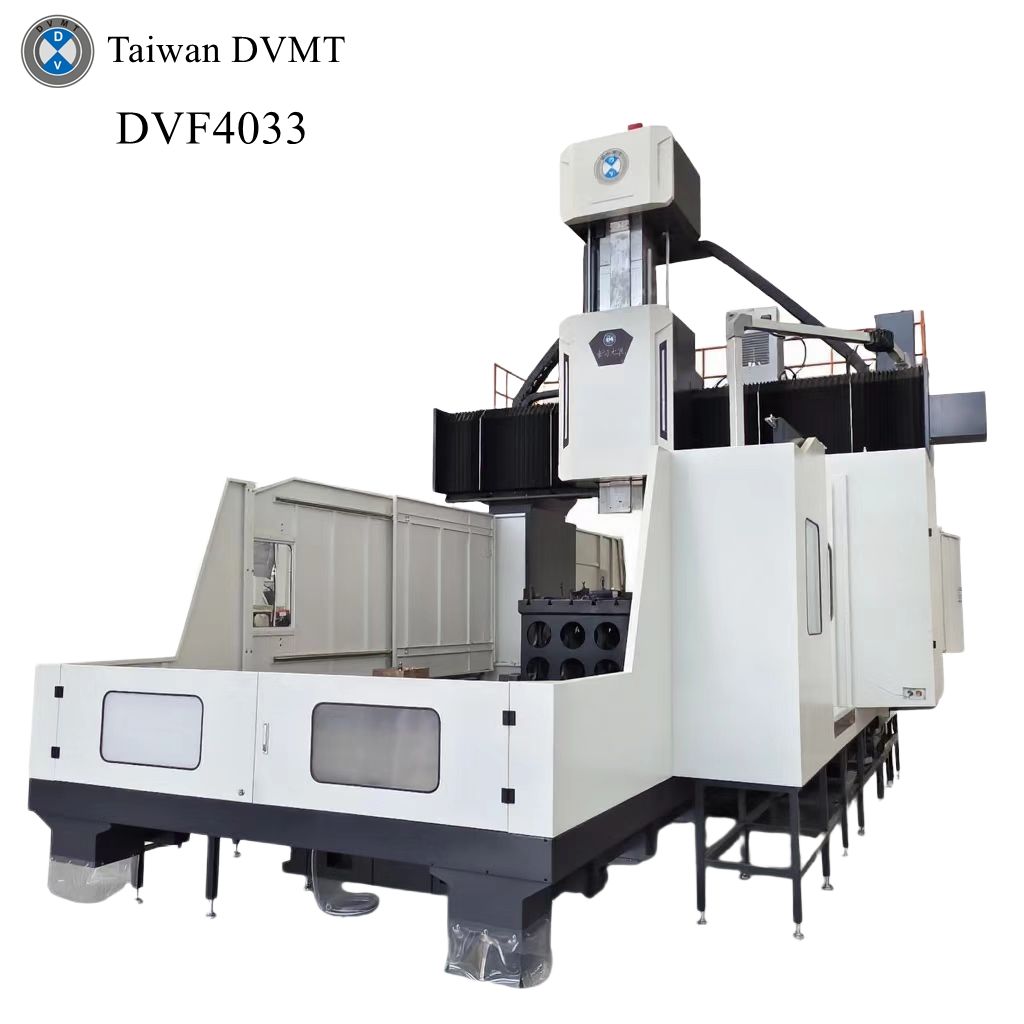

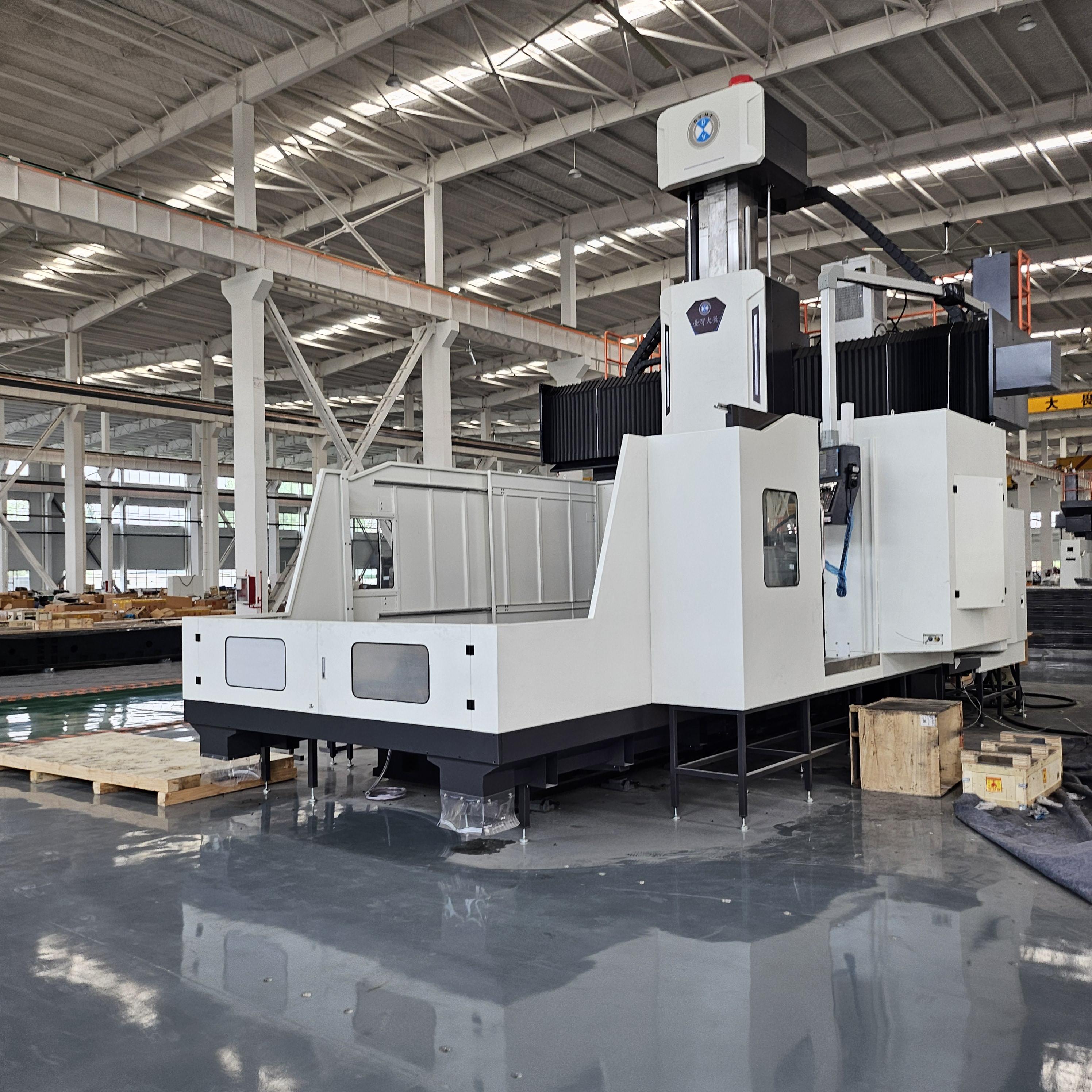

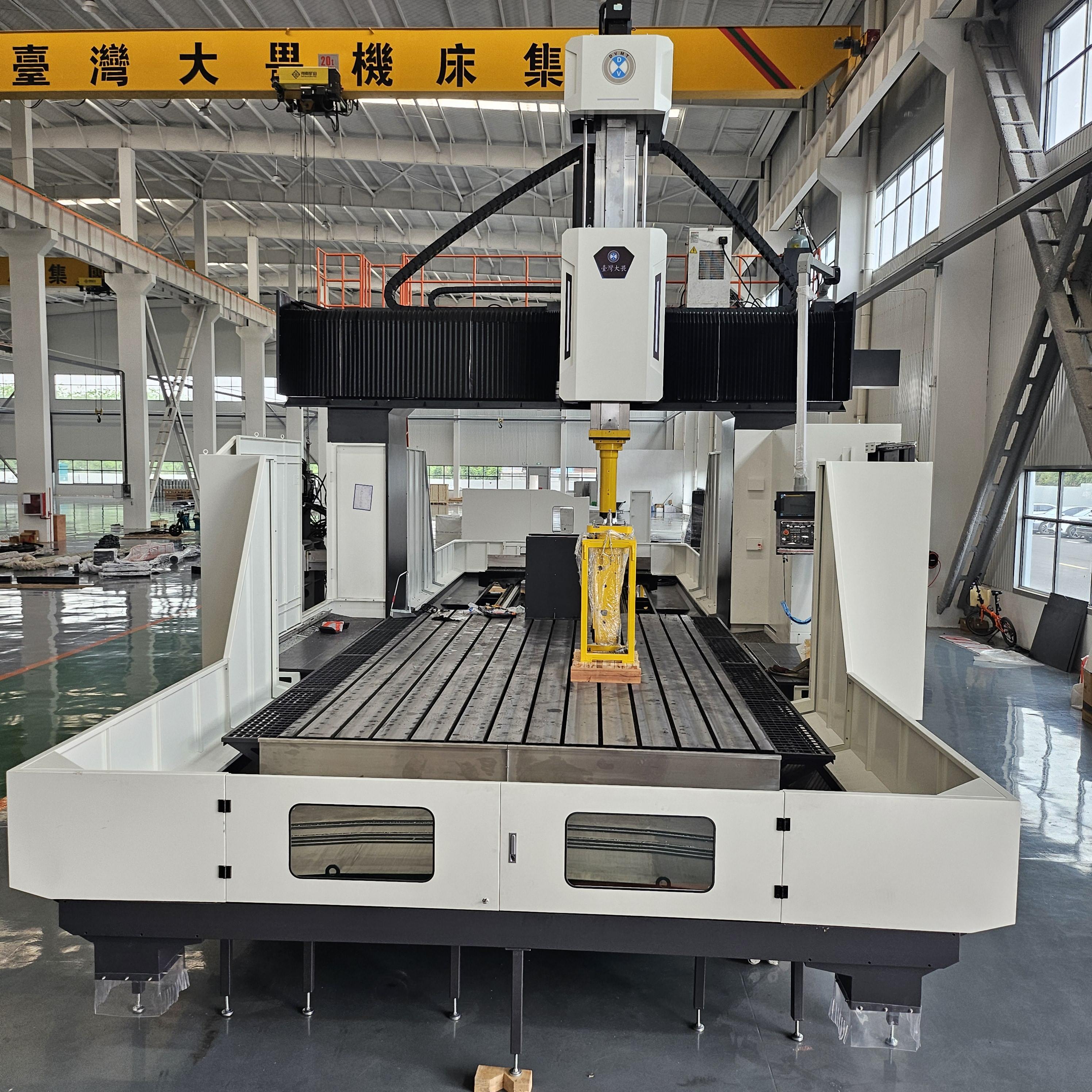

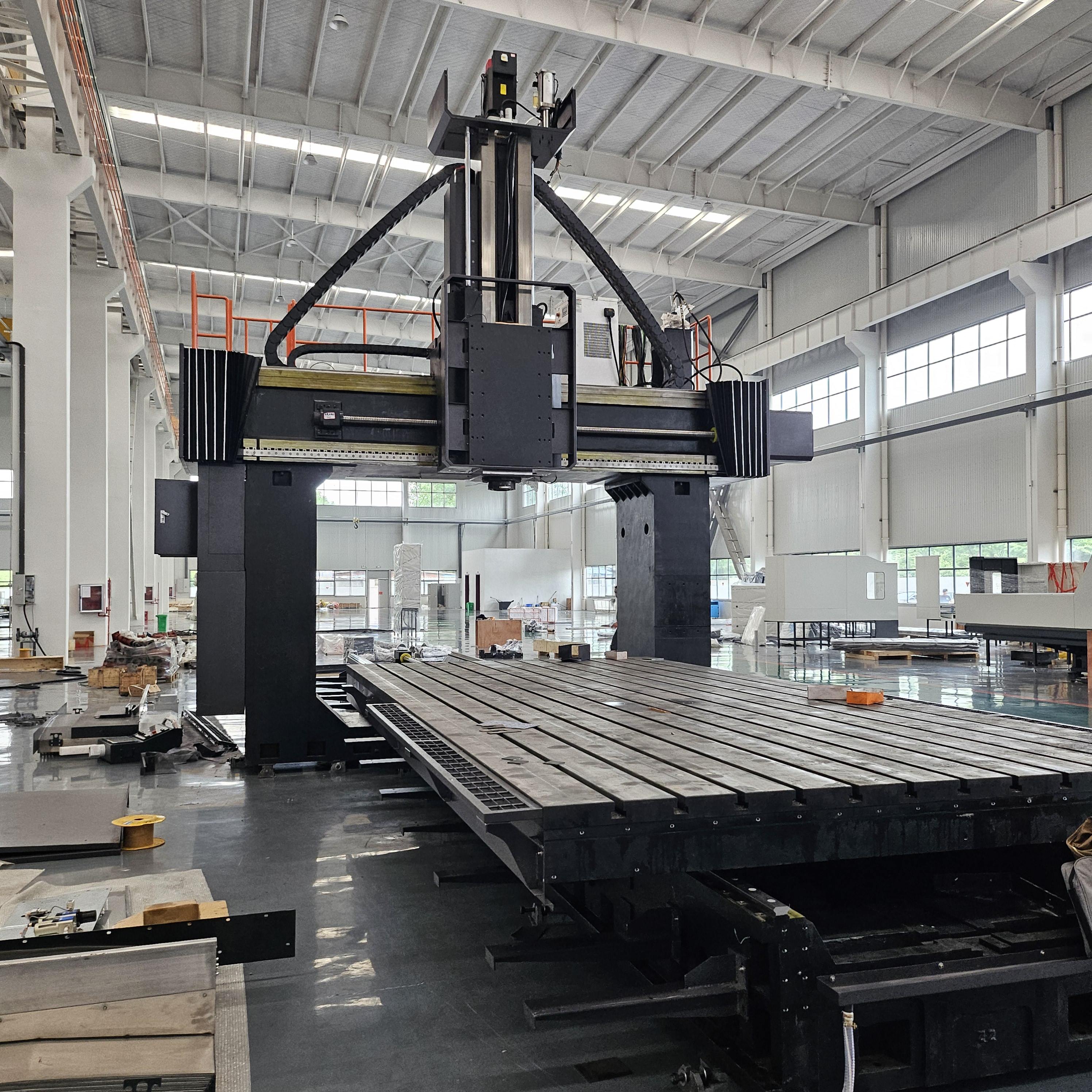

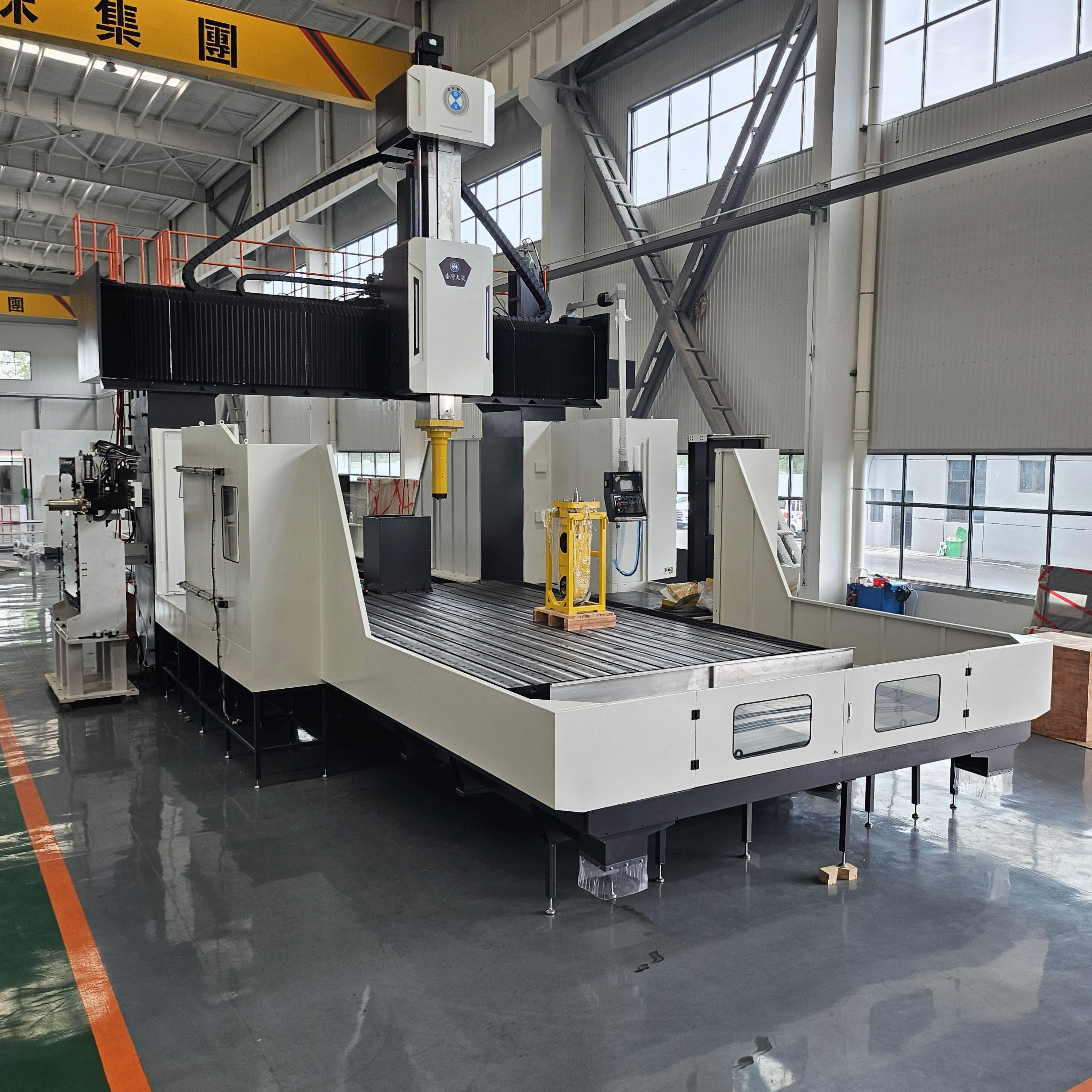

DVF4033 CNC Gantry Machining Center

Machine ModelDVF-4033
X/Y Axis Stroke (mm)4200 / 3300
Z Axis Stroke (mm)1250 [1500]
Distance between column (Longmen width) (mm)3200
SpindleBT-50
RPM3500 / 3000
Spindle Motor Power (kW)22 / 26
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

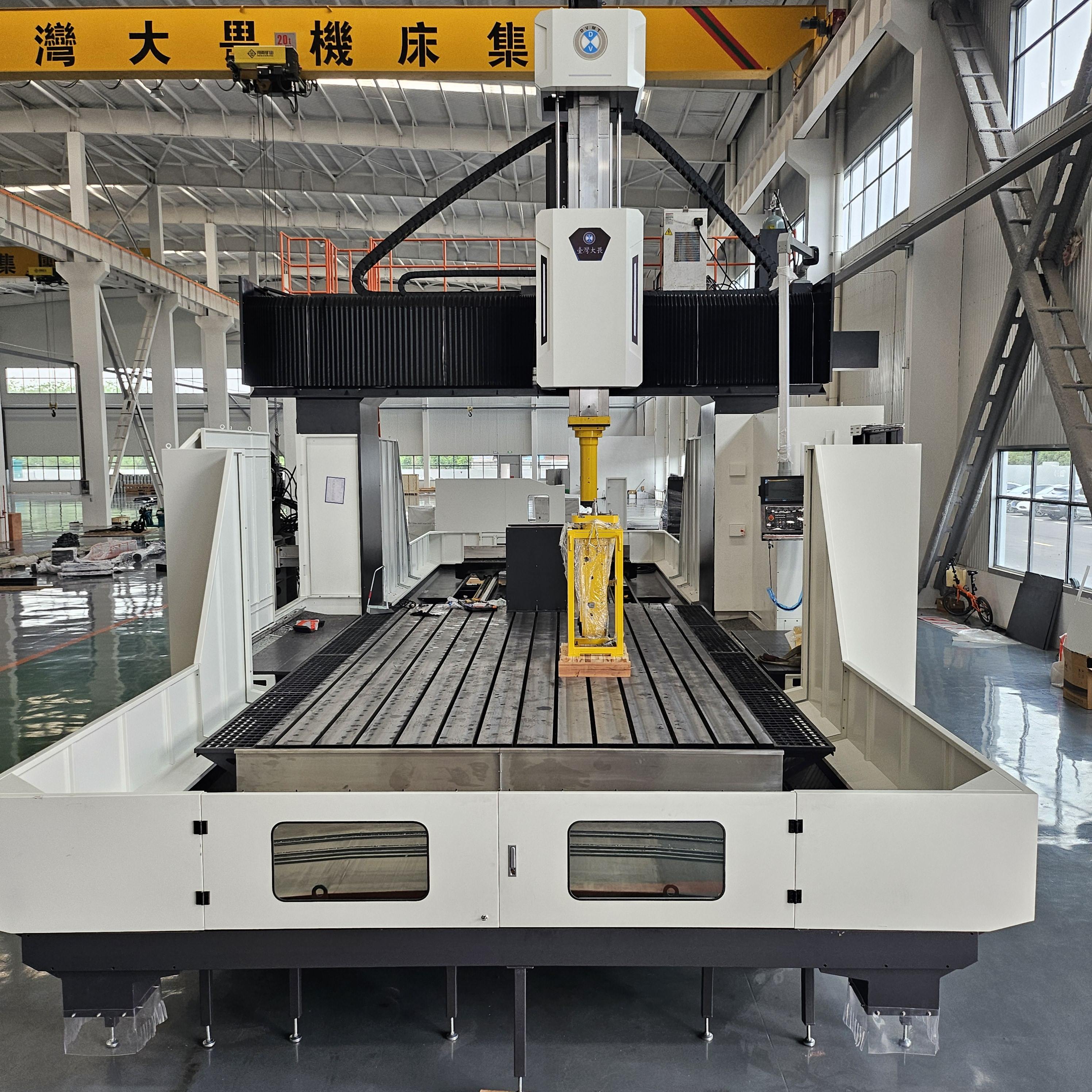

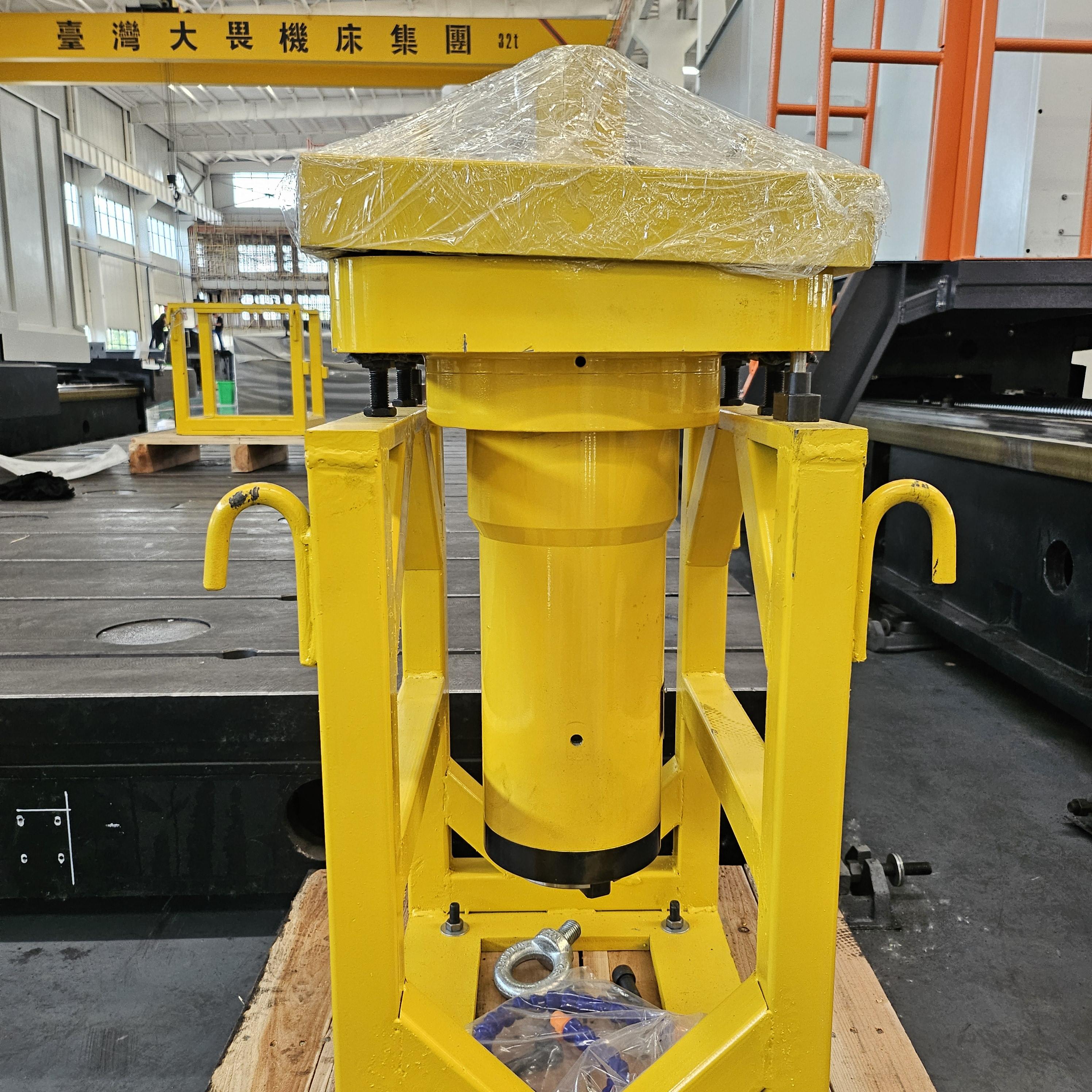

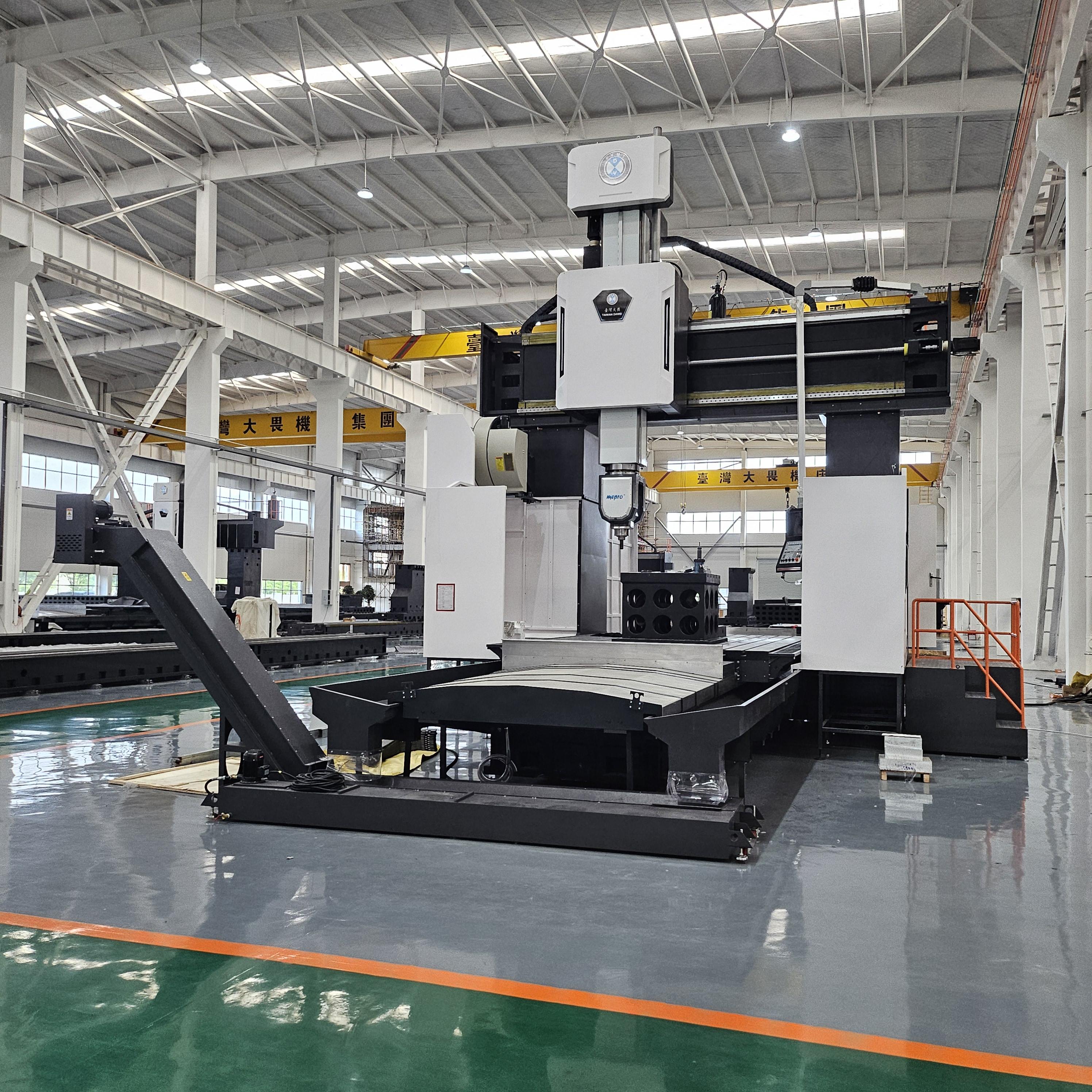

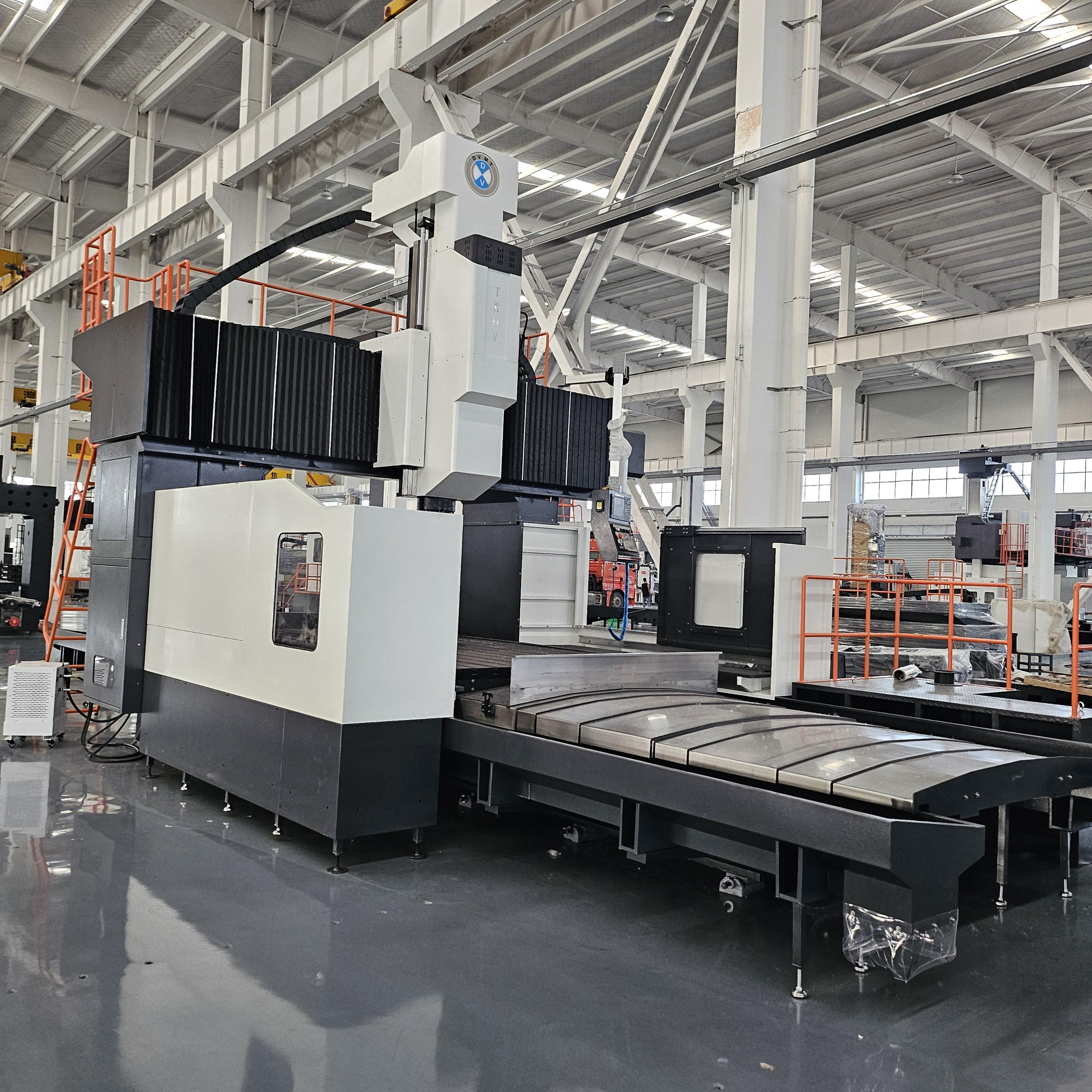

DVF6052 CNC Gantry Machining Center

Machine ModelDVF-6052
X/Y Axis Stroke (mm)6200 / 5200 (7000 optional)
Z Axis Stroke (mm)1530 / 1800
Distance between column (Longmen width) (mm)5200
SpindleBT-50
RPM3500 [3000]
Spindle Motor Power (kW)30 / 37
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

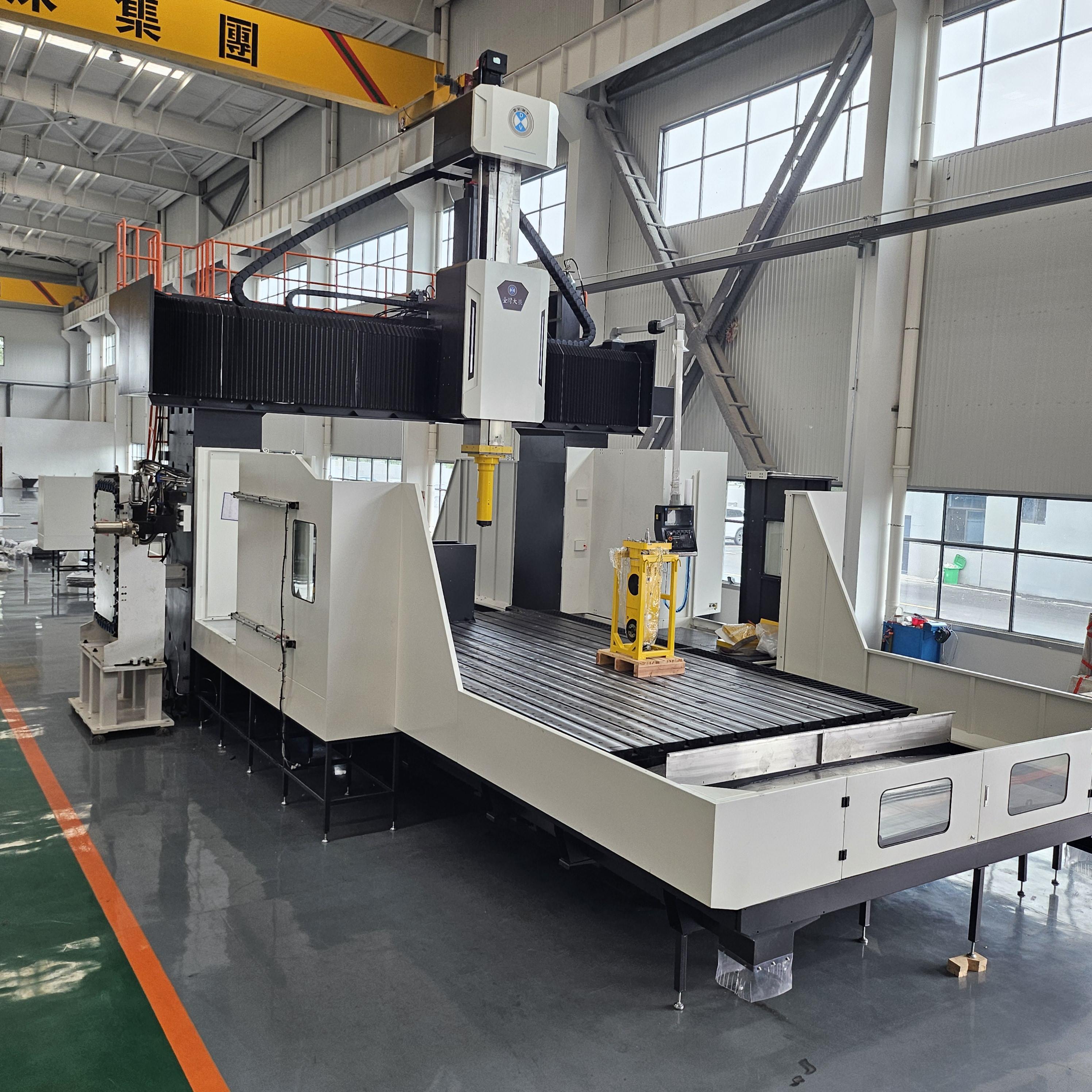

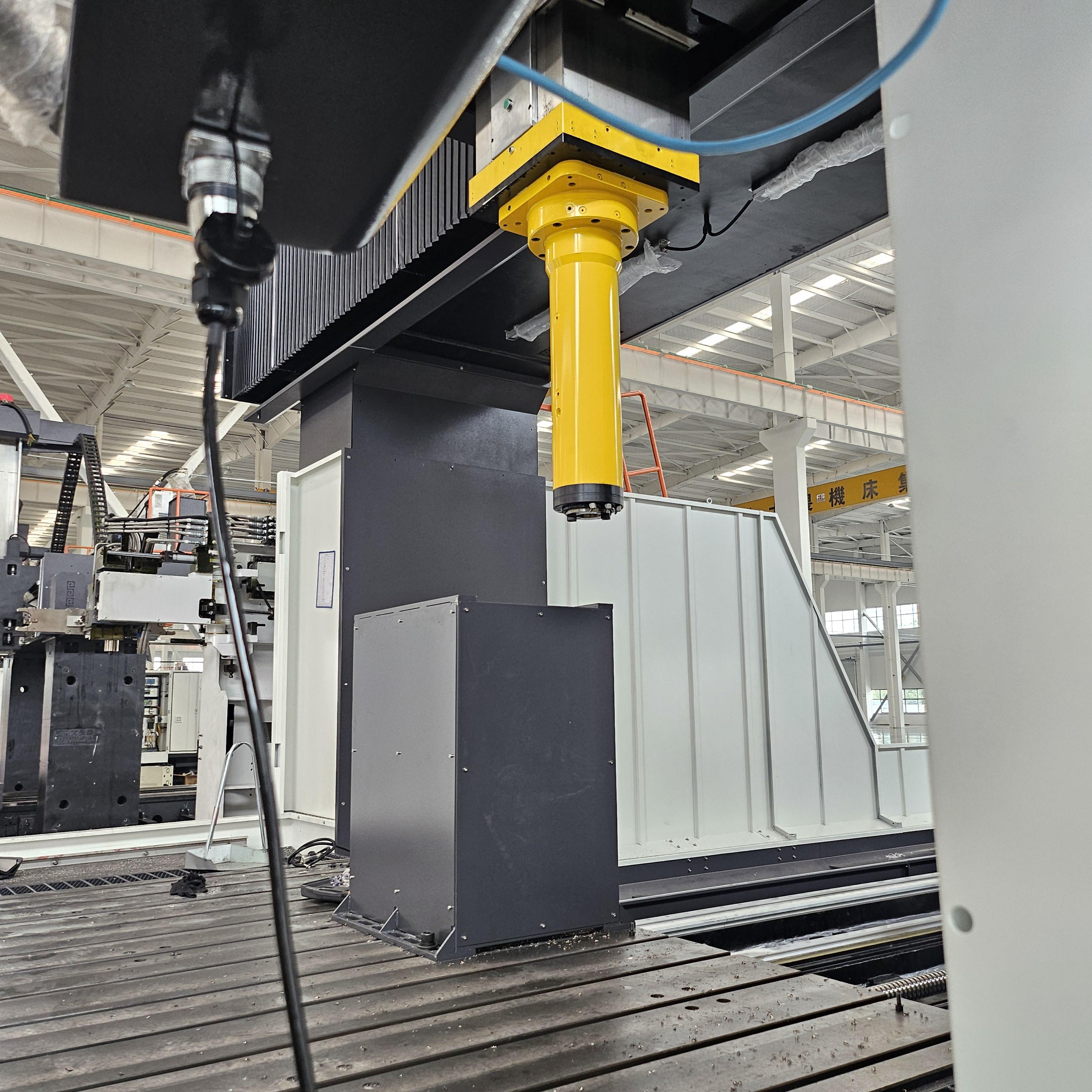

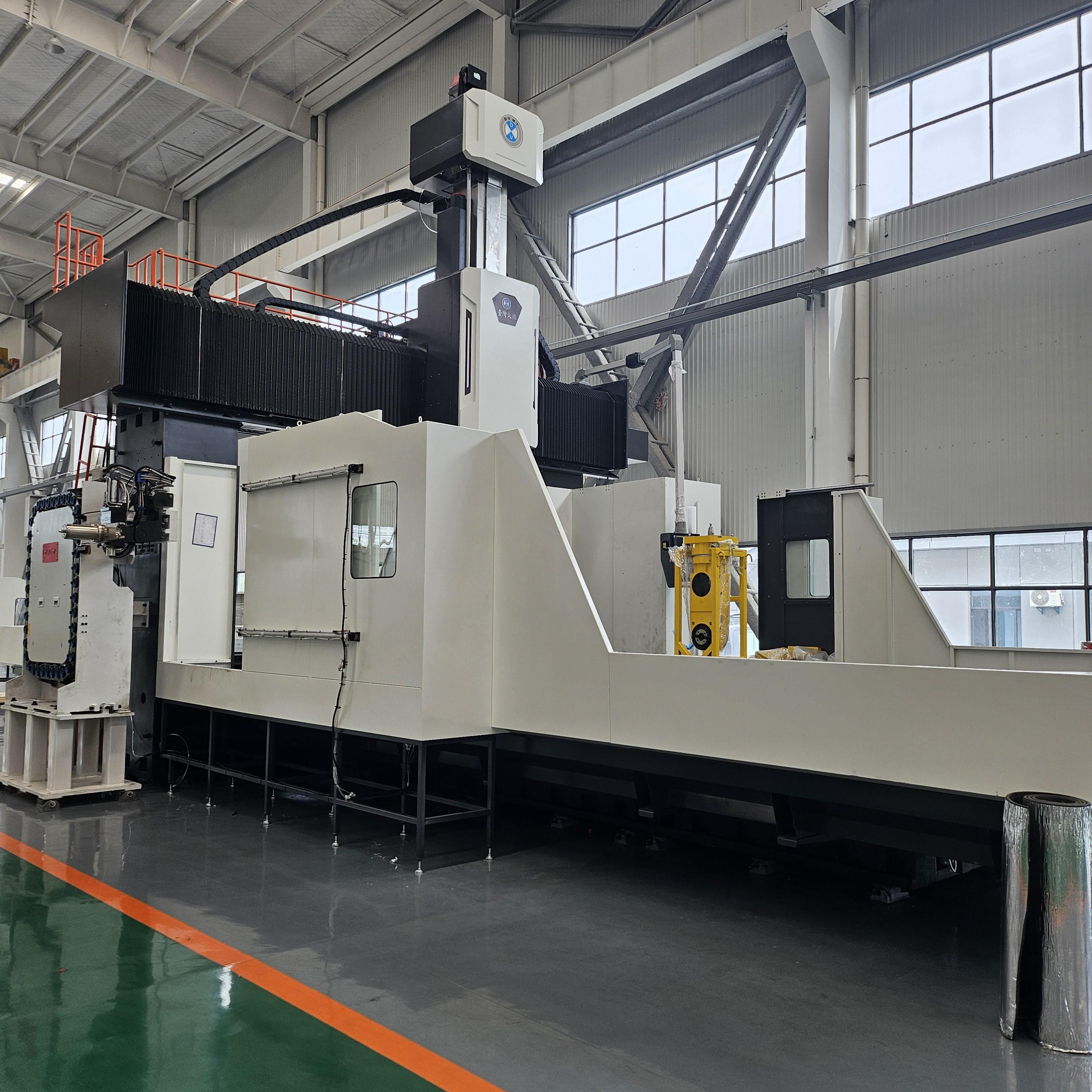

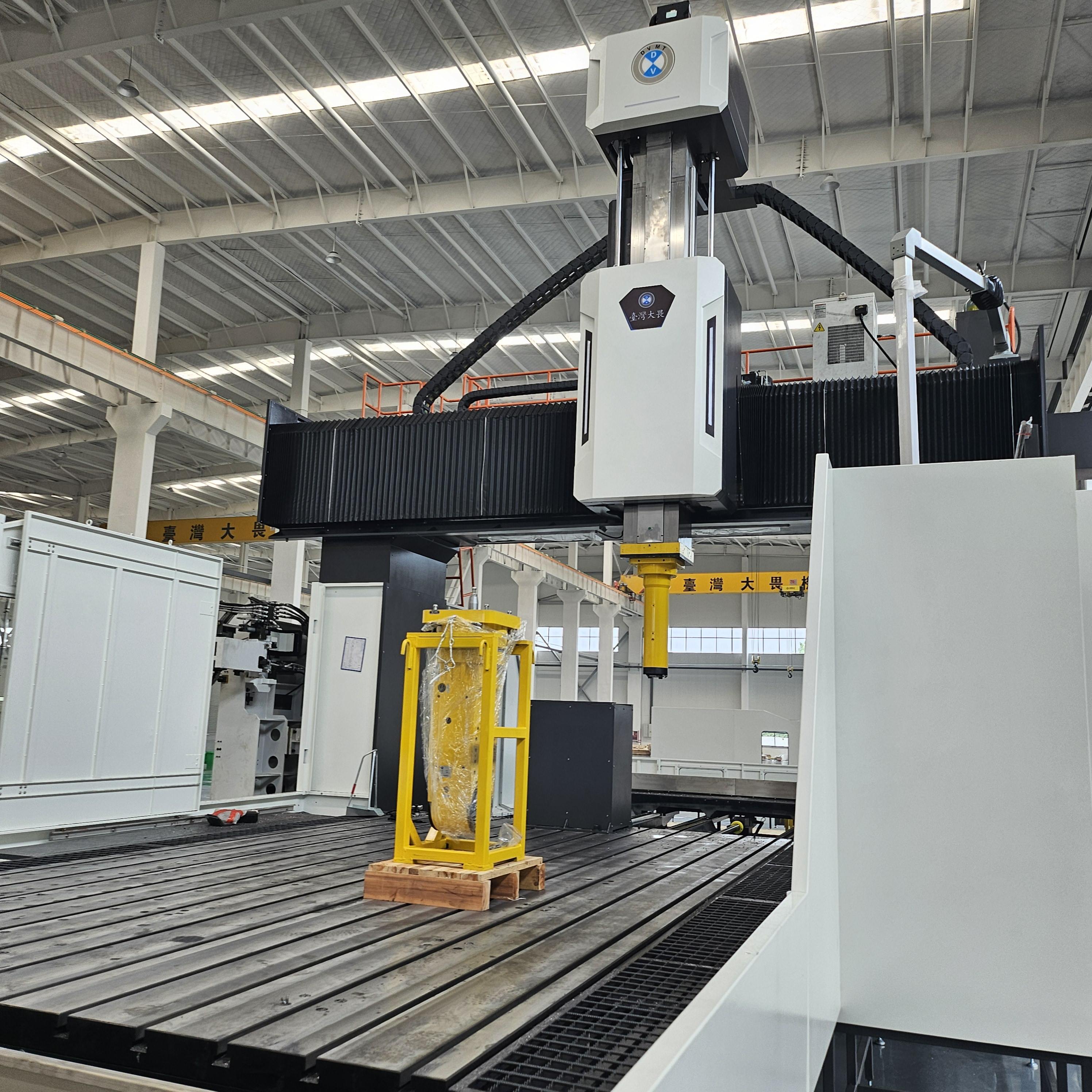

DVF6043 CNC Gantry Machining Center

Machine ModelDVF-6043
X/Y Axis Stroke (mm)6200 / 4300 (7000 optional)
Z Axis Stroke (mm)1500
Distance between column (Longmen width) (mm)4200
SpindleBT-50
RPM3500 / 3000
Spindle Motor Power (kW)30 / 37
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

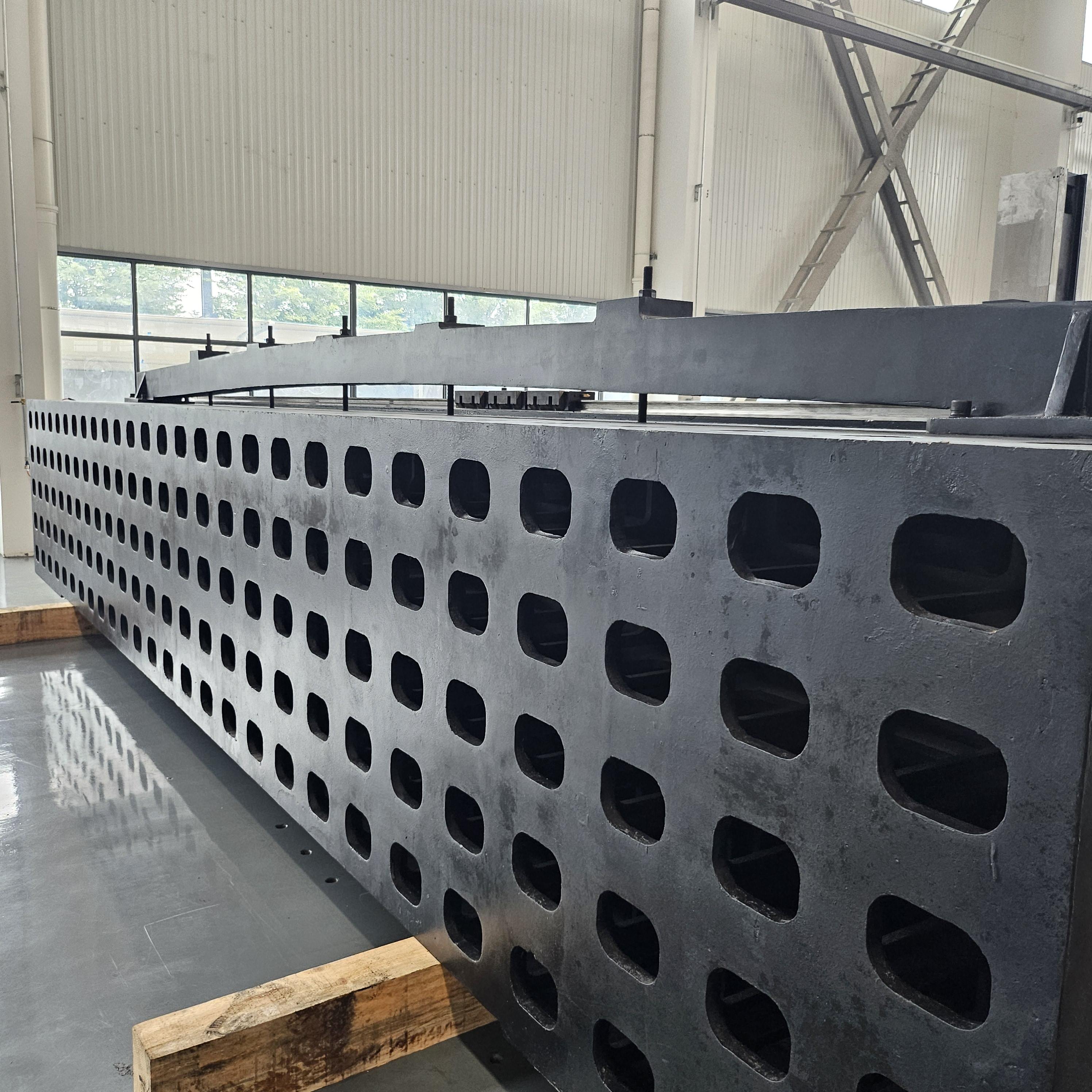

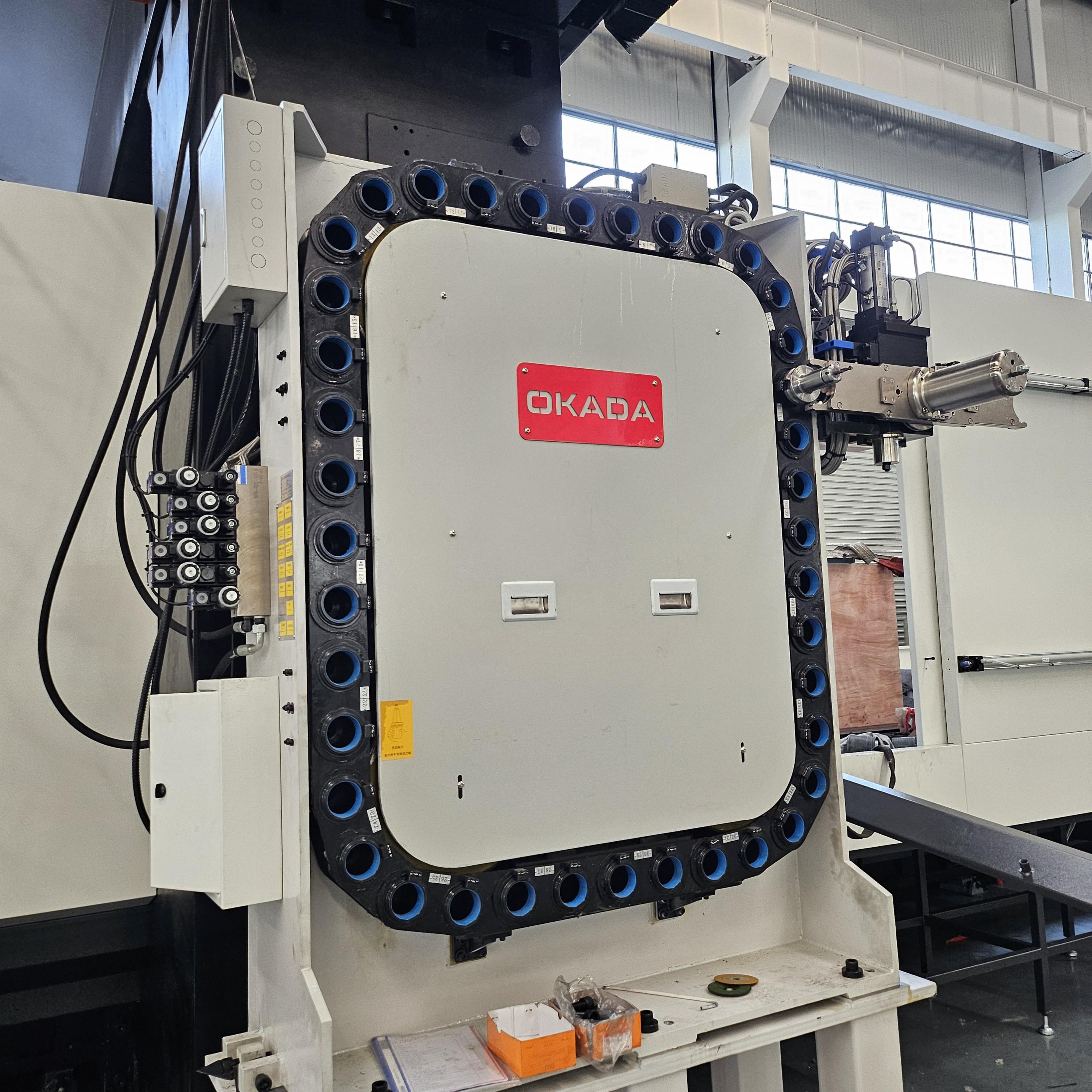

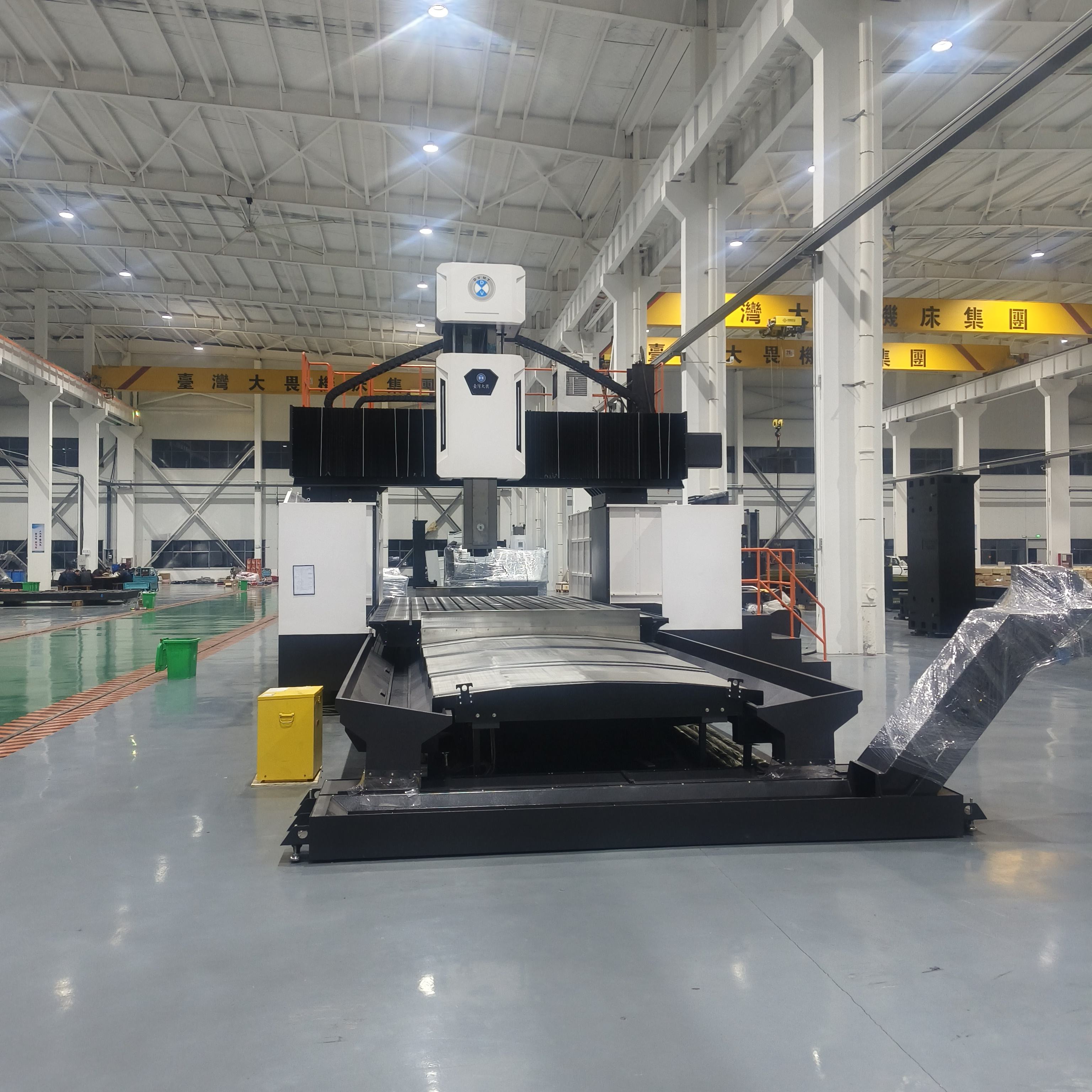

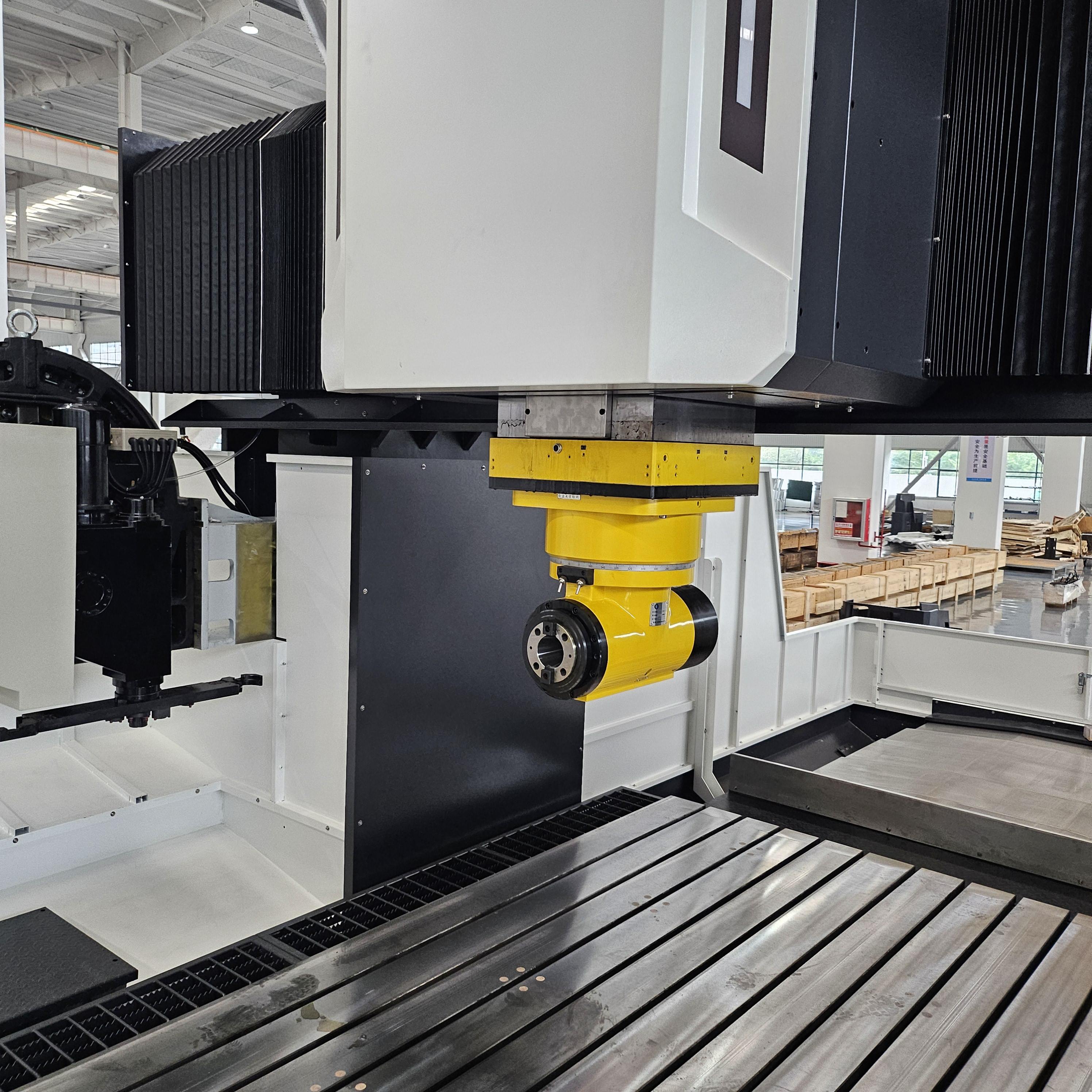

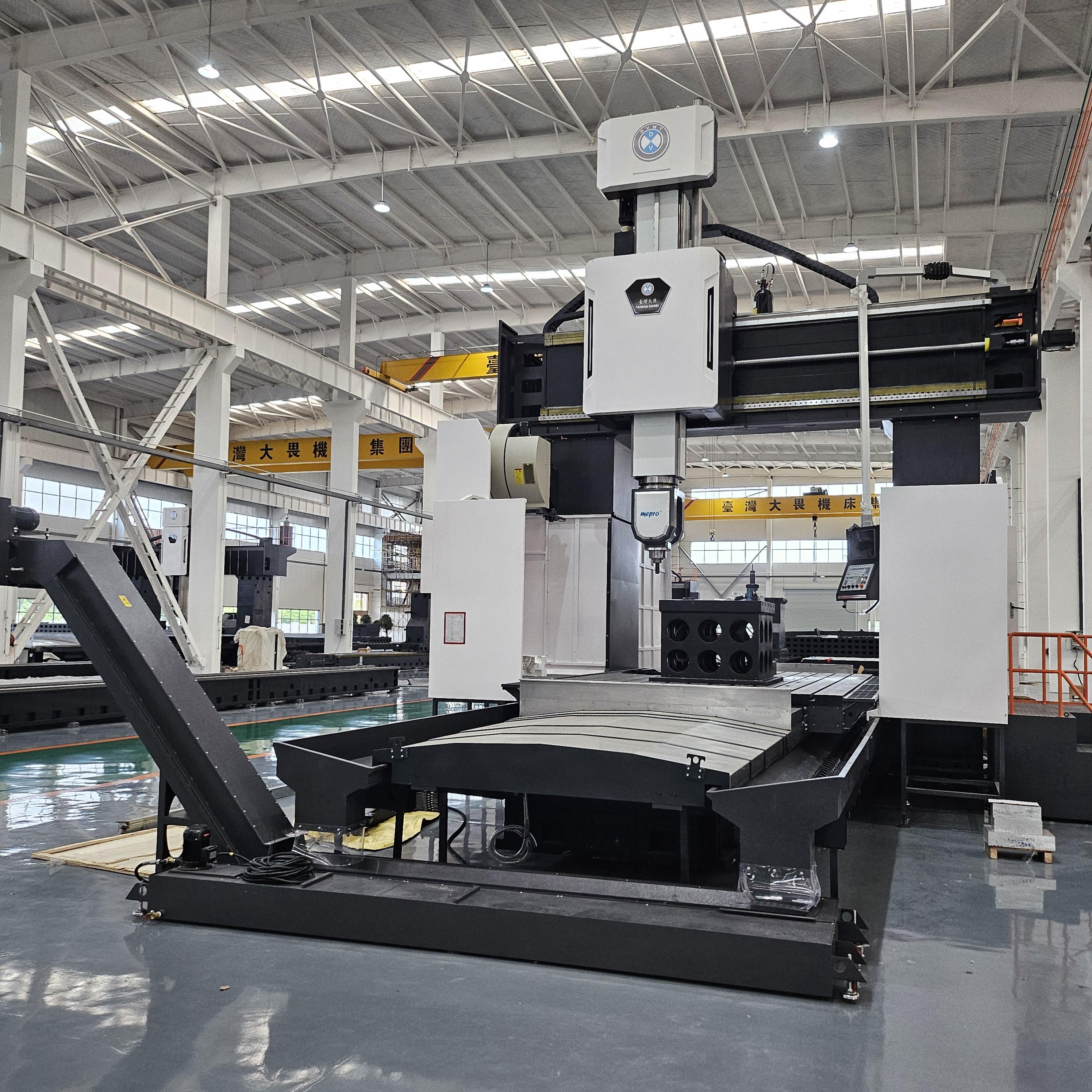

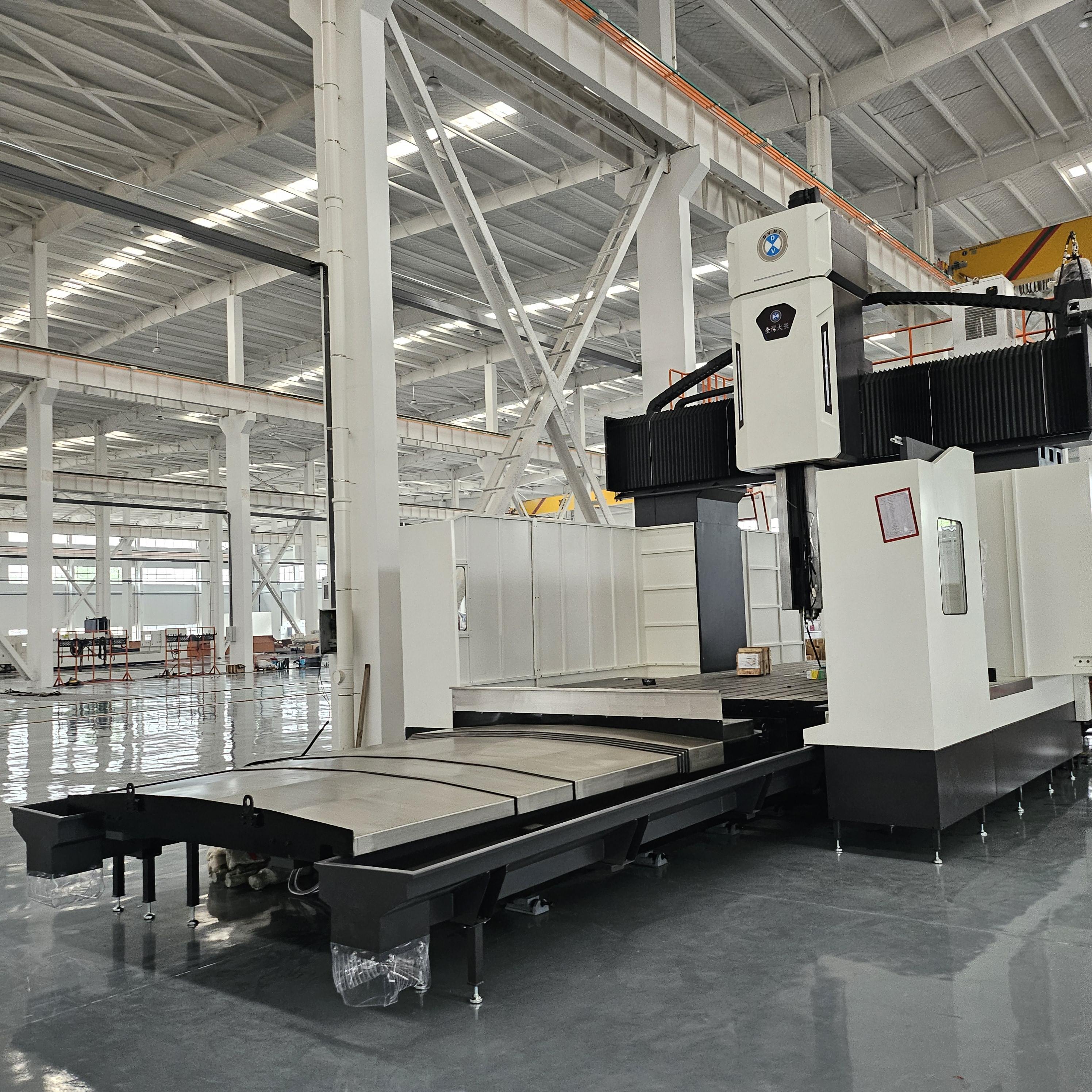

DVF6033 CNC Gantry Machining Center

Machine ModelDVF-6033
X/Y Axis Stroke (mm)6200 / 3300 (7000 optional)
Z Axis Stroke (mm)1250 [1500]
Distance between column (Longmen width) (mm)3200
SpindleBT-50
RPM3500 / 3000
Spindle Motor Power (kW)22 / 26
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

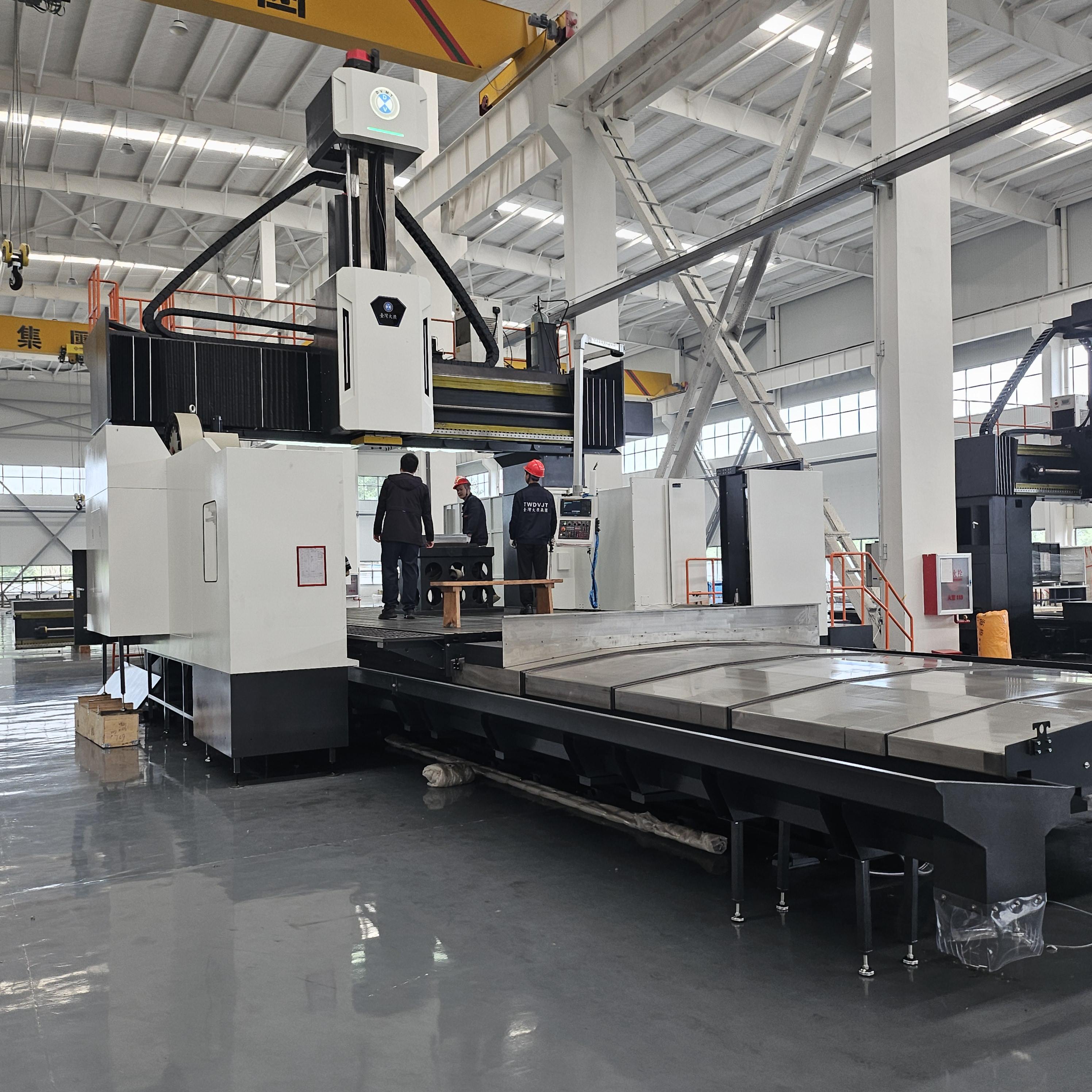

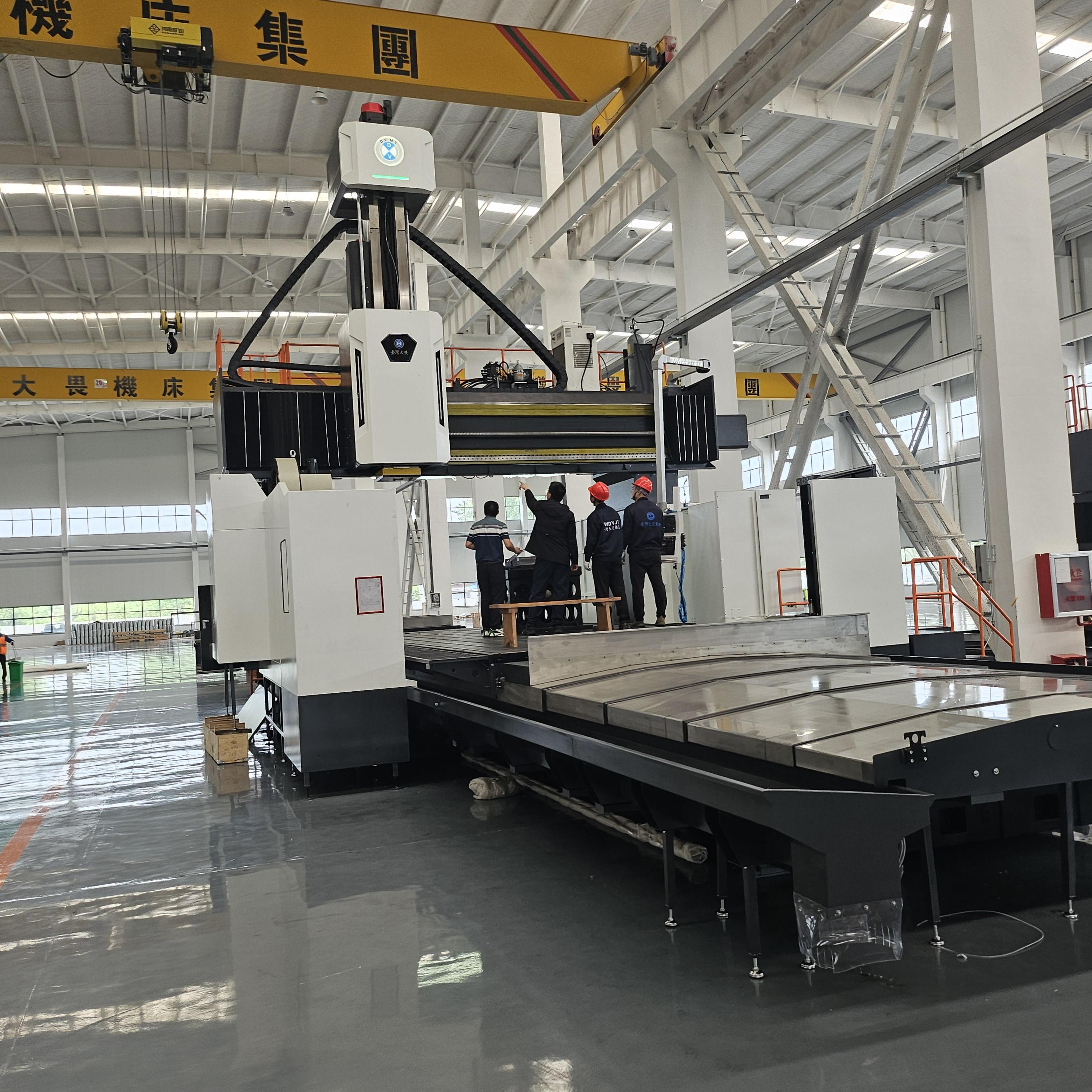

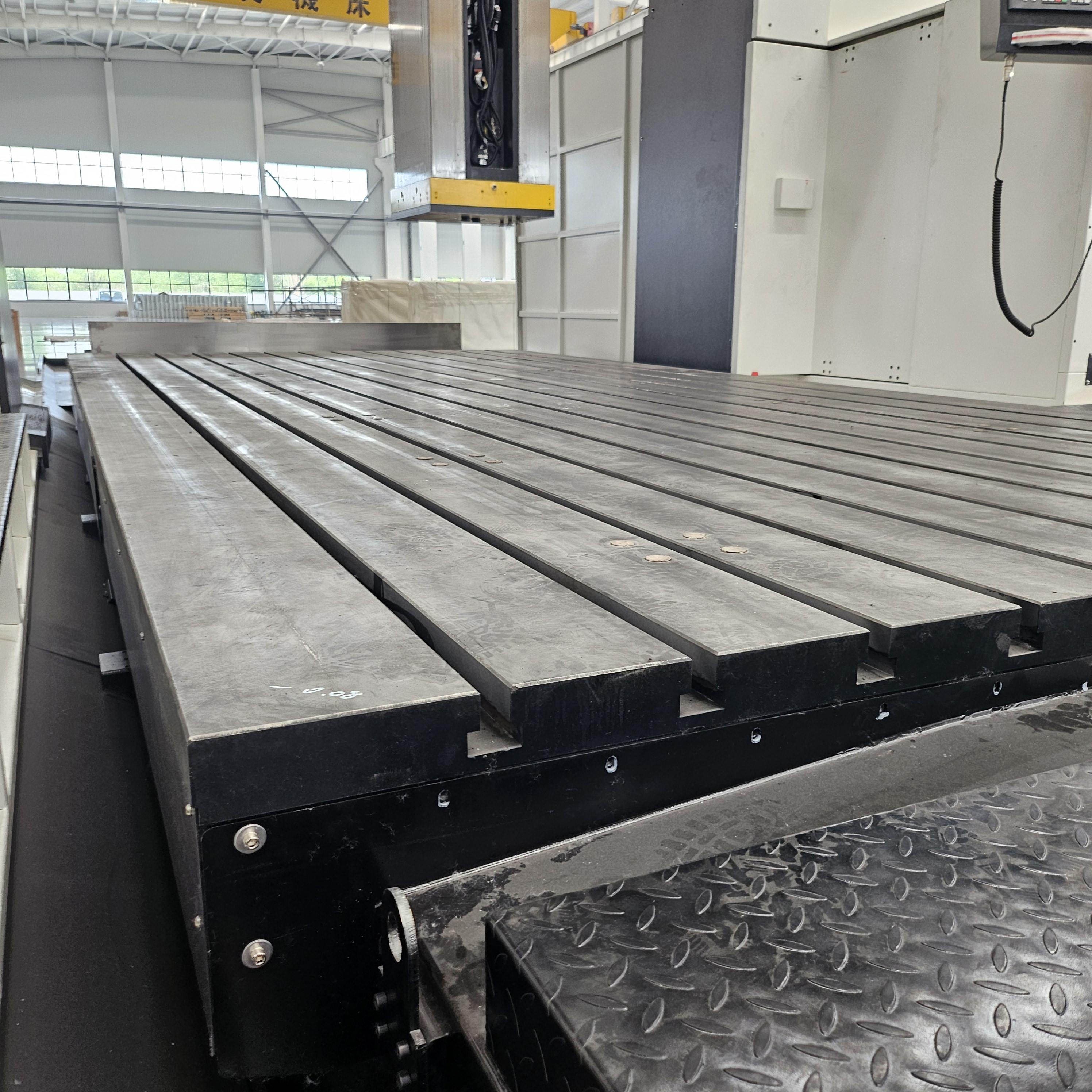

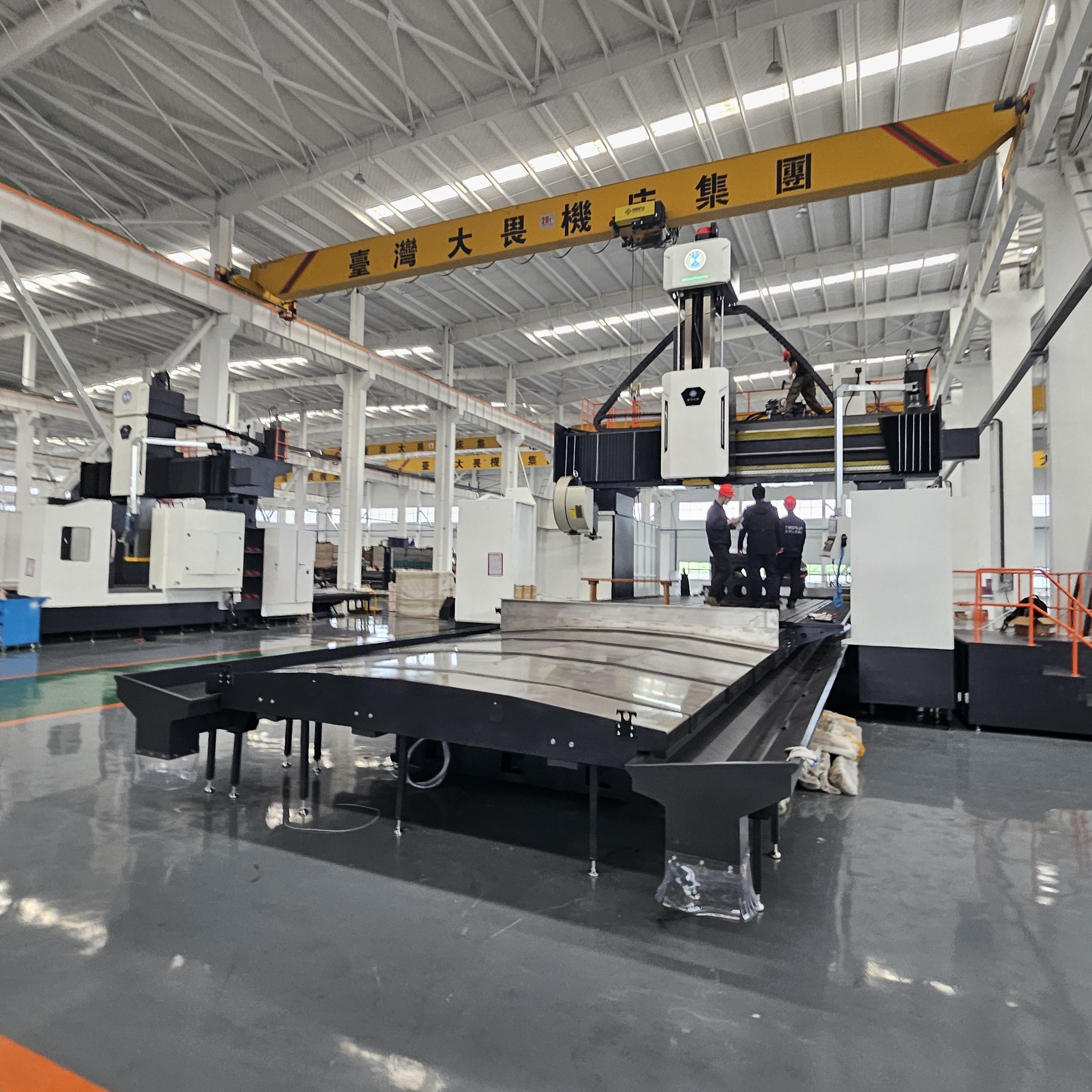

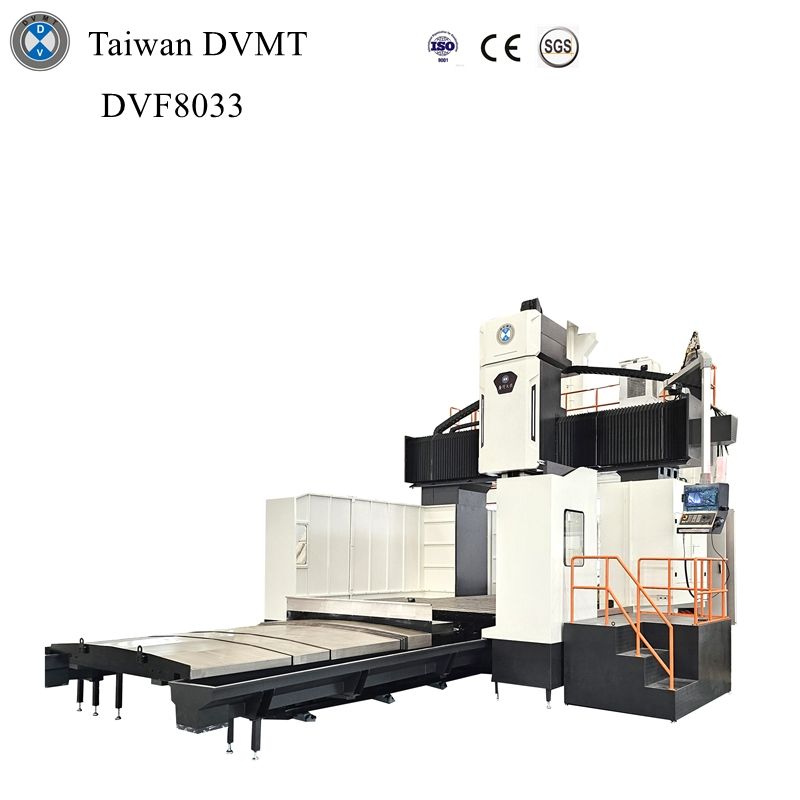

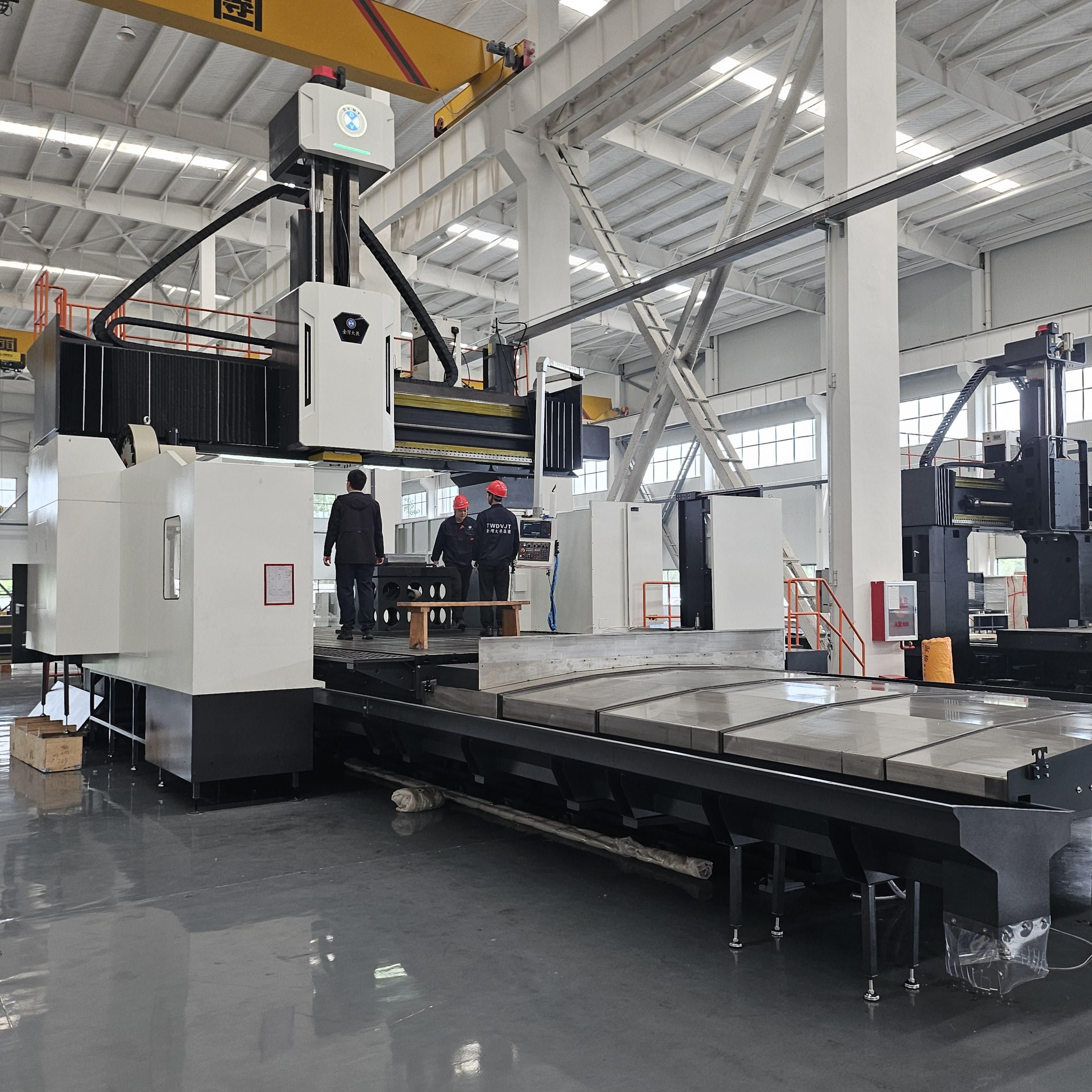

DVF8033 CNC Gantry Machining Center

Machine ModelDVF-8033
X/Y Axis Stroke (mm)8200 / 3300 (9000 optional)
Z Axis Stroke (mm)1500
Distance between column (Longmen width) (mm)3200
SpindleBT-50
Spindle Motor Power (kW)30 / 37
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

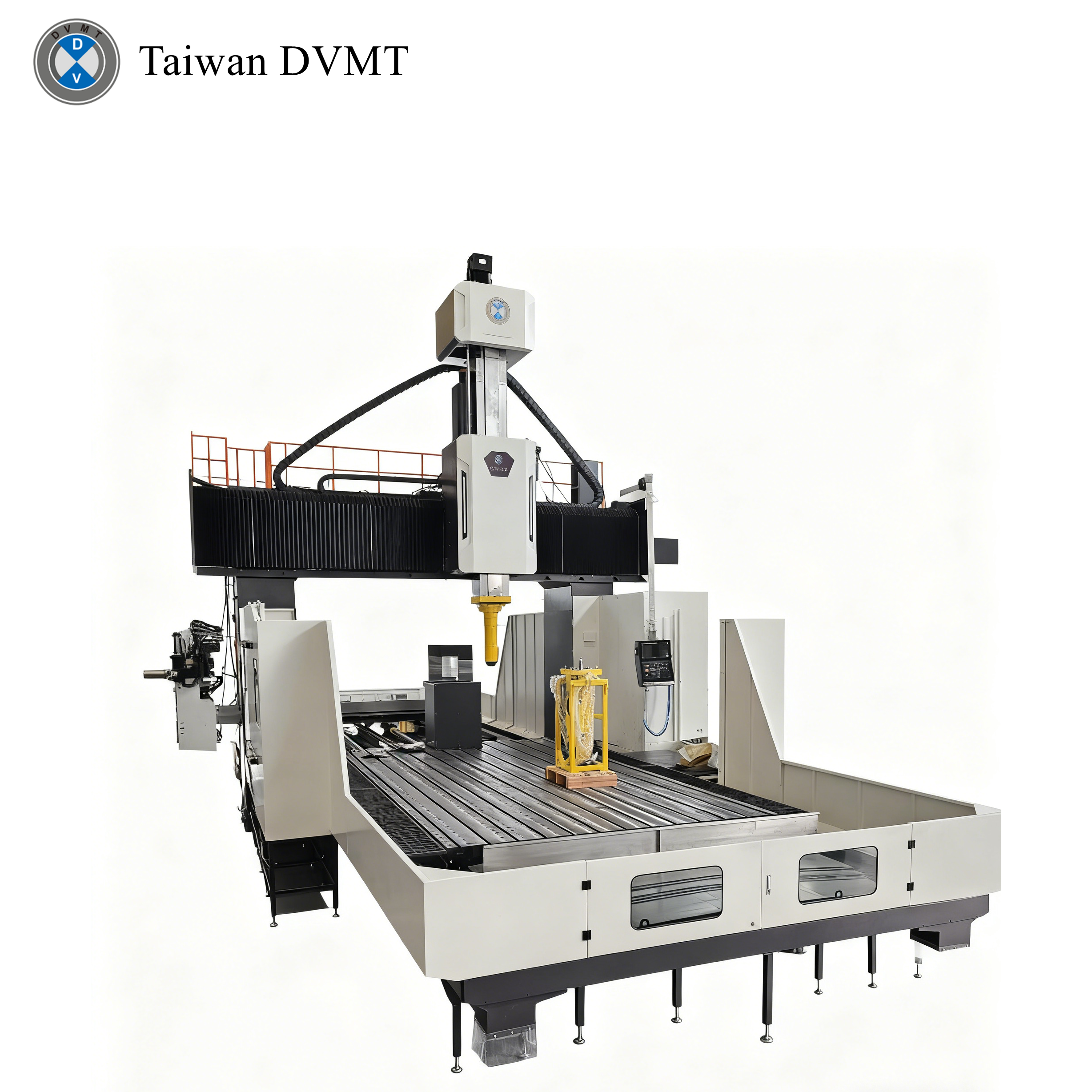

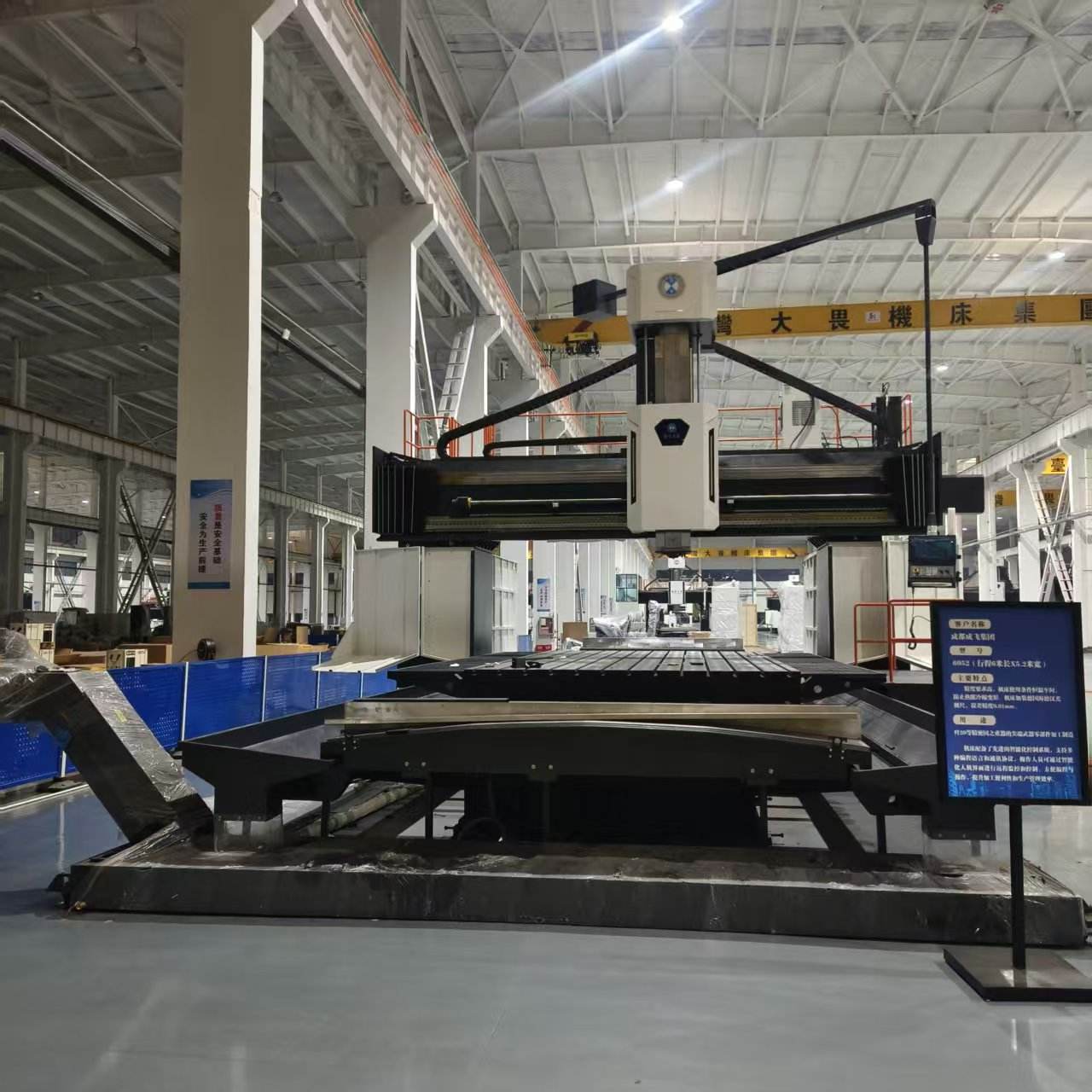

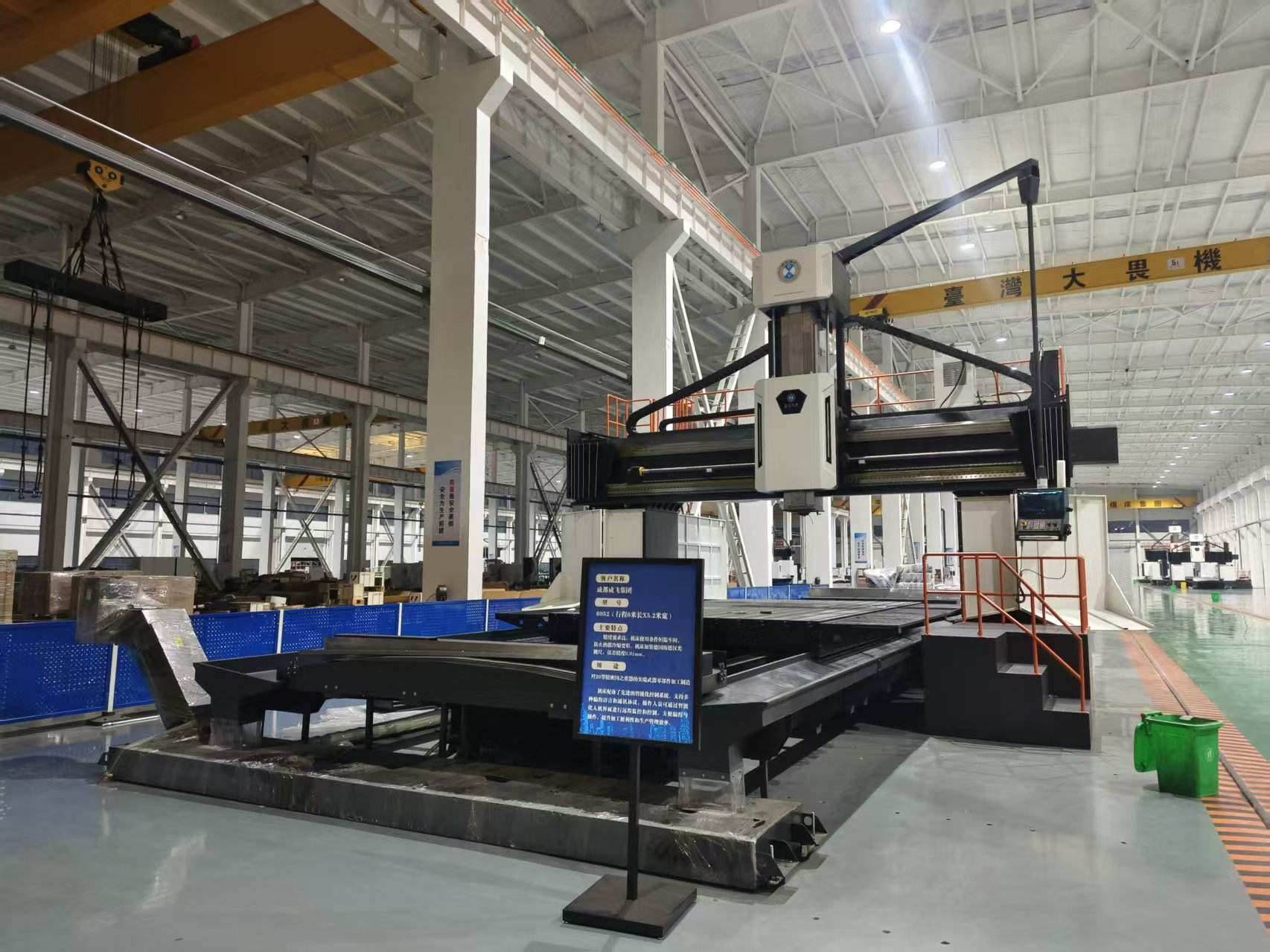

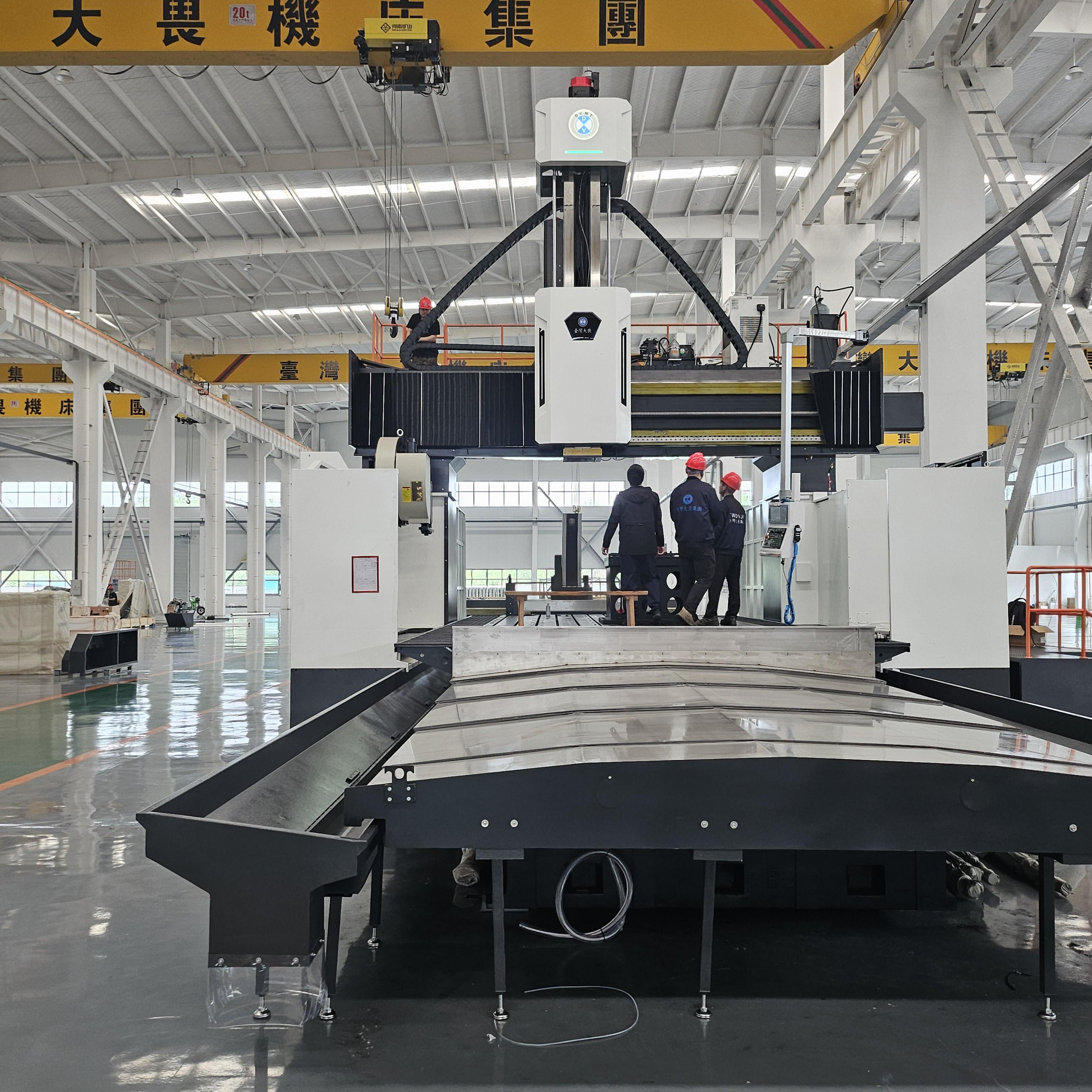

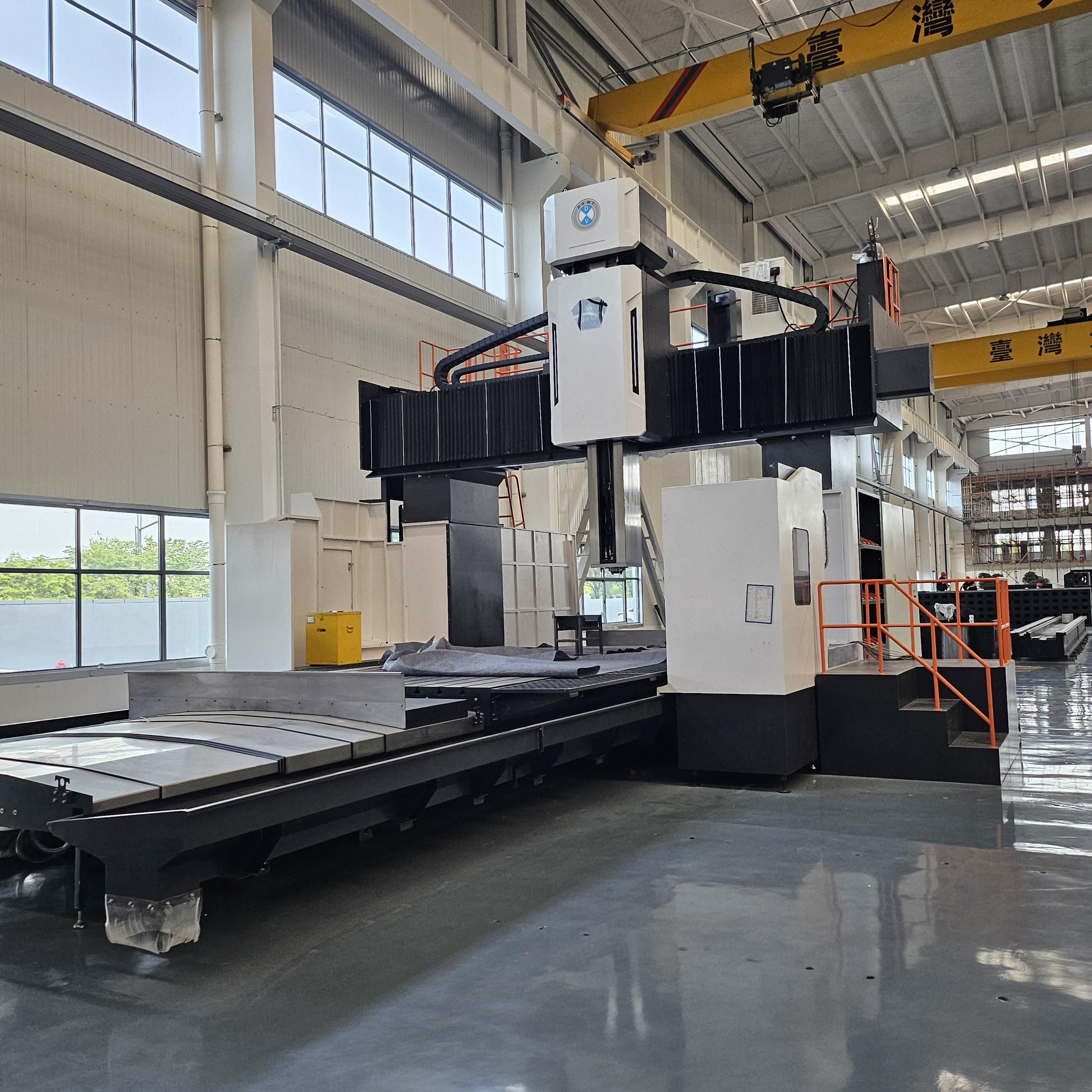

DVF8043 CNC Gantry Machining Center

Machine ModelDVF-8043
X/Y Axis Stroke (mm)8200 / 4300 (9000 optional)
Z Axis Stroke (mm)1500
Distance between column (Longmen width) (mm)4200
SpindleBT-50
Spindle Motor Power (kW)30 / 37
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE

High precision CNC gantry machining center designed for industrial applications.

Download Catalogue Contact Us

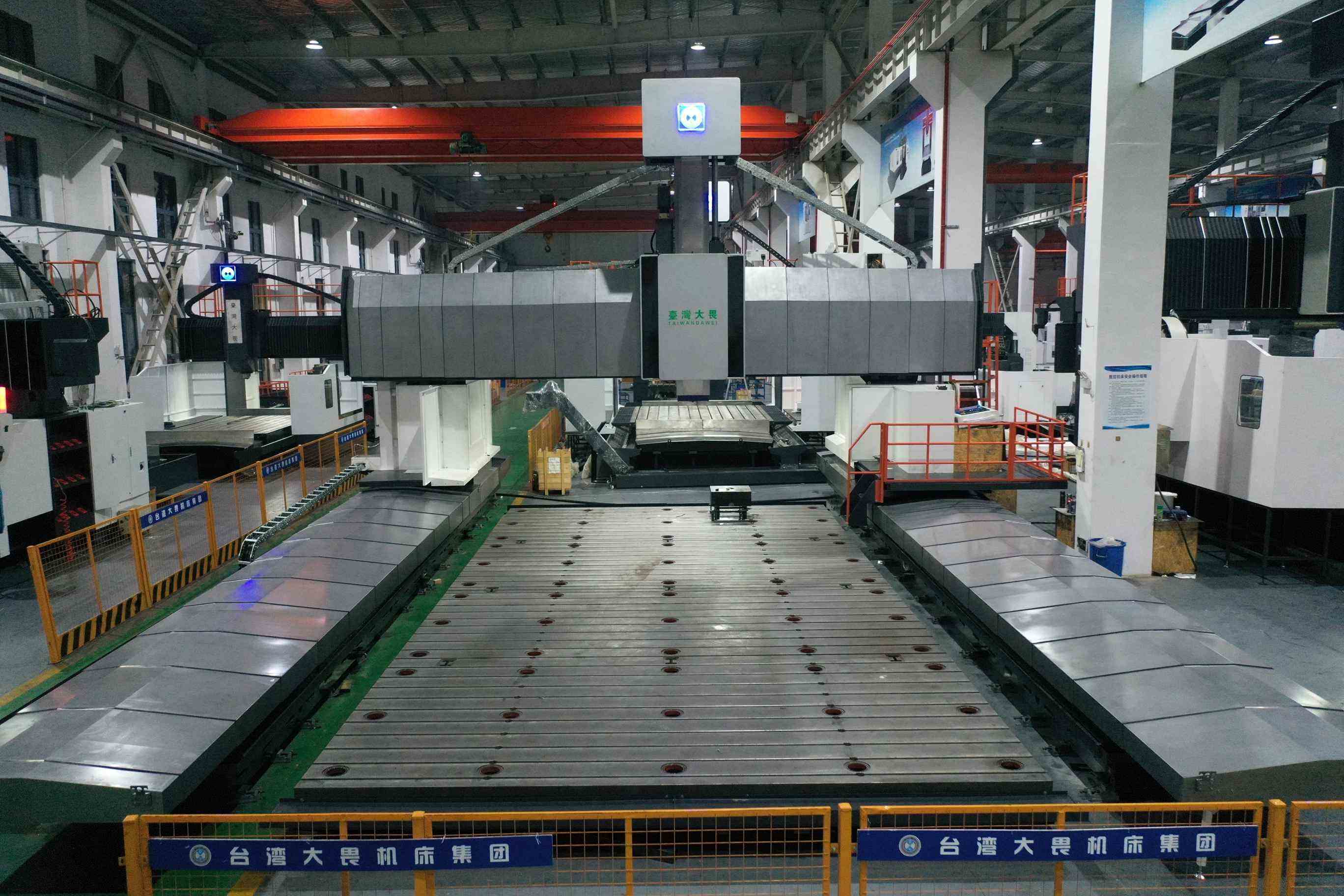

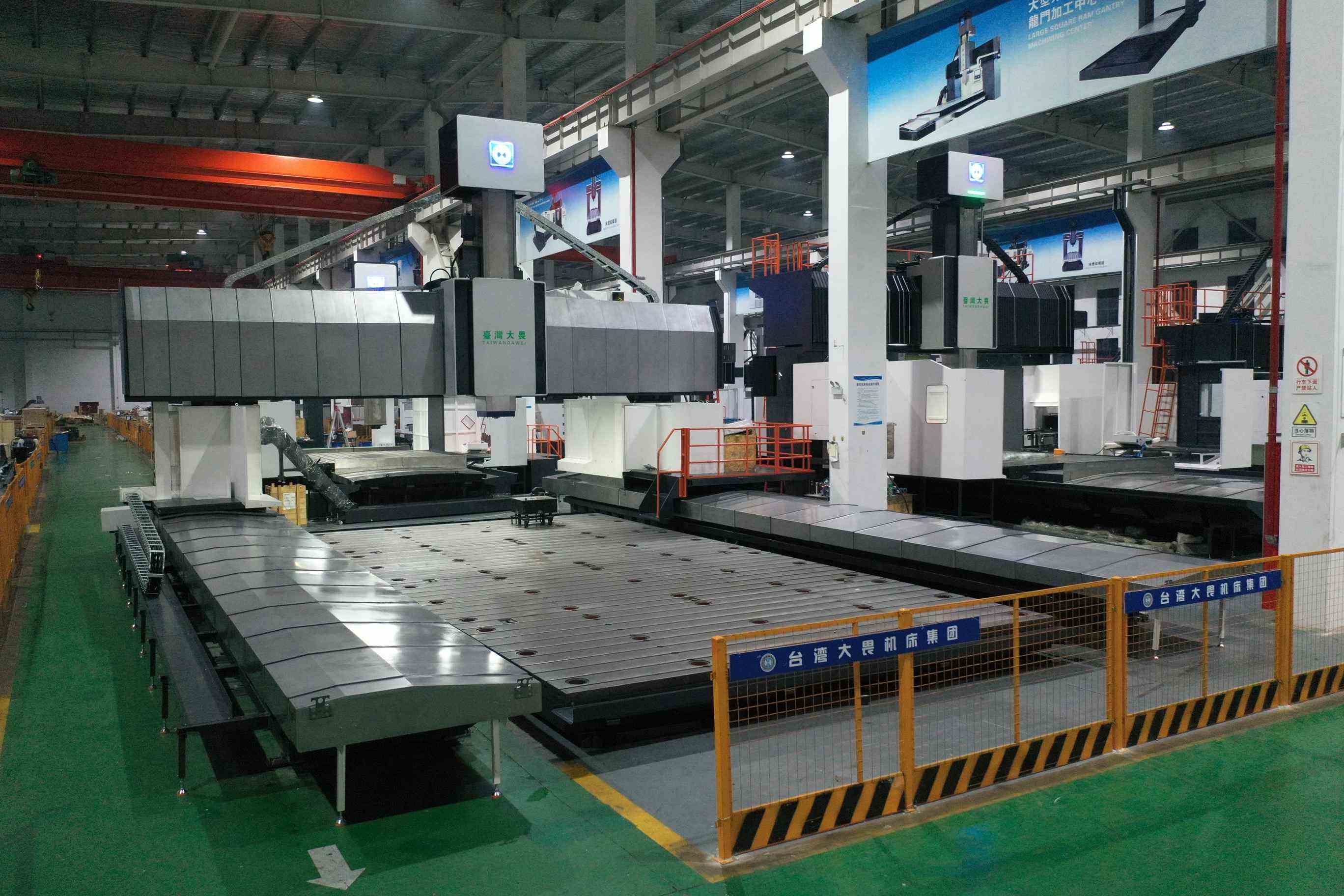

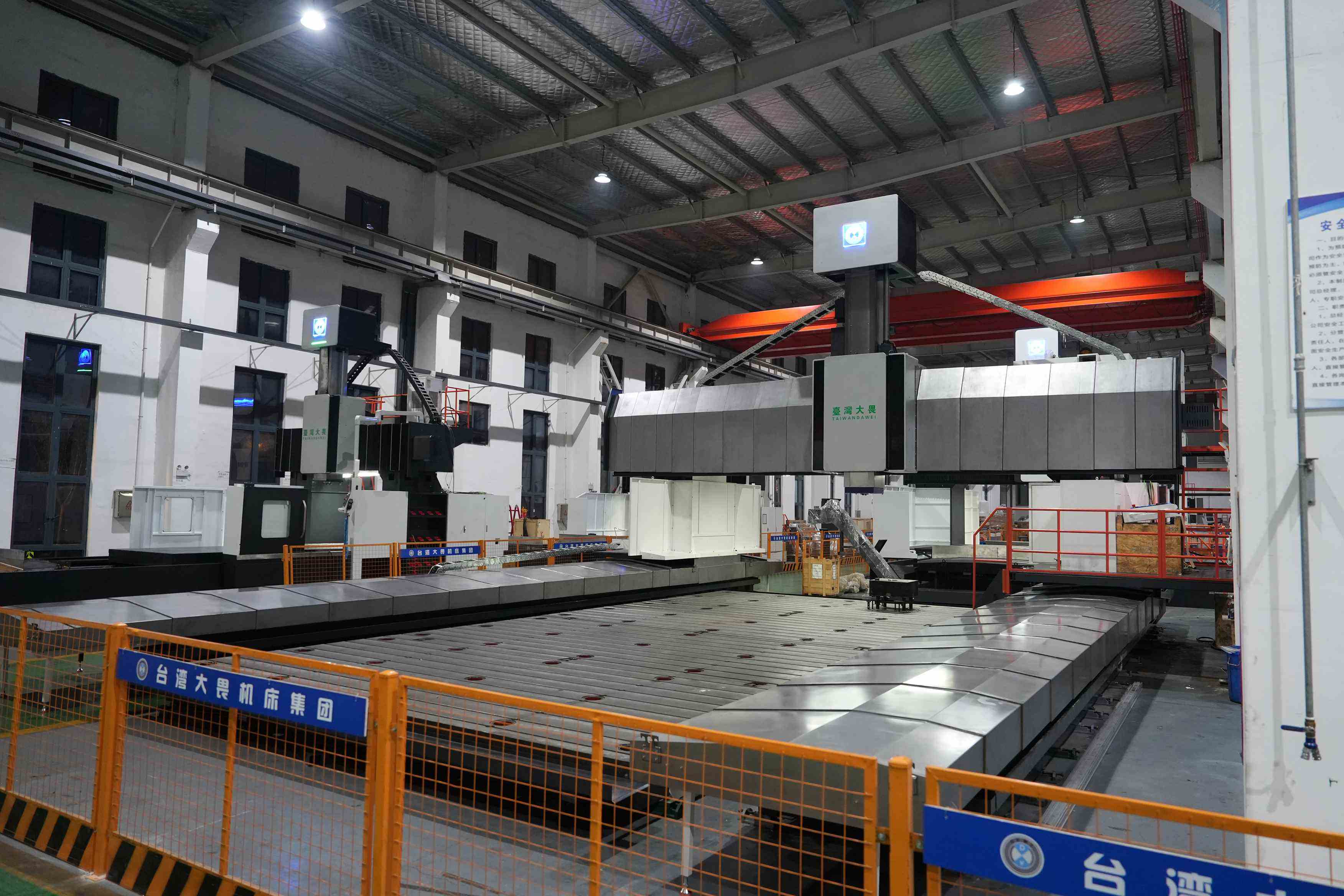

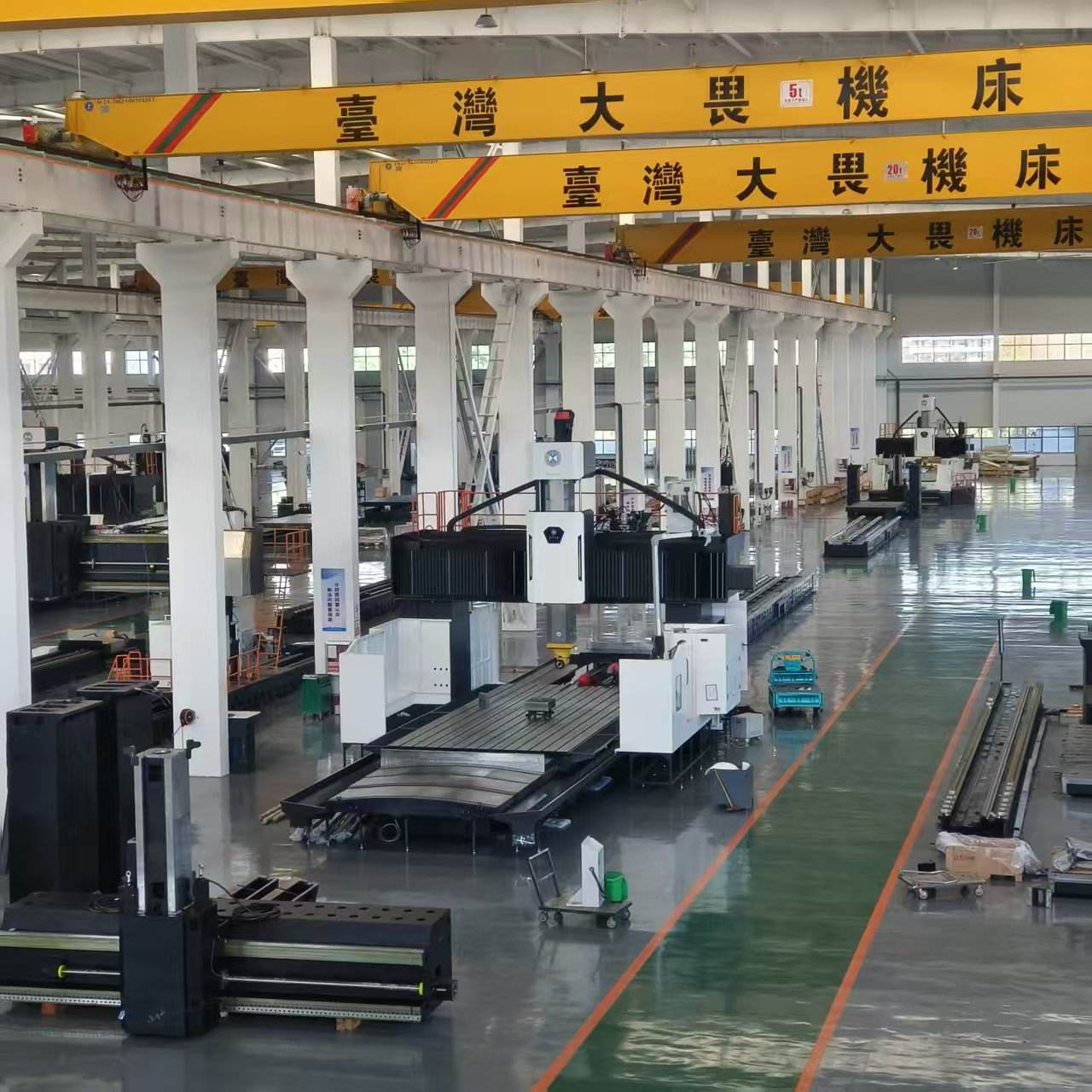

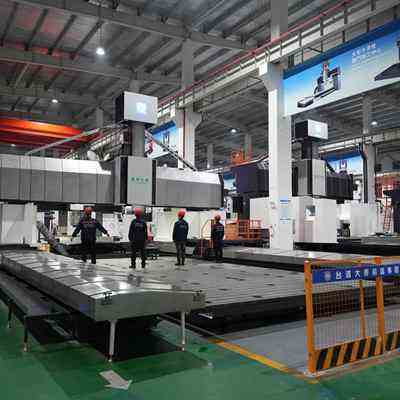

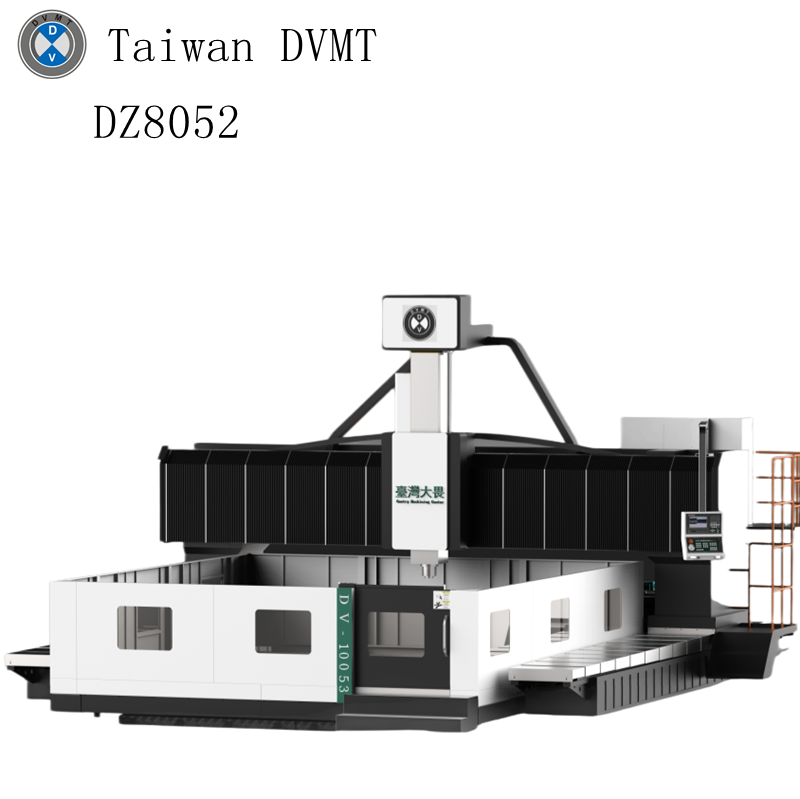

DVF8052 CNC Gantry Machining Center

Machine ModelDVF-8052
X/Y Axis Stroke (mm)8200 / 5200 (9000 optional)
Z Axis Stroke (mm)1550 / 1800
Distance between column (Longmen width) (mm)5200
SpindleBT-50
RPM3500 / 3000
Spindle Motor Power (kW)30 / 37
Standard Configuation
  • MITSUBISHI M80 CNC
  • BT-50
  • TAIWAN MAKE ARM TYPE ATC
  • SPINDLE OIL CHILLER
  • DOUBLE SCREW CHIP CONVEYOR
Optional Configuation
  • FANUC/SIEMENS/SYNTEC
  • HSK63A SPINDLE
  • BF GEAR BOX
  • ANGLE HEAD-MANUAL/UNIVERSAL/AUTOMATIC
  • LINEAR SCALE
Download Catalogue Contact Us

High precision CNC gantry machining center designed for industrial applications.
