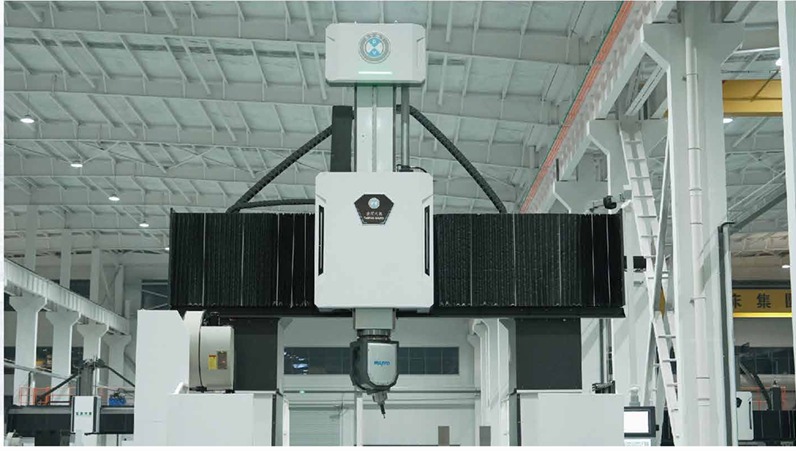

Heavy Duty High Precision Five Axis Gantry Machining Center
DVF-4033 Heavy Duty High Precision Five Axis Gantry Machining Center
| Machine Model | DVF-4033 |
|---|---|
| X/Y Axis Stroke (mm) | 4200 / 3300 |
| Z Axis Stroke (mm) | 1250 [1500] |
| Distance between column (Longmen width) (mm) | 3200 |
| Spindle | BT-50 |
| RPM | 3500 / 3000 |
| Spindle Motor Power (kW) | 22 / 26 |
Heavy Duty High Precision Five Axis Gantry Machining Center designed for industrial applications.
Download Catalogue Contact UsDVF-5043 Heavy Duty High Precision Five Axis Gantry Machining Center
| Machine Model | DVF-5043 |
|---|---|
| X/Y Axis Stroke (mm) | 5200 / 4300 |
| Z Axis Stroke (mm) | 1500 |
| Distance between column (Longmen width) (mm) | 4200 |
| Spindle | BT-50 |
| RPM | 3500 / 3000 |
| Spindle Motor Power (kW) | 30 / 37 |
Heavy Duty High Precision Five Axis Gantry Machining Center designed for industrial applications.
Download Catalogue Contact UsDVF-6048 Heavy Duty High Precision Five Axis Gantry Machining Center
| Machine Model | DVF-6048 |
|---|---|
| X/Y Axis Stroke (mm) | 6000 / 4800 (7000 optional) |
| Z Axis Stroke (mm) | 1500 |
| Distance between column (Longmen width) (mm) | 4600 |
| Spindle | BT-50 |
| RPM | Max: 3000 |
| Spindle Motor Power (kW) | 30 / 37 |
High precision CNC gantry machining center designed for industrial applications.
